A01-760-0335 Firestone Suspension Air Shock 203mm Max.Outer Diameter W21-760-0335 Rubber Air Spring

Product Description

A01-760-0335 is a specific model number of Firestone air springs, also known as bladder or air assist springs. It is designed to be added to a vehicle's existing suspension system to improve load capacity, stability, ride quality and braking. GUOMAT 2B0335 can replace Firestone A01-760-0335, the warranty period is one year, the quality is high, and it can be replaced for you to solve the suspension problem.

GUOMAT 2B0335 OEM Numbers

GUOMAT 2B0335

Replace Firestone 224

Replace Firestone A017600335

Replace Firestone A01-760-0335

Replace Firestone A01 760 0335

Replace Firestone AO17600335

Replace Firestone AO1-760-0335

Replace Firestone AO1 760 0335

Replace Firestone W21-760-0335

Replace Firestone W21 760 0335

Replace Firestone W217600335

Replace Contitech FD 200-19

Replace Contitech FD200-19

Replace Contitech FD200-19 510

Replace Contitech FD 200-19 510

Replace Contitech FD200-19510

Technical Parameters

Top plate diameter: 132mm

Top plate bolt/stud: 2x3/8-16UNC

Air Fitting: 3/8NPT

Center distance between top plate bolt/stud: 70mm

Distance between top plate bolt/stud and air hole: 33mm

Bottom plate diameter: 132mm

Bottom threaded hole: 3/8-16UNC

Distance between bottom plate threaded hole: 70mm

The rubber bellows max outer diameter: 203mm

Max. height: 230mm

Min.height: 75mm

Compression height: 155mm

Net weight: 2.1kg

Gross weight: 9.07kg

Packing size: 38*38*22(cm)

What is Their Role in American Pickup Trucks

Air springs, also known as air bags or air suspension, are a type of load support system that can be installed on American pickup trucks. These systems use inflatable bags that are mounted between the truck's frame and suspension to provide additional support for heavy loads and improve overall ride quality.

Air springs can help to level out a truck when it is loaded with cargo or pulling a heavy trailer, providing a more stable and comfortable ride. They are especially useful for trucks that are frequently used for towing or hauling, as they can help prevent bottoming out and improve handling and control while on the road.

Our Advantage

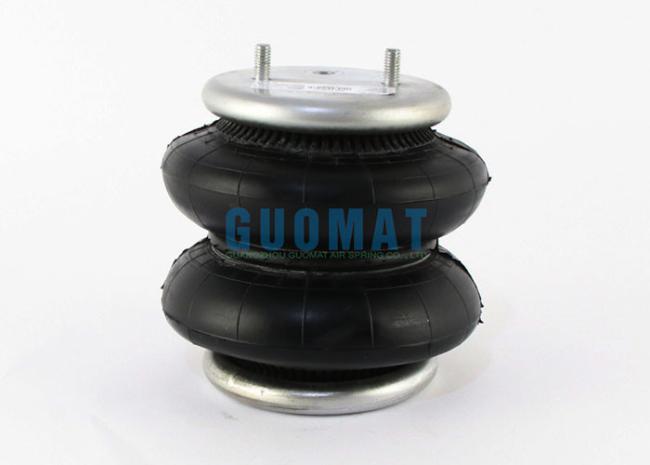

Physical Picture Display: GUOMAT 2B0335 Double Convoluted Suspension Air Spring
