FT 816-40 DS M10 Triple Convoluted Rubber Air Spring Pneumatic System 16''x3 ContiTech Air Bellows
16''x3 ContiTech Air Bellows FT 816-40 DS M10 Triple Convoluted Rubber Air Spring Pneumatic System
Product Description
Original Manufacturer: CONTITECH
Original Manufacturer Part Number: FT816-40
Original Manufacturer Part Number: FT 816-40
Original Manufacturer Part Number: FT816-40 DS
Original Manufacturer Part Number: FT 816-40 DS
Original Manufacturer Part Number: FT816-40 DS G1/2 M10
Original Manufacturer Part Number: FT 816-40 DS G1/2 M10
FT 816-40 DS Order Information
|
Order Number |
Type |
|
68051 |
Rubber bellow only |
|
68053 |
With detachable top plate and G1/2 air inlet |
Technical Data: Contitech FT816-40
Continental FT816-40 DS air spring's upper cover has a diameter of Ø310 mm, 4 M10 bolts, G1/2 air holes, and the center distance between the bolts is Ø282.5 mm. The diameter of the lower cover plate is Ø310 mm, and there are 4 M10 bolts, and the center distance between the bolts is Ø282.5 mm. The maximum outer diameter of the air spring is Ø430 mm, the required installation space is Ø455 mm, the maximum height is 550 mm, the minimum height is 120 mm, the recommended height is 475 mm, and the compressed height is 430 mm.
Cross Reference Numbers
Cross Firestone W01-R58-4068,W01R584068,W01-R58-4068,WO1-R58-4068,WO1R584068,WO1-R58-4068
Cross Dunlop 16x3,16X3,16''x3,16''X3
Cross Dunlop SP2141,SP 2141,sp2141,sp 2141
Cross Norgren M/31163,M31163,M 31163,m/31163,m31163,m 31163
Contitech Triple Convoluted Bellows
|
Model |
min.design height(in) |
max diameter (in) |
max stroke (in) |
force at p=116psi |
connection part variant |
|||
|
min.height(lb) |
half stroke(lb) |
max.stroke(lb) |
||||||
|
FT 22-6 DI CR |
2 3/4x3 |
3.54 |
3.15 |
2.36 |
606.98 |
449.62 |
179.85 |
1 |
|
FT 44-15 DI CR |
4 1/2x3 |
3.54 |
4.92 |
4.33 |
1551.18 |
1011.64 |
517.06 |
2 |
|
FT 76-20 DI CR |
6x3 |
3.94 |
6.89 |
7.48 |
3304.69 |
1978.32 |
786.83 |
3 |
|
FT 76-20 DS CR |
6x3 |
3.74 |
6.89 |
7.48 |
3304.69 |
1978.32 |
786.83 |
4 |
|
FT 138-26 DS |
8x3 |
3.94 |
9.06 |
9.84 |
5530.30 |
3349.68 |
1551.18 |
4 |
|
FT 210-32 DS |
10x3 |
3.94 |
10.63 |
12.99 |
7935.75 |
4451.22 |
1775.99 |
4 |
|
FT 412-32 DS |
12x3 |
3.94 |
12.99 |
12.99 |
12274.57 |
7800.87 |
3574.46 |
4 |
|
FT 614-32 DS |
14x3 |
3.94 |
15.75 |
14.96 |
17782.38 |
12004.80 |
4316.33 |
4 |
|
FT 816-40 DS |
16x3 |
4.72 |
16.93 |
16.93 |
19266.12 |
13488.53 |
5507.82 |
4 |

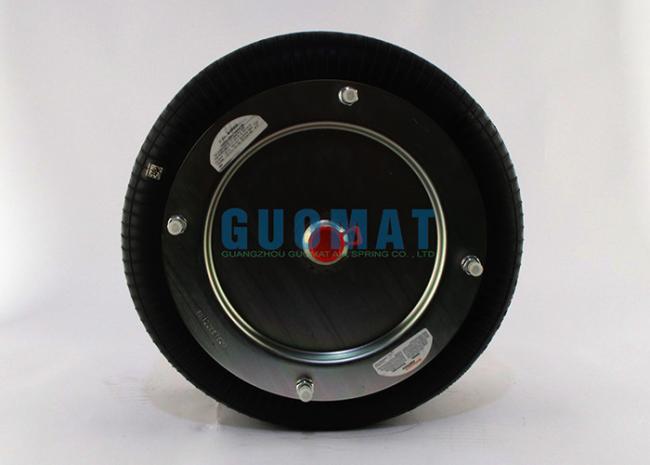

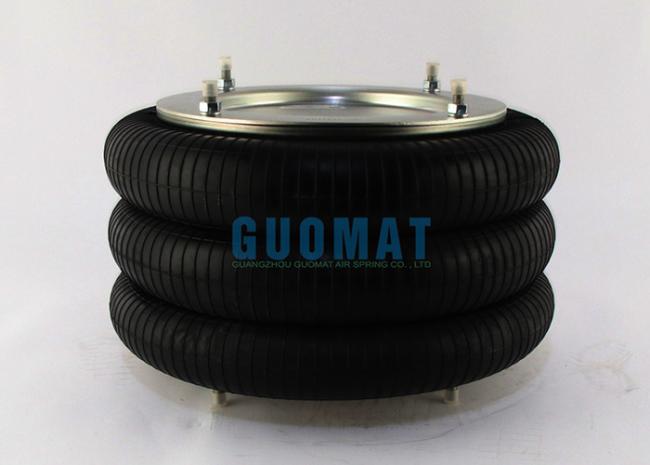

Real Pictures
