Original Rubber Air Spring Continental Contitech FD 614-26 DS G 1/2 For Pneumatic
Original Factory Continental Contitech FD 614-26 DS G 1/2 Rubber Air Spring For Pneumatic Applications
Product Description
Manfacturer: Continental Contitech
Continental Contitech Part Number: FD 614-26 DS
Continental Contitech Part Number: FD 614-26 DS G1/4
Continental Contitech Part Number: FD 614-26 DS G1/4 M10
Continental Contitech Part Number: FD 614-26 DS 68046
Continental Contitech Bellow Number: FD 614-26 / FD614-26 / FD61426
The FD 614-26 is an air spring manufactured by ContiTech, which is a leading company in the production of air springs, air actuators, and air spring systems. The FD 614-26 is a double convolution air actuator that is designed for use in pneumatic applications.
Technical Data: FD614-26 Contitech Air Spring
Diameter of the top cover: 310mm
Screw specification: M10
Number of screws: 4
Air hole specification: G1/2
Position of the air hole: in the center of the cover plate
Center distance between screws: 282.5mm
Diameter of bottom cover: 310mm
Screw specification: M10
Number of screws: 4
Center distance between screws: 282.5mm
Maximum outer diameter: 400mm
Required installation space: 425mm
Maximum height: 340mm
Minimum height: 75mm
Natural height: 250mm
Cross References and OEM References
|
Firestone |
W01R584064 / W01 R58 4064 / W01-R58-4064 |
|
Firestone |
WO1R584064 / WO1 R58 4064 / WO1-R58-4064 |
|
Dunlop |
14''1/2x2 / 14 1/2x2 / 14.5x2 / SP1556 |
|
Norgren |
M/31142 / M 31142 / M31142 |
|
Parker |
9109061 |
Weweler USN 510010DX
Gigant 881205
Firestone 14.5x2
Firestone W01-R58-4064
DUNLOP FR, SP 1556
NORGREN, M/31142 (141/2x2)
PARKER 9109061
Contitech Double Convoluted Air Bellow
|
Part Number FD 22-4 DI G1/4 CR FD 44-10 DI G3/8 CR FD 76-14 DI G1/2 CR FD 76-14 DS G1/2 CR FD 138-18 DS G1/2 FD 209-21 DS G1/2 FD 210-22 DS G1/2 FD 412-18 DS G1/2 FD 614-26 DS G1/2 FD 816-30 DS G1/2 |
Contitech Order Number 69341 70206 69838 70215 66505 50774 67403 66334 68046 68052 |
FD 614-26 Industrial Air Spring Applications and Uses
The FD 614-26 Contitech air spring is commonly used in various industrial applications that require pneumatic actuation and suspension systems. Some of the typical applications include:
- Machinery and equipment suspension systems
- Vehicle suspension systems
- Pneumatic control systems
- Material handling equipment
- Heavy-duty trucks and trailers
These references indicate that the FD 614-26 air spring can be used as an alternative or equivalent to the air springs listed.

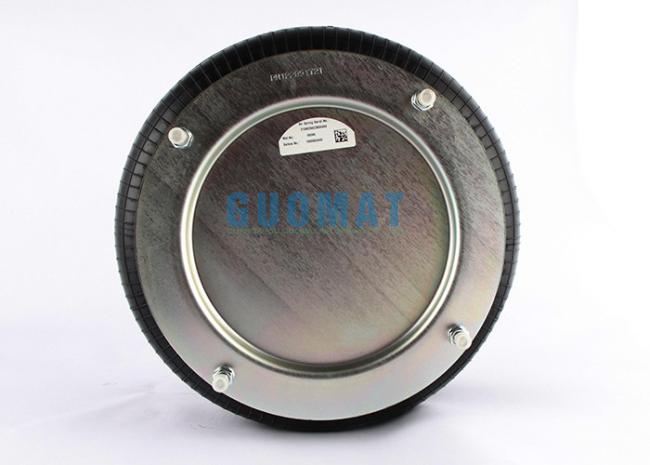

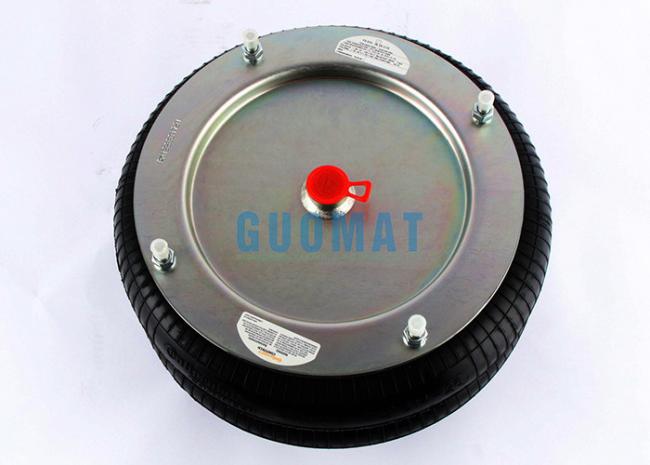

The Real Pictures
