GUOMAT Durable Airbag 6X1 Replace M/31061 NORGREN Single Convoluted Lifting Air Spring

Product Description

GUOMAT Number: 6X1

Contitech Number: FS76-7

Contitech Number: FS 76-7

Contitech Number: FS76-7 1/2 M10

Contitech Number: FS 76-7 1/2 M10

Contitech Number: FS76-7 DS CR

Contitech Number: FS76-7DSCR

Contitech Number: FS 76-07 DS G1/2 CR

Firestone Number: W01-R58-4052

Firestone Number: W01 R58 4052

Firestone Number: W01R584052

Firestone Style: 6''x1 / 6''X1 / 6X1

Dunlop FR Number: SP153

Dunlop UK(Pneuried): PNP 30551 01 13

Dunlop UK(Pneuried): PNP305510113

Norgren Number: M/31061

Norgren Number: M 31061

Norgren Number: M31061

Norgren Ø (inch) x convolutions: 6X1 / 6''X1

Technical Data: GUOMAT 6X1 Flange Air Spring

The diameter of the top cover of the air spring is 183.5 mm, the specification of the air hole is G1/2, the specification of the screw rods is 4 M10, and the center distance between the screw rods is 155.5 mm.

The diameter of the air spring bottom cover is 183.5 mm, the specification of the screw rods is 4 M10, and the center distance between the screw rods is 155.5 mm.

The natural outer diameter of the air spring is 205 mm, and the natural height is 130 mm

The Role of Industrial Air Springs

Industrial air springs play an important role in various applications , particularly in the transportation and machinery industries. They are designed to absorb vibration and provide support and stability in suspension systems. Here are some key roles of industrial air springs:

• Vibration Absorption: Industrial air springs are used to reduce and absorb vibrations in machinery and vehicles. By utilizing the elasticity of air, they can effectively dampen vibrations and minimize the transmission of vibrations to the surrounding components or structures.
• Load Support: Air springs are often used to support heavy loads in vehicles and machinery. They can help distribute the weight evenly and provide a stable and controlled suspension system. By adjusting the air pressure, the load-carrying capacity of the air springs can be optimized to match the specific requirements of the application.
• Flexibility and Durability: Industrial air springs are designed to be flexible and durable , capable of withstanding heavy loads and harsh operating conditions. They are often made from high-quality rubber or elastomer materials that can withstand compression, stretching, and repeated cycles of pressure changes without losing their performance or structural integrityFi

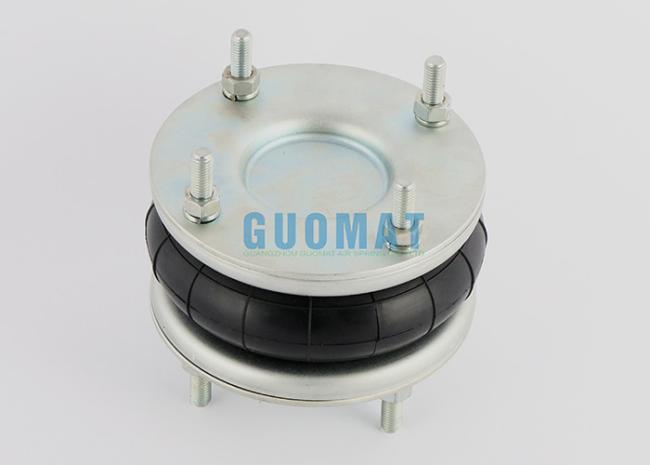

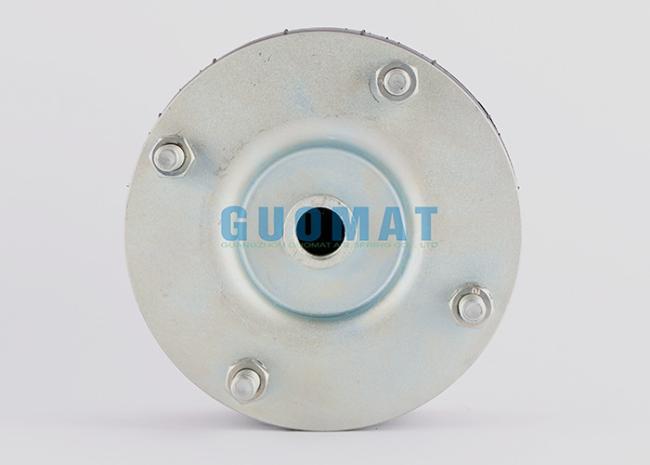

The Real Pictures
