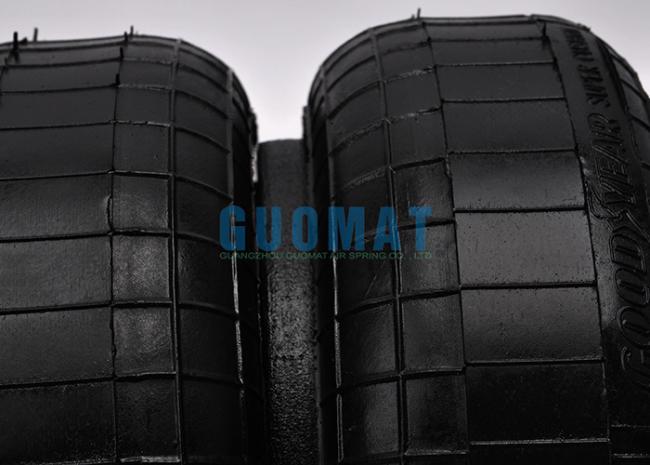

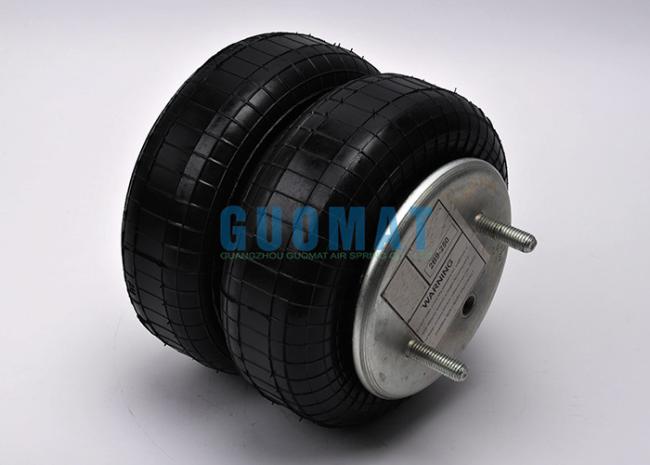

OEM Goodyear Air Spring Bellows 2B9-250 Double Convoluted Air Super Cushion 578-92-3-206

OEM Goodyear Air Spring Bellows 2B9-250 Double Convoluted Air Super Cushion 578-92-3-206

Product Description

The 2B9-250 Goodyear air spring is an air spring or bladder used in vehicle suspension systems. It is designed to provide support and cushioning to the vehicle, helping to absorb shock and vibration while improving ride comfort and stability. 2B9-250 Goodyear air springs can also be installed in industrial equipment to reduce vibration and noise generated by machines.

Manufacturer: GOODYEAR
Manufacturer part number: Goodyear 2B9-250
Manufacturer part number: Goodyear 2B 9-250
Manufacturer part number: Goodyear 2B9 250
Manufacturer part number: Goodyear 2B 9 250
Manufacturer part number: Goodyear 2B9250
Manufacturer bellows number: Goodyear 578923206
Manufacturer bellows number: Goodyear 578 92 3 206
Manufacturer bellows number: Goodyear 578-92-3-206

2B9-250 Goodyear Air Spring is Cross-referenced with the Following Numbers


Technical Data: 2B9-250 Goodyear Air Spring
Top cover diameter: 6.40 inches
Air inlet specification: 1/4 NPTF
Bolt or Stud: 1/2-13 or 1/2-20
Distance between air hole and stud: 1.75 inches
Center distance between studs: 3.50 inches
Bottom cover diameter: 6.40 inches
Tapped Hole: 1/2-13
Maximum height: 12.2 inches
Minimum height: 3.5 inches

Applications of 2B9-250 Goodyear Air Spring

Trucks: It is commonly used in trucks, especially in the suspension systems of heavy-duty trucks and semi-trailers. The air spring helps to improve ride comfort and stability, particularly when carrying heavy loads.

Trailers: The 2B9-250 Goodyear Air Spring is often used in the suspension systems of trailers, including flatbed trailers, container trailers, and other types of hauling trailers. It helps to distribute weight evenly and minimize vibrations during transport.

Buses: Many buses, including city buses and intercity coaches, use air springs in their suspension systems. The 2B9-250 Goodyear Air Spring can be found in these applications, providing a smoother and more comfortable ride for passengers.

Industrial Equipment: The 2B9-250 Goodyear Air Spring is also used in various types of industrial equipment, such as construction machinery, agricultural equipment, and off-road vehicles. It helps to absorb shocks and vibrations, improving the overall performance and durability of these machines.
