W01-358-7094 Firestone Suspension Air Shock AS-4538 Triangle Trailer Air Spring


Product Description

GUOMAT air springs can provide replacement springs for almost every air suspension system on the market today. Air springs are designed to improve your truck’s air suspension, reduce downtime and increase productivity.

Cross References

Firestone W01-358-7094,Firestone W01 358 7094,Firestone W013587094,Firestone WO1-358-7094,

Firestone WO1 358 7094,Firestone WO13587094,Firestone 113-1,FleetPride AS7094,Taurus 6326
Triangle AS-4538 ,TRPAS70940

Technical Data : GUOMAT 1B7094

Top cover diameter: 289mm
Air connection specification: 3/4NPT
Threaded hole on top cover: 4X3/8-16UNC
Center distance between threaded holes on top cover: 158.8mm
Bottom cover diameter: 289mm
Threaded hole of bottom cover: 4X3/8-16UNC
Center distance between bottom cover threaded holes: 158.8mm
Maximum outer diameter of air spring: Max.386mm
Stroke: minimum 68mm-maximum 140mm

Appearance or Condition
• Rubber bellows distorted and girdle hoop torn loose
Possible Causes
• Running at extended positions with low-air pressure

Appearance or Condition • Off-center bumper contact
• Same as abrasion or bottoming out
Possible Causes
• Worn bushing
• Improper suspension installation

Appearance or Condition
• Bead plate concave
• Internal bumper loose
• Hole in girdle hoop area (convoluted)
• Hole in bead plate junction area
• Leaking around blind nuts
Possible Causes
• Broken or defective shock absorber
• Defective leveling valve
• Overloaded vehicle
• Pressure regulator set too low
• Wrong air spring (too tall)

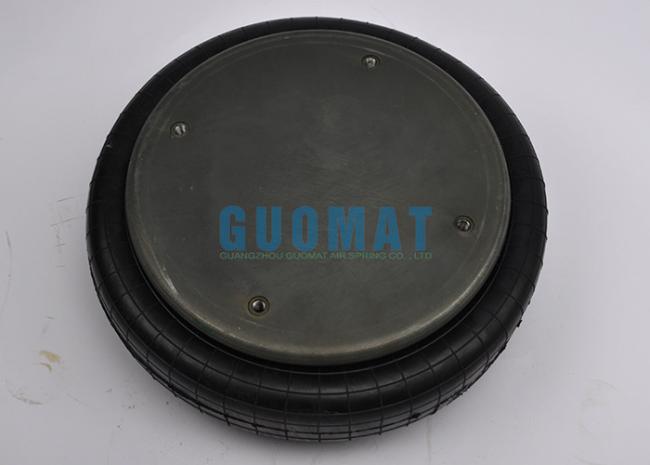

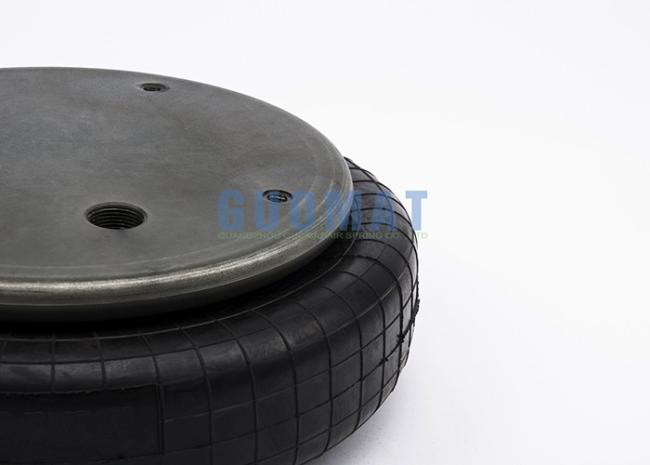

The Real Pictures
