Natural Rubber FT330-29 546 Contitech W01-358-7994 Firestone Triple Convoluted Air Spring Assembly


Product Description

GUOMAT 3B7994 Technical Data

Cover diameter: 231mm
Combo stud specifications: 1/4NPTF, 3/4-16UNF
Threaded hole specification of top cover: 3/8-16UNC
The distance between the threads of the top cover and the Combo stud: 140mm
Threaded hole specifications of the bottom cover: 2X3/8-16UNC
The center distance between the threaded holes of the bottom cover: 157.5mm
Maximum height: 460mm
Minimum height: 130mm
Compression height: 330mm

Suspension Air Spring
A suspension air spring is a component of an air suspension system used in various vehicles, including machines, automobiles, and buses . It is designed to provide load-carrying support and shock absorption, offering a smoother and more comfortable ride

An air spring consists of a rubber and fabric container that resembles an automobile tire or multiple tires stacked on top of one another. This container holds a column of air, which can be compressed or expanded to adjust the vehicle's height and maintain a fixed height regardless of the load .

The air spring system typically includes an air compressor, an air-supply tank, leveling valves, check valves, bellows, and connecting piping . The check valves allow additional air to enter the bellows from the air-supply tank when the load increases, while the leveling valves vent excess air from the bellows when the vehicle rises due to unloading .

Air suspension systems with air springs offer benefits such as improved ride quality, load-leveling capabilities, and the ability to adjust the vehicle's height for different driving conditions . They are commonly used in luxury cars, heavy-duty trucks, and recreational vehicles.

Overall, suspension air springs play a crucial role in providing a comfortable and stable ride by absorbing shocks and supporting the vehicle's weight.

Product Specs for Firestone W01-358-7994
Compressed Height: 5.10 inches
Top Plate Number:3210
Top Plate Width:9.00 inches
Piston Number:3183
Piston Width:9.00 inches
Firestone Bellows Number:38
Watson & Chalin #:AS-0019-1F
UPC: 767555061299
MPN: W013587994

Firestone: W01 358 7994

Firestone: W01-358-7994

GUOMAT 3B7994 replacement air spring W01-358-7994 improves your truck's air suspension and for less downtime and greater productivity. Replaces Watson & Chalin AS-0019-1F. Firestone bellows number 38.

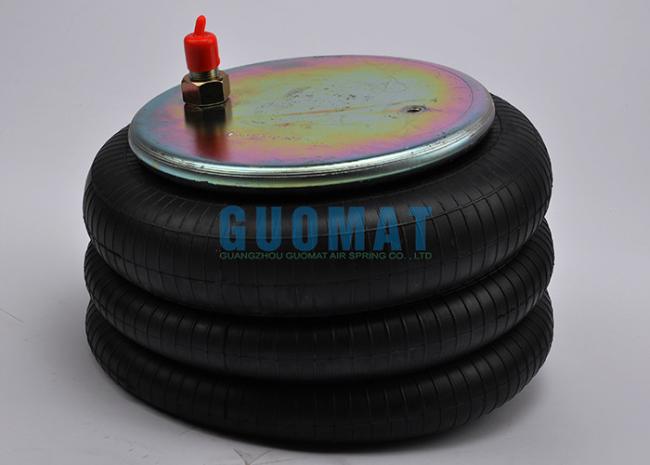

GUOMAT NO.3B7994 Triple Convoluted Suspension Air Spring
