FD76-14 DI CR Single Convoluted Air Spring Bellows Contitech Flange Air Balloon


Product Description

FD 76-14 DI CR is a type of air actuator or air spring. It is a double convolution air actuator used in various applications. Here are some key details about FD 76-14 DI CR:

It is a double convolution air actuator with a CR (rubber bellows) construction .
The air inlet size is G1/2 .
It has a maximum operating pressure of 120 psi.
The stroke length is 80mm.
The installation height ranges from 80mm to 195mm.
It operates with compressed air, non-lubricated, and is single-acting.
The operating temperature range is -40°C to +70°C.

ContiTech: FD 76-14 1/2 M10
ContiTech: FD 76-14 DS G1/2
ContiTech: FD 76-14 DS G1/2 CR
ContiTech: FD 76-14 DS CR G1/2
ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR
ContiTech Bellow: FD 76-14 / FD76-14 / FD7614

Cross Reference
Norgren: PM/31062 / PM 31062 / PM31062
Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2
Dunlop FR: SP1482
Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112
Double Convoluted Air Spring 2B180-115 D185
Double Convoluted Air Spring 2B180-115 D185

Technical Data

Industrial Air Spring

The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.

1. The products features low cost, wide use and easy operation.

2. It achieves long service life, and requires no maintenance and lubrication.

3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.

4. It comes with no friction and soft medium.

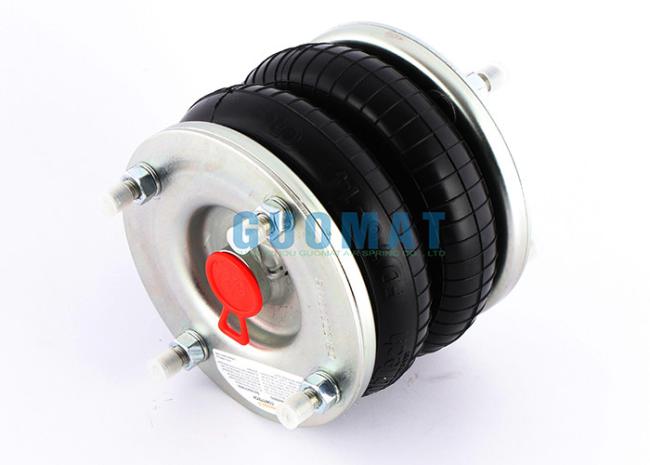

FD76-14 CR G1/2 Double Convluted Contitech Air Spring
