Universal Double Convoluted Air Lift Suspension Spring G1/8 Air Hole Connection For Modified Cars
Universal Double Convoluted Style Air Lift Suspension Spring G1/8 Air Hole Connection For Modified Cars
Product Description
Item: Air Suspension Spring
Brand: GUOMAT
MOQ: 3 Pieces
Warranty: 12 Months
Material: Natural Rubber
Car Model: Modified Cars and Trucks
Operation: Gas-filled
Packing: Strong Carton Box Or As Customers Need
Technical Parameters
|
Cover plate diamater |
136mm |
|
Gas hole |
G1/8 |
|
Max.height |
181mm |
|
Min.height |
71mm |
|
The Stroke |
71mm-181mm |
|
Number of threaded holes |
12 pieces |
Modified Special Air Spring
1. Lift the chassis
2. Shock absorption and comfort
3.Improved Ride Quality
4.Adjustable Ride Height:
5.Load Capacity Enhancement
For Pickup Air Suspension Air Spring
GUOMAT Model: 2B6x6
Cross Contitech FD70-13
Cross Contitech FD 70-13
Cross Contitech FD70 13
Cross Contitech FD7013
| Weight : 1.6kg Design height : 152mm Deflection (Height min) : 65mm Deflection (Height max) : 175mm Working stroke : 110mm Loading cap. at 3.0bar : 2.88kN Loading cap. At 7.0bar :7.25kN |
GUOMAT Model: 2B7x7
Cross Contitech FD120-17
Cross Contitech FD 120-17
Cross Contitech FD120 17
Cross Contitech FD12017
| Weight :2.15 kg Design height : 189mm Deflection (Height min) : 65mm Deflection (Height max) : 230mm Working stroke : 165mm Loading cap. at 3.0bar : 3.33kN Loading cap. At 7.0bar : 9.07kN |
GUOMAT Model: 2B2500
| Weight :1.9 kg Design height : 212mm Deflection (Height min) : 110mm Deflection (Height max) : 240mm Working stroke : 130mm Loading cap. at 3.0bar : 1.48kN Loading cap. At 7.0bar : 6.23kN |
GUOMAT Model: 2B2600
| Weight : 2.54 kg Design height : 212mm Deflection (Height min) : 120mm Deflection (Height max) : 255mm Working stroke : 135mm Loading cap. at 3.0bar : 3.85kN Loading cap. At 7.0bar : 9.52kN |
GUOMAT Model: 3B10X7
| Weight : 2.4 kg Design height : 257mm Deflection (Height min) : 120mm Deflection (Height max) : 320mm Working stroke : 200mm Loading cap. at 3.0bar : 3.47kN Loading cap. At 7.0bar : 8.24kN |
Which is Better, Air Spring or Leaf Spring?
There are several advantages that air springs have over traditional leaf and spring coils. Air springs give you the ability to adjust your ride quickly and easily with little to no need for tools. Air springs also have the ability to vary load capacity and can adjust the handling of the vehicle to different situations.

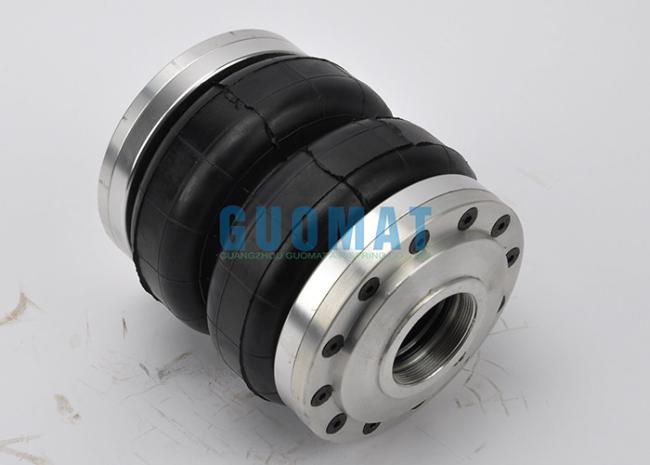

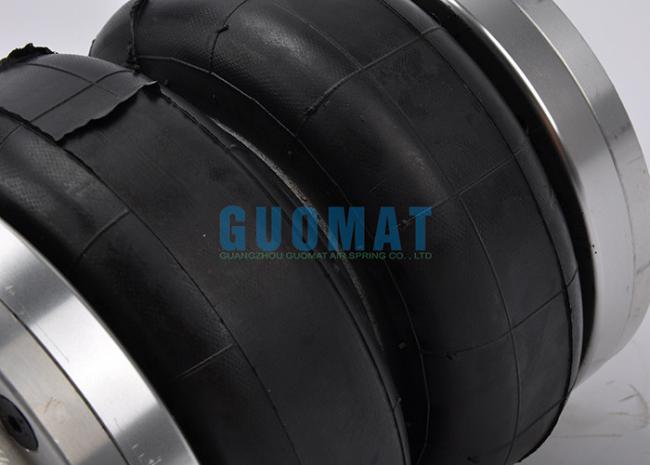

The Following is Picture Display
