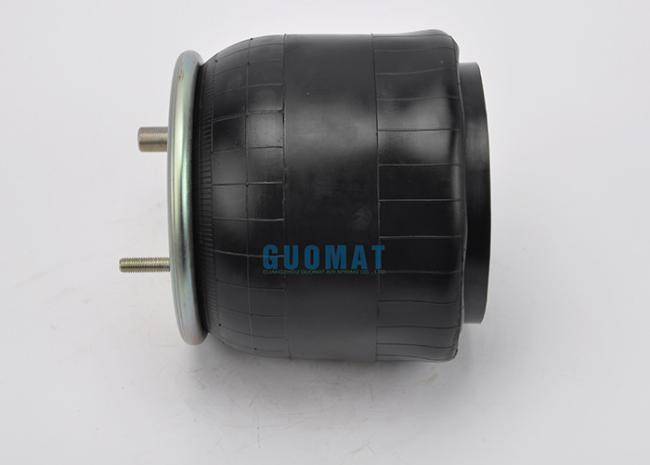

1R11-111 Air Suspension Air Spring Goodyear W01-M58-6297 Mercedes Benz Truck Axle Shock Absorber
Air Suspension Air Spring 1R11-111 Goodyear W01-M58-6297 Mercedes Benz Truck Axle Shock Absorber
Product Description
| Item | Value |
| OEM.NO. | W01-M58-6297 |
| Type | Air Spring |
| Warranty | 12 Months |
| Truck Model | Heavy Duty Truck |
| Color | Black |
| Place of Origin | Guangzhou,China |
| Certification | ISO/TS16949:2009 |
| Material | Rubber+Steel |
| Packing | Neutral Packing |
| MOQ | 1 Pcs |
| Quality | High-Quality |
| Position | Auto/Truck parts |
| Application | Auto Suspension Systems |
OEM Numbers
Firestone Part Number: W01-M58-6297/WO1-M58-6297
Firestone Part Number: W01 M58 6297/WO1 M58 6297
Firestone Part Number: W01M586297/WO1M586297
Firestone Bellow Number: 1T15MPW-7
Contitech Part Number: 4157NP04/4157 NP04/4157 NP 04
Contitech Bellow Number: 60369
Goodyear Part Number: 1R11-111/1R 11-111
Phoenix Part Number: 1D21A4/1D21A8
Dunlop FR Part Number: D12B18/D 12 B 18
Taurus Part Number: KR915-54
Airtech: 133302
Granning: 15731
Pirelli: 1T300-40
WABCO: 951 811 111 0
Weweler: US 06287/US 07364
ROP/Meritor: 21221307
Mercedes Benz: A9463281401/A 946 328 1401/A 946 328 14 01
Tecjnical Data
Top cover plate diameter: 231mm
Air hole: M22X1.5
Bolt/Stud: M12X1.25
Center distance between bolt/Stud: 150mm
Distance between bolt/Stud and air hole: 73mm
Base width: 205mm
Threaded hole: M12X1.75
Center distance between threaded hole: 101mm
Max. height: 565mm
Min.height: 208mm
Base height: 172mm
Every standard air spring consists of 4 layers.
•The inner layer which actually contains the air.
•The first layer of fabric reinforced rubber applied
at a specific angle.
•The second layer of fabric reinforced rubber which
is laid to a specific angle to the first layer.
•The cover to protect the bias fabric plies.
