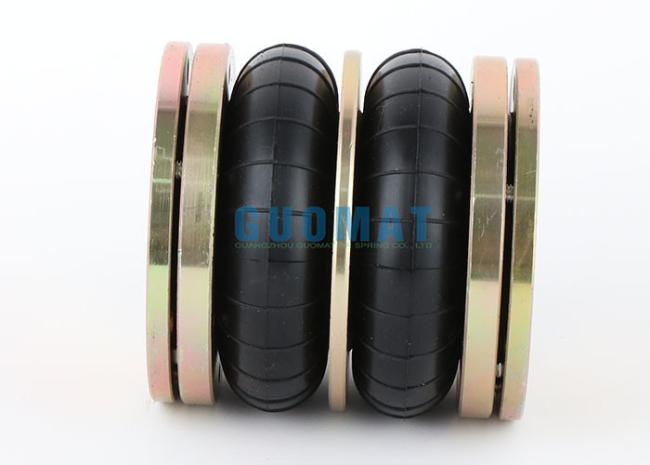

WBZ 140-E1 Double Convoluted Rubber Air Bellow G3/8 Weforma Helper Springs Pneumatic
WBZ 140-E1 Double Convoluted Rubber Air Bellow G3/8 Weforma Helper Springs Pneumatics
Product Description
Weforma: WBZ140
Weforma: WBZ 140
Weforma: WBZ140E1
Weforma: WBZ140-E1
Weforma: WBZ 140-E1
Weforma Air Springs are a type of air spring manufactured by Weforma Deceleration Technology GmbH. These air springs are designed for various applications and offer benefits such as vibration isolation, absorption, and oscillation-proof mounting of machines
|
Brand |
GUOMAT |
|
Name |
Industrial Air Spring |
|
Warranty |
1 Year |
|
Material |
Rubber+Steel |
|
HS Code |
8708809000 |
|
Condition |
Brand New |
|
Delivery Time |
3-8 Working Days |
| Payment | L/C,T/T,Western Union,PayPal |
Specifications and Detailed Technical Parameters
Cover plate diameter: 110mm
The rubber bellow max.outer diameter: 125mm
Installation space needed: 140mm
Air connection: G3/8
Threaded hole: M6
Center distance between threaded holes: 93mm
Max.height: 150mm
Min.height: 65mm
Girdle hoop: 1 piece
Weight: 0.9KG
M6: 5 Nm
G3/8=15Nm
Min.pressure: 0bar
Return force to min.height: ≤130N
Our Service
The products of Guangzhou Gomate Air Spring Co., Ltd. are mainly used in the bases of commercial vehicles, rail vehicles, and industrial machinery and equipment.
The main products include: rubber air springs, bus and truck airbags, industrial airbags, air springs for papermaking machinery, rubber air springs for large washing machines, automobiles, etc. There are now hundreds of models and styles, and we can also customize them according to customer requirements. Or we can design and produce according to the customer's existing product specifications. New and old customers are welcome to call us for consultation.
Customer Service: GUOMAT provides customer service support to sellers and can provide customers with a positive buying experience.
Regarding delivery: Generally, we arrange transportation for customers within 3-7 working days after receiving payment from customers. After the goods are transported, we will immediately send you the waybill number to check the transportation status, so that the buyer can handle customs clearance in time and successfully pick up the goods.
Transportation methods: air transportation, sea transportation, rail and express transportation.
Warranty: Our goods have a one-year warranty. If you have any problems after receiving the goods, please contact our staff in time.If the product is damaged due to improper use, we will not be responsible for the warranty
WBZ 140-E1 Weforma Industrial Air Spring
