YS-160-2V/YS1602V Air Shock Cushion 110mm Rubber Air Spring For Punch Press Machine


Product Description

Specifications and Detailed Technical Parameters

Minimum height: 68mm
Maximum height: 174mm
Design height: 110mm
Maximum outer diameter when compressed: 176mm
Cover diameter: 126mm

Convolutions: 2

Approximate standard height and internal pressure 5kg/cm2
Volume: 0.82 (I)
Loading capacity: 510KGS
Natural frequency: 2.9HZ

Characteristics of Punch Air Springs

• Long Life: Punch air springs are known for their durability and long life.
• No other springs required: these air springs use compressed air as the elastomer, giving them the flexibility to handle large loads. Therefore, they do not require the use of additional springs.
• Wide pressure range: By changing the internal pressure through compression, the punch air spring can withstand a wide range of pressure changes. This makes them suitable for presses with widely varying pressure ranges.
• Height Adjustment: Punch air springs can be used with height adjustment valves to maintain a constant height and prevent load fluctuations.
• Excellent damping effect: The punch air spring is used in conjunction with the auxiliary oil tank and throttle valve to provide excellent damping effect and reduce the resonance amplitude.
• Simple installation and disassembly: The punch air spring has a simple structure and is easy to install and disassemble.

Double Convoluted Type Air Spring Can be Used in General Punch Machines on the Market.

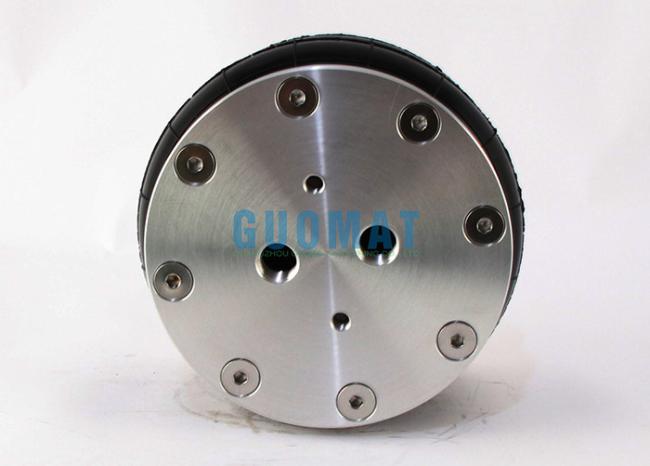

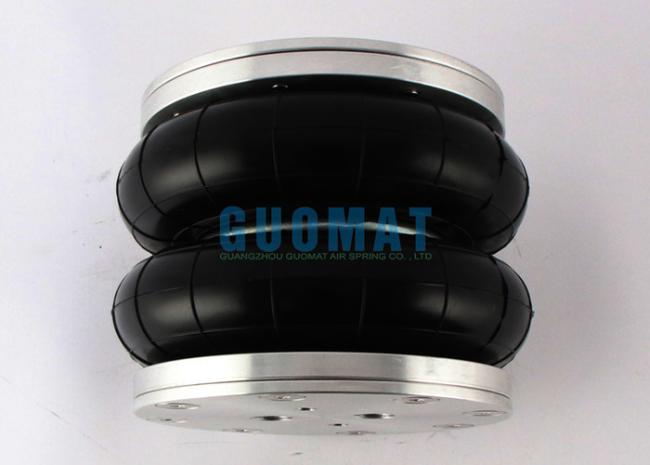

The Real Pictures
