4881NP02 Truck Air Springs Contitech 1R14-757 Goodyear Air Suspension System
Truck Air Spring 4881NP02 Contitech 1R14-757 Goodyear Air Suspension System
Product Details
Firestone Number: W01-M58-8602 / W01 M58 8602 / W01M588602
Firestone Bellow Number: 1T66D-7.0
Contitech Number: 4881 NP 02 / 4881NP02
Goodyear Number: 1R14-757 / 1R 14-757
Dunlop Number: D141444
Granning Number: 16905
BPW Number: 05.429.40.08.1
BPW Number: 05.429.41.21.0
BPW Number: 05.429.41.31.0
BPW Number: 05.429.41.36.0
BPW Type Number: 05.429.43.41.0
IVECO Number: 500036830
Technical Data: 1T8602 Truck Air Spring
The diameter of the top cover is 315mm
The center distance between Bolts is 210mm
The air hole specification is M22X1.5
The specification of Bolt is M12X1.75
The base diameter is 251mm
The number of threaded holes in the base is 12pcs
The threaded hole specification is M16X2.0X12P
The height of the base is 150mm
The outer diameter is 355mm
The maximum height is 559mm
Minimum height is 223mm
Product Description
|
Product Name |
Truck Air Spring |
|
Brand |
GUOMAT |
|
Warranty |
1 Year |
|
Material |
Rubber+Steel |
|
Price Condition |
FOB China,EXW Guangzhou |
|
Package Standard |
Packing or Pallet |
|
MOQ |
10pcs |
|
Payment Term |
T/T&L/C & West Union |
A truck air spring is an air suspension component used on trucks and trailers. Air springs are designed to provide support and cushioning to a vehicle's suspension system, improving ride comfort and stability.
Air springs, also known as bladders or bladders, are made of flexible material and filled with compressed air. They are usually mounted between the axle and the vehicle frame or suspension components. When the vehicle encounters bumps or uneven pavement, the air springs compress and expand to absorb shock and vibration, providing a smoother ride.
The GUOMAT 1T8602 air spring is compatible with certain truck models, such as those equipped with BPW axles. It is part of a wider range of air springs for trucks and trailers, each of which has its own specifications and compatibility requirements.
Goodyear Truck Air Spring
| Goodyear | Bellow NO. | Piston NO. | Goodyear | Bellow NO. | Piston NO. |
| 1R14-037 | 566-28-3-015 | 566-20-7-334 | 1R14-094 | 566-28-3-015 | 566-20-7-334-03 |
| 1R14-038 | 566-28-3-015 | 566-20-7-334 | 1R14-108 | 566-28-3-015 | 566-20-7-334 |
| 1R14-042 | 566-28-3-015 | 566-20-7-334-03 | 1R14-155 | 566-28-3-015 | 566-20-7-334 |
| 1R14-052 | 566-28-3-015 | 566-20-7-334 | 1R14-167 | 566-28-3-015 | 566-20-7-223 |
| 1R14-167 | 566-28-3-015 | 566-20-7-223 | 1R14-198 | 566-28-3-015 | 566-20-7-334 |
| 1R14-205 | 566-28-3-015 | 566-20-7-230 | 1R14-215 | 566-28-3-015 | 566-20-7-334 |
| 1R14-019 | 566-28-3-020 | 566-20-7-097 | 1R14-025 | 566-28-3-020 | - |
| 1R14-030 | 566-28-3-020 | 566-20-7-097 | 1R14-031 | 566-28-3-020 | - |

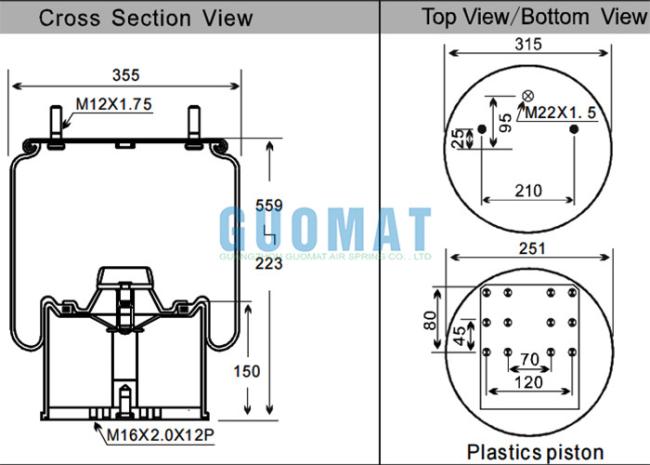

The Drawing of 1T8602 Truck Air Suspension
