W01-358-7325 Industrial Air Spring Firestone Rubber Bellow 26 Style 2B8-150 Goodyear Replacement

Price Negotiable

Price: $59.9-69.9/pc

MOQ: 6pcs

Delivery Time: 2-8 work days

Brand: GUOMAT

Product Description

W01-358-7325 Firestone Rubber Bellow 26 Style 2B8-150 Goodyear Replacement Air Spring

Product Description

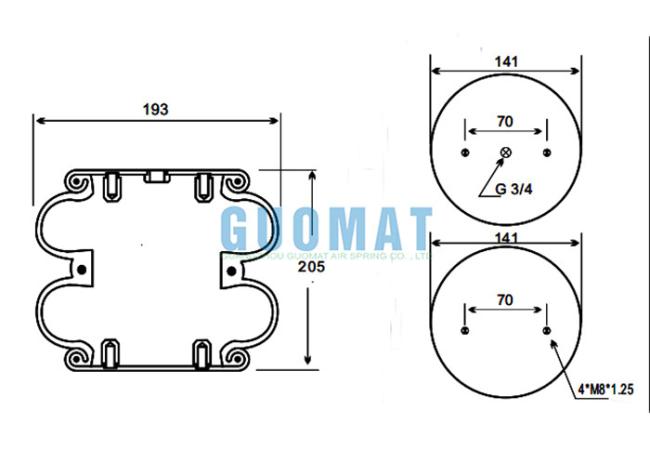

Top Cover Plate

Top cover diameter: Ø141mm
Number of threaded holes: 2pcs
Center distance between threaded holes: Ø70mm
Air connection: G3/4

Bottom Cover Plate

Bottom cover diameter: Ø141mm
Number of threaded holes: 2pcs
Center distance between threaded holes: Ø70mm

Rubber Bellow

Natural outer diameter: Ø193mm
Design height: 205mm

GUOMAT 2B7325 Cross Reference Number

FIRESTONE

CONTITECH

GOODYEAR

TRIANGLE

W01-358-7325

W013587325

W01 358 7325

Bellow No. 26

FD120-20 509

FD 120-20 509

FD120-20509

Order No.64601

2B8-150/2B 8-150

2B8-153/2B 8-153

2B8-550/2B 8-550

Bellow No.579923530

Bellow No.579 92 3 530

Bellow No.579-92-3-530

6392

4509

E.R.F : 1398567

American Carrier : 800 3006

Mac-k truck : 227QS32

Mac-k truck : 57QK1113

Hendrickson : Na1821

Hendrickson : S14395

Ridewell : 1003587325C

SAF Holland : 57007325

Sauer : P10754

Terbery : 21065660

Watson&Chalin : As0030

FD 120-20 509 Contitech Air Spring Technical Data

Top cover diameter	5.50
Center distance between threaded holes	2.75
Number of threaded hole specifications	2x3/8-16UNC
Air Inlet	1/4-18NPTF
Bottom cover diameter	5.50
Center distance between threaded holes	2.75
Number of threaded hole specifications	2x3/8-16UNC
Maximum outer diameter	8.6
Maximum height	10.60
Minimum height	3.00

Continental FD120-20 Air Spring Assembly

Contitech No.	Order Number	Hole/Bolt/Stud	Air Hole	Replace
FD 120-20 509	64601	2X3/8-16UNC	1/4-18NPTF	Firestone W01-358-7325
FD 120-20 715	64666	3/4-16 NUF,1/4-18NPTF 1/2-13UBC,2X3/8-16UNC	-	Firestone W01-358-7705
FD 120-20 736	64733	2X3/8-16UNC	1/2-14 NPTF	MAC 2380Z7
FD 120-20 795	66661	2X3/8-16UNC	1/4-18NPTF	Firestone W01-358-7689
