OEM 4 1/2" X 2 Industrial Air Spring FD44-10 DI Contitech Single Acting Air Bellow

Price Negotiable

Price: $99.9-139.9/pc

MOQ: 6pcs

Delivery Time: 2-8 work days

Brand: GUOMAT

Product Description

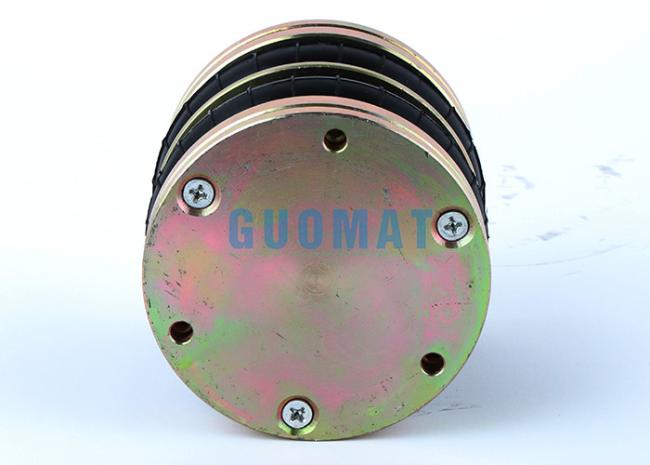

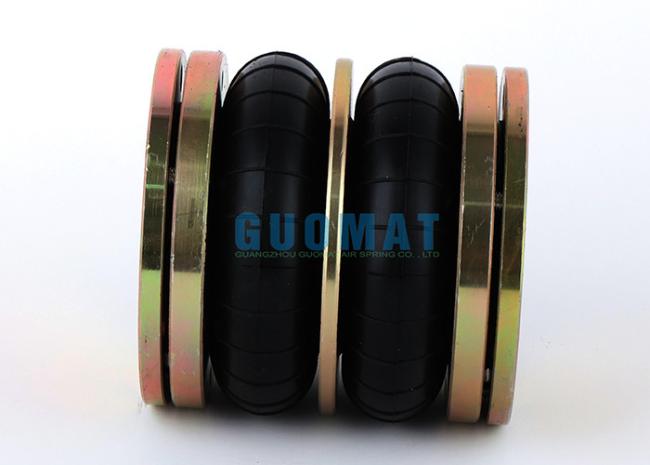

OEM Quality 4 1/2" x 2 Industrial Air Spring FD44-10 DI Contitech Single Acting Air Bellow

Product Description

Item: Industrial Air Spring

Model No.: 2B4.5X2

Material: Rubber,Alumlnlum

Warranty: 1 Year

Size: OEM Size

Convolution: 2

Color: Black Rubber+Golden Cover Plate

Structure: Piston Cylinder

Power: Pneumatic

Original Equipment Manufacturer Number

Manufacturer Original-Part No.: Continental Contitech FD 44-10 DI

Manufacturer Original-Part No.: Continental Contitech FD 44-10 DI G3/8 CR

Manufacturer Original-Part No.: Continental Contitech FD 44-10 DI CR G3/8

Manufacturer Original-Part No.: Continental Contitech FD 44-10 DI G3/8 M6

Manufacturer Original-Part No.: Continental Contitech FD 44-10 DI CR 70206

Manufacturer Original-Part No.: Continental Contitech FD 44-10 / FD44-10 / FD4410

Manufacturer Original-Part No.: Firestone 4051

Manufacturer Original-Part No.: Firestone W01R584051 / WO1R584051

Manufacturer Original-Part No.: Firestone W01 R58 4051 / WO1 R58 4051

Manufacturer Original-Part No.: Firestone W01-R58-4051 / WO1-R58-4051

Manufacturer Original-Part No.: Firestone Style 41/2''x2 / 41/2x2

Manufacturer Original-Part No.: Dunlop FR 41/2''x2

Manufacturer Original-Part No.: Dunlop FR SP2441 / SP 2441

Manufacturer Original-Part No.: Dunlop UK PNP305590109 / PNP 305590109

Manufacturer Original-Part No.: YS-AIR YS-115-2V / YS 115 2V / YS1152V

Manufacturer Original-Part No.: Norgren PM/31042 / PM31042 / PM 31042

Manufacturer Original-Part No.: NominalØ(inch)xconvolutions 41/2''x2 / 41/2x2

Dunlop 41/2''X2 Technical Data

Maximum Diameter	125mm
Space Required	140mm
Minimum Height	65mm
Maximum Height	145mm
Total Stroke	80mm
Static Height	100mm
Effective Area at Static Height	67cm2
Bellows Weight	0.93KG
Maximum Axial Offset	10mm
Maximum Working Pressure	8bar
Burst Pressure	50bar

Part Number	Type	Rubber	Inlet
PNP 30728 03 00	Bellow	Standard	N/A
PNP 30559 01 07	Assembly	Standard	3/8'' BSP
A 3 1470 0B 21	Bellow	ButyI	N/A
PNP 30559 B1 09	Assembly	ButyI	3/8'' BSP

Precautions to Observe
Do not exceed stated stroke.
Do not inflate assembly when it is unrestricted.
Do not inflate beyond pressures
Respect maximum and minimum heights.
The bellows must be securely fixed.
Do not use without air pressure.
