Firestone Plate Industrial Rubber Bellows W01-358-7808/313 Suspension Air Spring

Product Description


• Suspension air springs are used in vehicles to provide suspension and improve ride comfort by absorbing shock and vibration.
• They are commonly used on heavy-duty trucks, buses and trailers to support the weight of the vehicle and its cargo.
• Air springs are also used in passenger cars, especially luxury cars, to improve ride quality and adjust the height of the vehicle.


Original Equipment Manufacturing Number

AUTOMANN Number: ABSP3B32R-7808
E-Z RIDE Number: 8030170
INT'L/NAVISTAR Number: 554801C1
LOAD GUARD Number: SC2031
PEERLESS Number: 050-00030
RIDEWELL Number: 1003587808C
RIDEWELL Number: S-4830-C
TRIANGLE Number: 4336
TRP Number: AS78080
TRUCKSTELL Number: 63640

Continental ContiTech: FT 530-32 336
Continental ContiTech Order No.: 64506
Continental ContiTech: FT530-32 336
Continental ContiTech Order No.: 64506
Firestone No.: W01-358-7808 / W01 358 7808 / W013587808
Firestone No.: WO1-358-7808 / WO1 358 7808 / WO13587808
Firestone Style: 313
Goodyear No.: 3B14-354 / 3B 14-354 / 3B14354
Goodyear Flex No.: 578-93-3-350 / 578 93 3 350 / 578933350

3B7808 Suspension Air Spring Technical Data

The diameter of the top cover is 289mm, the size of the air holes is 1/4NPT, the number and size of the threaded holes are 4X3/8-16UNC. The center distance between the threaded holes is 158.8mm.

The diameter of the bottom cover is 289mm, and the number and specifications of the threaded holes are 4X3/8-16UNC. The center distance between the threaded holes is 158.8mm.

The natural outer diameter of the air spring is 356mm, the natural height is 282mm, and it is 3 convolutions.

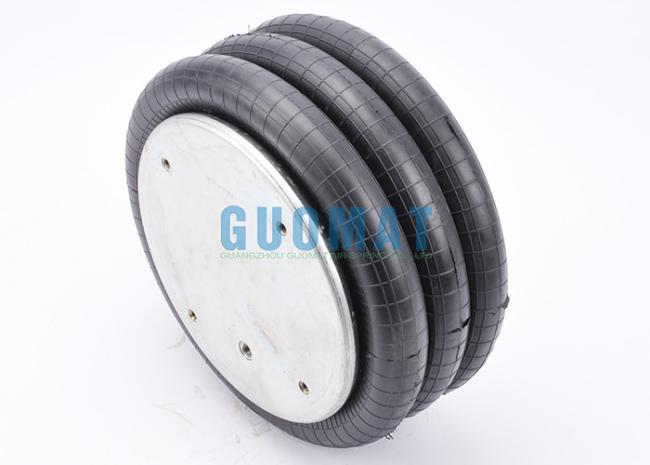

Triple Convoluted Suspension Air Spring
