GUOMAT NO.: 1B5520
GOODYEAR NO.: 1B5-520
GOODYEAR NO.: 1B5 520
GOODYEAR NO.: 1B5520
ENIDINE NPO.: YI-1B5-520
ENIDINE NPO.: YI 1B5 520
ENIDINE NPO.: YI1B5520
ENIDINE NPO.: yi-1b5-520
1B5-520 Air Spring Features
Load Range (Isolator): 190-1500ib
Design Height Range (Isolator): 3.5-5.0 in
Useable Stroke (Actuator): 3.0 in
Assembly Weight: 1.4 Ib
Force to Compress At 0 PSIG(Approx.) 40 Ib
Nominal Free Standing HT.At 0 PSIG: 4.3 in
Technical Data
Top Technical Data
Threade hole: 3/8''-16 UNC-2Bx5/8‘’ Deep
Air hole: 1/4'' or 3/4''
Center distance between threaded holes: 1.75''
Side Technical Data
The rubber bellow max outer diameter: 6.5'' at 100 PSIG
Top cover plate diameter: 3.4'
Bottom cover plate diameter: 3.4'
Max extended height : 5.8''
Compressed height: 1.8''
Bottom Technical Data
Threade hole: 3/8''-16 UNC-2Bx5/8‘’ Deep
Center distance between threaded holes: 1.75''
Constant Pressure Characteristics
|
Assembly Height(in) |
Volume@100PSIG(in3) |
Nomical Force(Ib) |
||||
|
@20PSIG |
@40PSIG |
@60PSIG |
@80PSIG |
@100PSIG |
||
|
5.8 |
93 |
0 |
80 |
180 |
300 |
440 |
|
5.5 |
89 |
100 |
230 |
380 |
540 |
700 |
|
5.0 |
84 |
190 |
380 |
580 |
800 |
1000 |
|
4.75 |
80 |
220 |
440 |
660 |
900 |
1150 |
|
4.0 |
70 |
280 |
560 |
800 |
1100 |
1450 |
|
3.5 |
63 |
280 |
600 |
900 |
1200 |
1500 |
|
3.0 |
55 |
300 |
620 |
900 |
1250 |
1600 |
|
2.5 |
46 |
320 |
620 |
950 |
1250 |
1600 |
|
2.0 |
36 |
420 |
750 |
1100 |
1500 |
1900 |
|
1.8 |
31 |
480 |
850 |
1200 |
1600 |
2100 |

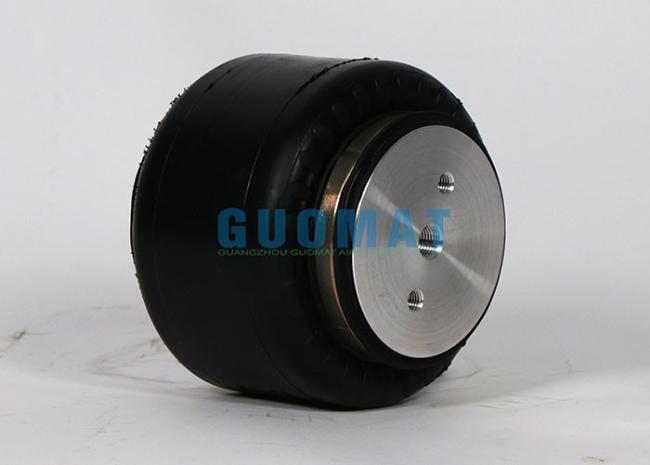

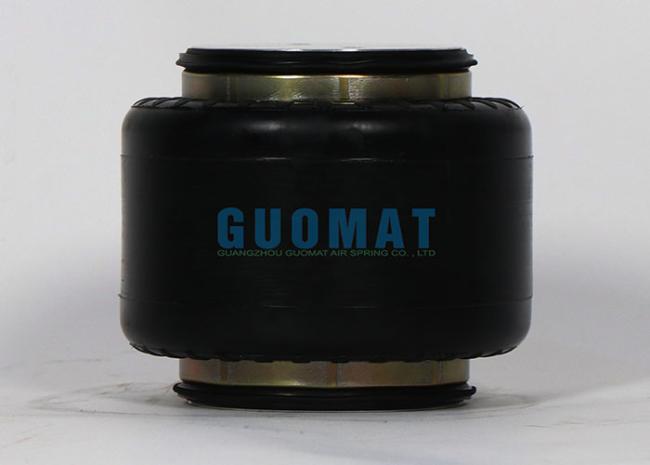

The Real Pictures
