Firestone Air Spring W013587725 GUOMAT 1B5725 Big Stroke Single Convoluted Air Spring Shock


Product Description

Single convoluted air spring with crimpled plated ,also avaiable with other air inlets

1. High quality

2. Competitive price

3. MOQ : 10 PCS

4. Warranty :One year

5.Cross Information:
GUOMAT 1B7725

FIRESTONE Bellows Style 125B

FIRESTONE Air Spring W013587725,

FIRESTONE Air Spring  W01-358-7725,

FIRESTONE Air Spring  WO1-358-7725,

FIRESTONE Air Spring  WO13587725

GUOMAT 1B7725 Specifications and Technical Data

Nut / Blind Nut

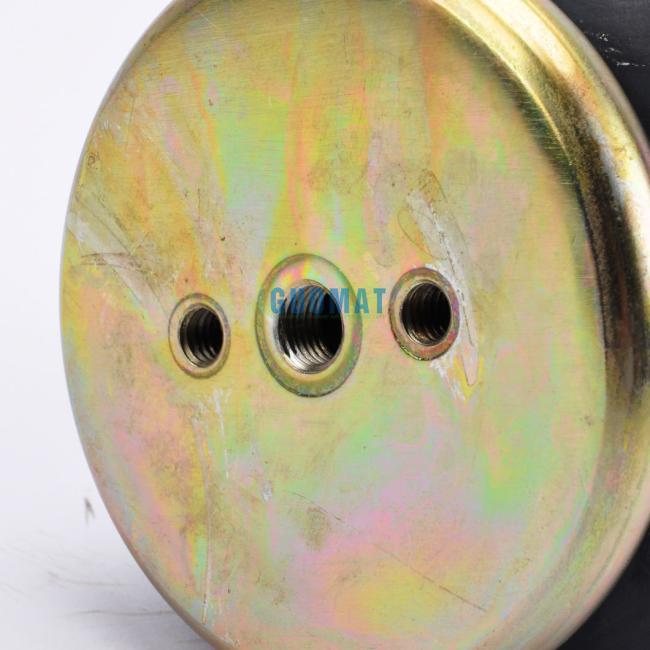

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 44 mm

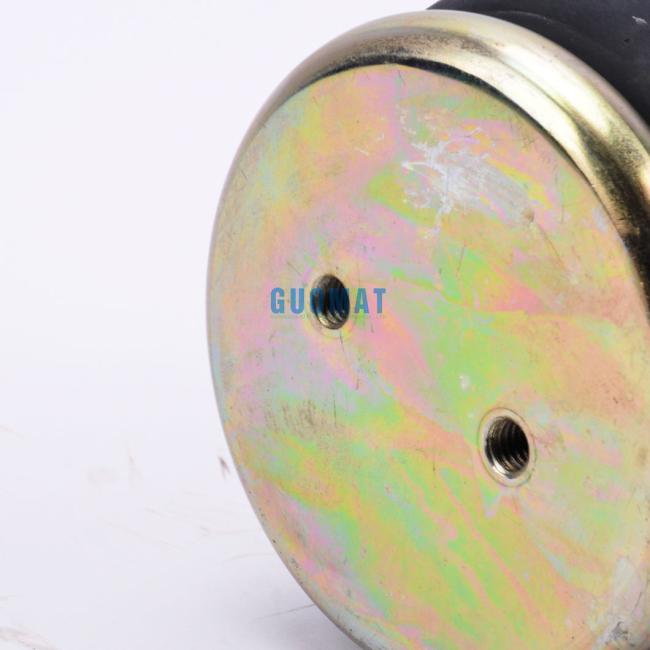

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 44 mm

 Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 22 mm

 Cover Plate

Top Cover Plate Diameter: 114.8 mm

Bottom Cover Plate Diameter: 114.8 mm

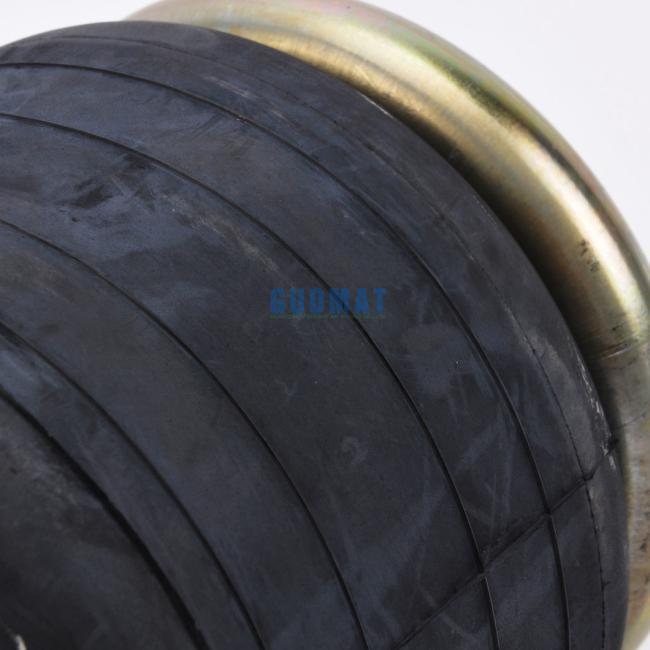

Rubber Bellows

Rubber Bellows MAX Diameter: 150 mm

Rubber Bellows Natural Diameter : 126 mm

The Working Stroke : MIN 60 mm to MAX 141 mm

Maximum Height : 141 mm

Minimum Height :60mm

Stroke Height : 79 mm

 Bumper block / Buffer block

Without Bumper Block

 Girdle Hoop / Girdle Ring

With Girdle Hoop : no One Pieces of Girdle Hoop

Operating Temperature: 57Cº to -54Cº

Compressed Height: 90mm

DETERMINE ISOLATION EFFECTIVENESS

Select one or two Airmounts that can support the load at each mount point. It is usually best to design a pressure in the range of 60 to 80 psig. First consider only 1M1A-0 and single and double convolution types. Note that in most cases, in the range of 210 to 63,890 pounds, you will find single and double rotating parts that support the load.
