FD200-19 Contitech Double Convoluted Air Spring 2B9-252 Goodyear Rubber Air Bag
Price:
USD79.9-99.9/PC
MOQ:
5pcs
Delivery Time:
3-7 Working Days
Brand:
GUOMAT
Product Description
Customized Suspension Parts Double Convoluted Suspension Air Spring Contitech FD200-19
Convoluted type air spring is composed of a rubber Convoluted sandwiched with cords and compressed air sealed in it. The inner layer of the airbag is made of air-tight rubber, while the outer layer is made of oil-resistant rubber. Airbags are generally made into two sections,but there are also single sections or three or four sections. The more the number of nodes, the better the elasticity, but the sealing performance is poor. There is a steel waist ring between the nodes to prevent radial expansion of the middle part and prevent friction between the two nodes. The upper and lower covers of the airbag seal the airbag.
FD200-19 convoluted Air Spring
Bottom Cover Plate Dia:160mm
Screw Center Distance:89mm
Distance Gas Hole Between Nuts:38mm
Gas Hole Type:G3/4
Screw(Nut)Tooth:2 X M8X1.25
Rubber Bellows Dia.:224mm(MAX.215)
The Stroke:75~260mm
We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.

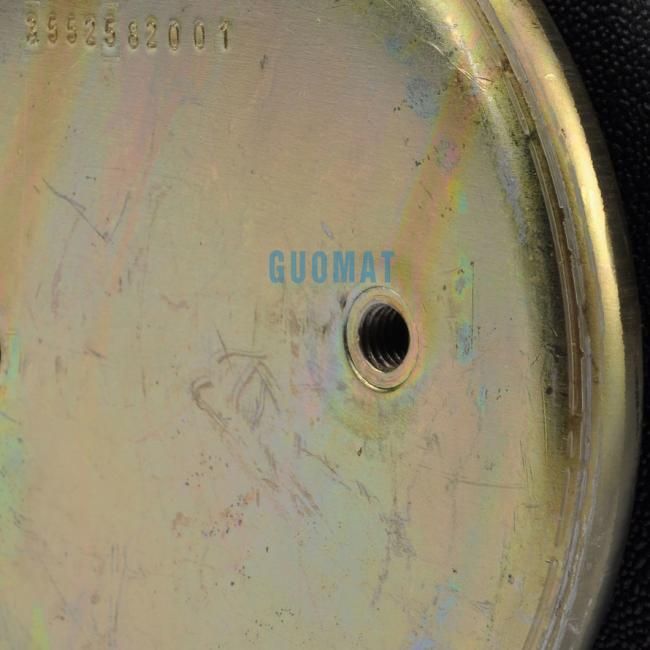

![Customized Suspension Parts Double Convoluted Suspension Air Spring Contitech Fd200-19]()
![Customized Suspension Parts Double Convoluted Suspension Air Spring Contitech Fd200-19]()
![Customized Suspension Parts Double Convoluted Suspension Air Spring Contitech Fd200-19]()
![Customized Suspension Parts Double Convoluted Suspension Air Spring Contitech Fd200-19]()
Convoluted type air spring
Convoluted type air spring is composed of a rubber Convoluted sandwiched with cords and compressed air sealed in it. The inner layer of the airbag is made of air-tight rubber, while the outer layer is made of oil-resistant rubber. Airbags are generally made into two sections,but there are also single sections or three or four sections. The more the number of nodes, the better the elasticity, but the sealing performance is poor. There is a steel waist ring between the nodes to prevent radial expansion of the middle part and prevent friction between the two nodes. The upper and lower covers of the airbag seal the airbag.
FD200-19 convoluted Air Spring
Contitech Part Number FD 200-19
Contitech Part Number FD200-19
Firestone Part Number W01-M58-6891 / W01 M58 6891 / W01M586891
Firestone Part Number 20-2
Goodyear Part Number 2B9-252 / 2B 9-252 / 2B9 252
Airtech Part Number 2B-225
Scania Part Number 1387283
SAF Part Number 1319761
Megatech Part Number 2D 200-25 P04
Product Technical parameters
Bottom Cover Plate Dia:160mm
Screw Center Distance:89mm
Distance Gas Hole Between Nuts:38mm
Gas Hole Type:G3/4
Screw(Nut)Tooth:2 X M8X1.25
Rubber Bellows Dia.:224mm(MAX.215)
The Stroke:75~260mm
We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.
Specification:
| Long lasting service on almost all tryck and trailer air suspension. |
| Absorb road shock to help tractors and rigs last longer. |
| Cut down on vibration and driver fatigue. |
| Long trouble free service,constant leve; hauling,quite cushioned ride. |
Our advantages:
- A wide range of products
- Accept OEM order
- Affordable, safe and efficient logistics services
- Flexible payment
- Guaranteed warranty
Our services:
| 1.Reply your inquiry in 24 working hours |
| 2.OEM,buyer desigh,buyer label services provided |
| 3.Exclusive and unique solution can be provide to our customer by our well-trained and professional engineers and staffs |
| 4.Timely delivery |
| 5.Good after-sale service |
| 6.Factory price |
