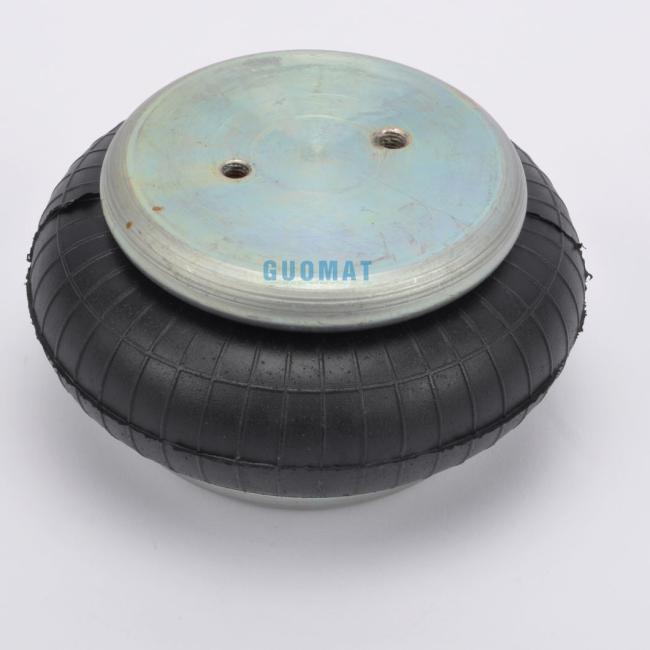

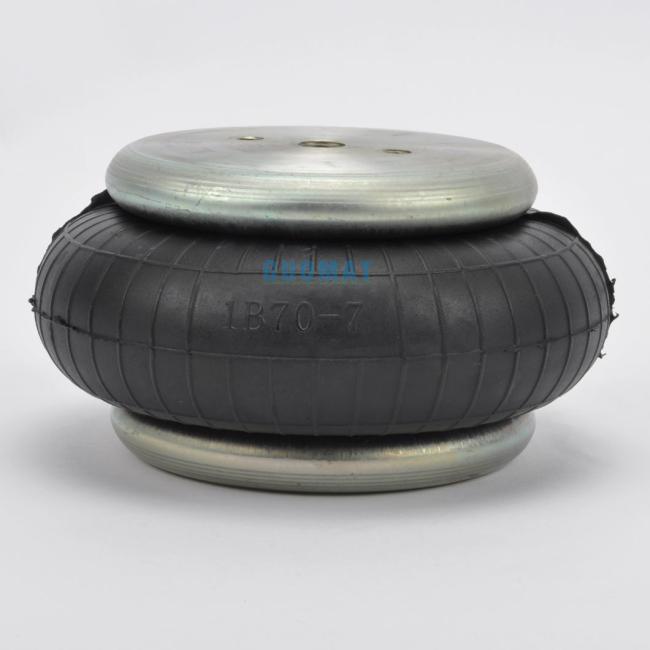

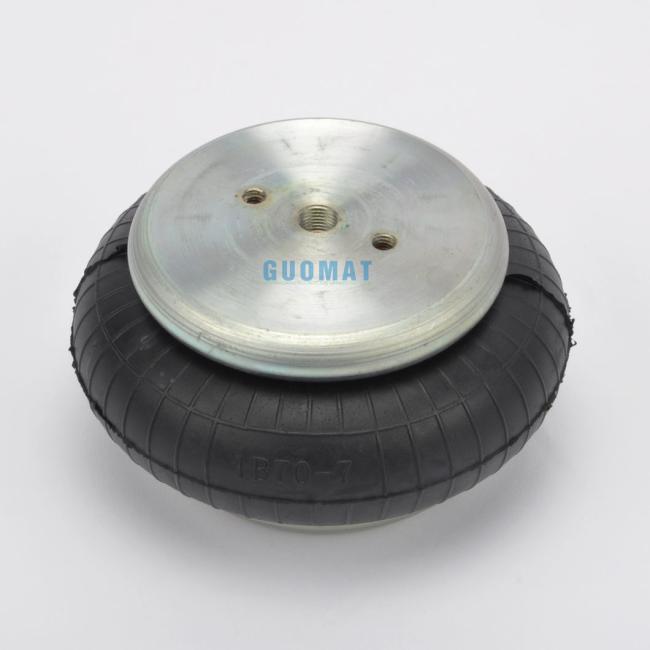

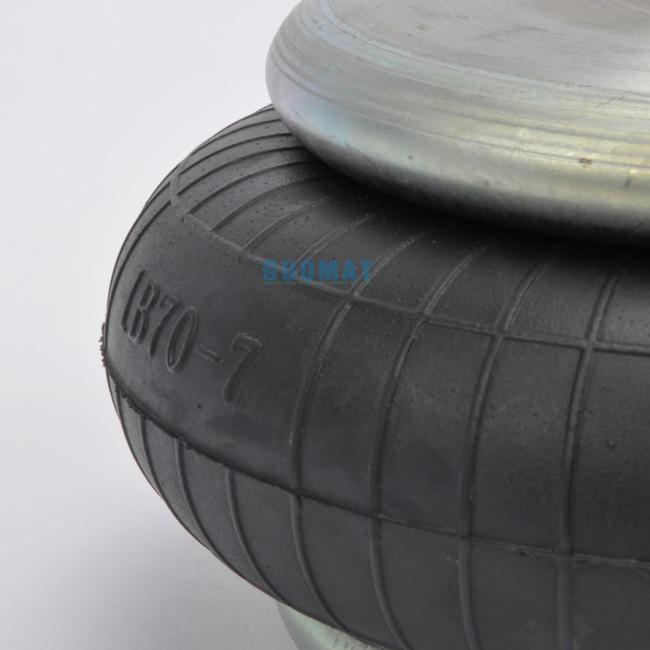

Rubber Material Single Convoluted Air Shock Absorber Contitech FS 70-7 Lift Air Spring
Rubber Material Single Convoluted Air Shock Absorber Contitech FS 70-7 Lift Air Spring
| Product Name | Air Spring |
| Item Number | 1B7070 |
| Warranty | 12 Months |
| Color | Black |
| Place of Origin | Guangzhou,China |
| Bellow Type | Single Convoluted |
| Certification | ISO/TS16949:2009 |
| Material | Rubber+Steel |
| MOQ | 1 PCS |
| Packing | Neutral Packing |
| Quality | Hight-Quality |
| Contitech | FS70-7 |
| Phoenix | SP 1B 05 |
| B osch | 822419002 |
| F esto | EB-165-65 |
| Weforma | WBE200-E1 |
1B 70-7 Single Convoluted Air Spring Technical Data
Top Cover Plate Diameter:105mm
Bottom Cover Diameter:105mm
Air Hole/Gas Hole:G1/4
Top Cover Plate Screw (Nut) Tooth:2XM8X1.25
Bottom Cover Plate Screw(Nut) Tooth:2XM8X1.25
Rubber Bellows MAX Diameter:165mm
Screw Center Distance of Top Cover Plate :44.5mm
Screw Center Distance of Bottom Cover Plate:44.5mm
The working Stroke:MAX 115 mm to MIN 50 mm
Maximum Height : 115 mm
Minimum Height :50 mmx
Compression Height : 65 mm
