Bellows Single Convoluted Air Spring W01-358-7451 Air Bag Boot Industrial Air Suspension
Price:
USD49.9-59.9/PC
MOQ:
5pcs
Delivery Time:
3-7 Working Days
Brand:
GUOMAT
Product Description
Bellows Single Convoluted Air Spring W01-358-7451 Air Bag Boot Industrial Air Suspension
Product Information
Fire-stone W01-358-7451 Air Spring Technical Data
Temperature Range (MIN): -37ºC
Bellows O.D.(MAX):205mm
Convoluted:Single
Air Inlet Type:NPTF
Air Inlet :1/4 N.P.T.F
Top Cover Plate Diameter:115mm
Bottom Cover Plate Diameter:115mm
Screw Center Distance of Top Cover Plate:44.5mm
Screw Center Distance of Bottom Cover Plate:44.5mm
Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Bottom Cover Plate Screw(Nut) Tooth:2X3/8-16UNC
The Working Stroke:50mm ~140mm
Manufacturer:Fire-stone Industrial Products
Manufacturer Part Number:W01-358-7451,W013587451
Single Convolution Air Spring
Natural Bellows
Blind Nuts
1/4 NPTF Air Inlet
| Description |
| Fire-stone air springs are time-proven industrial actuators and vibration isolators. As an actuator, air springs offer a unique ability to provide linear or angular motion in a very low profile when compared to air cylinders. Their unique, flexible properties lend well to numerous duties on machines that press, tension, roll, convey, lift and package. As an isolator, air springs are effective in reducing the harmful effects of vibration. |
| Applications | Features |
| 1.Industrial actuator 2.Vibration isolator 3.Press machines 4.Conveyors 5.Lifts 6.Packaging machines |
1.Two-ply, fabric-reinforced rubber 2.Flexible media 3.Provides linear and angular motion 4.Reduces harmful effects of vibration |

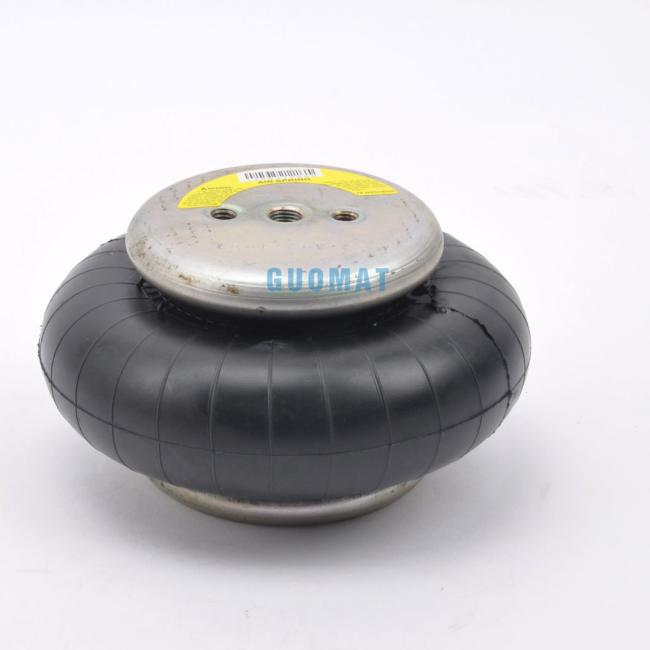

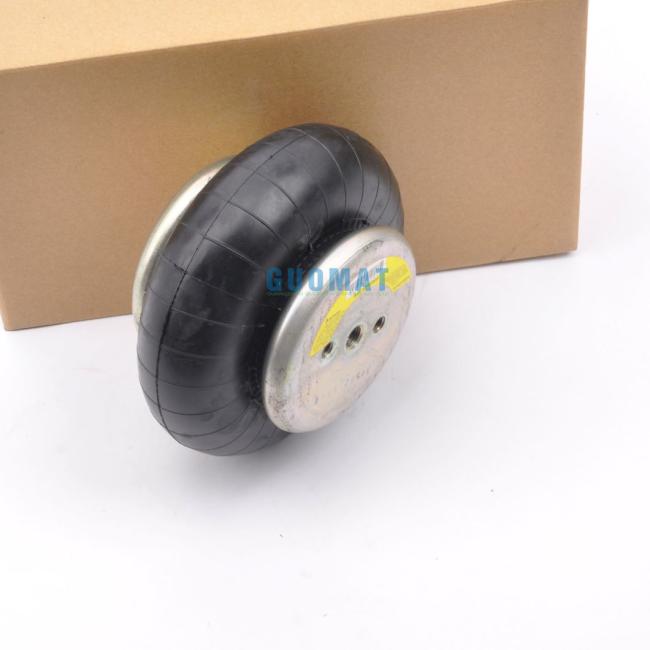

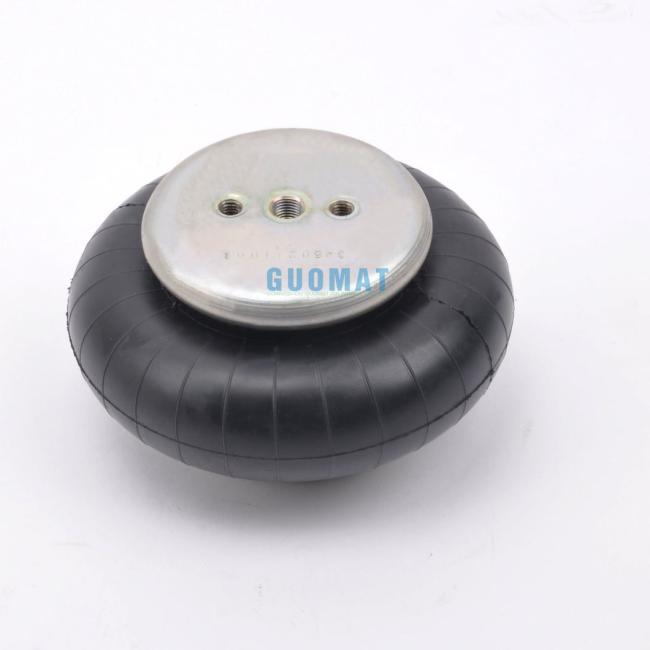

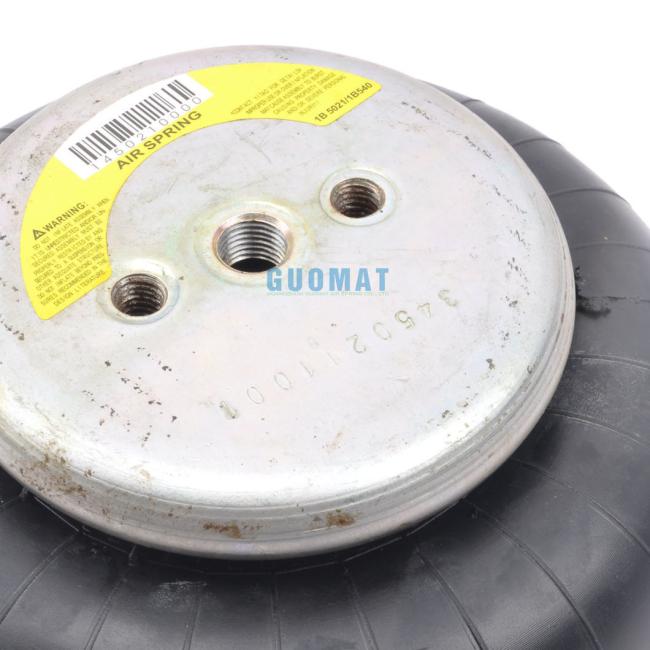

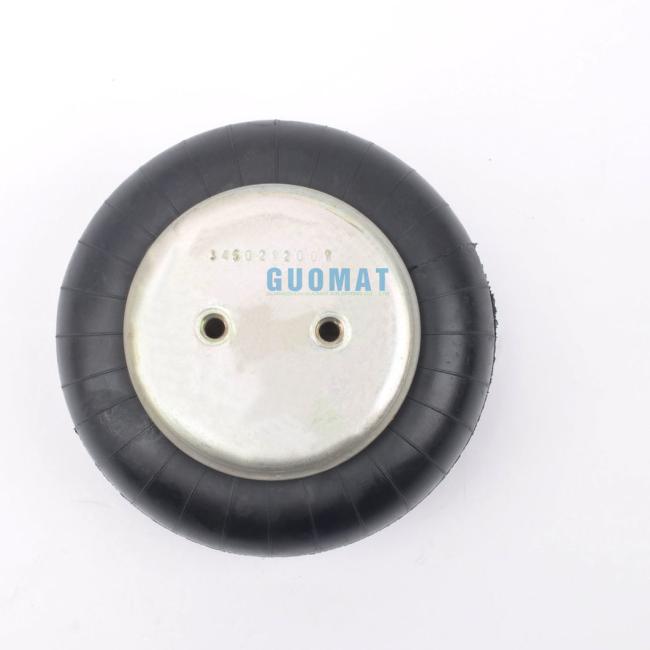

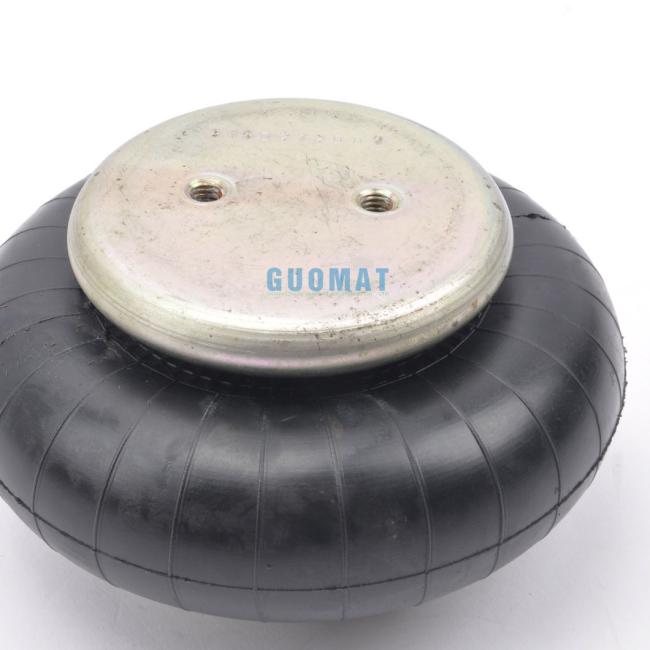

Product Image
Packing & Shipping
Package: According to customer requirement or neutral packing
Shipping: Guangzhou Port
Payment Term: L/C,T/T ,Western Union,Paypal
Delivery Time: About 2~8 working days after receive your payment
Shipping: Guangzhou Port
Payment Term: L/C,T/T ,Western Union,Paypal
Delivery Time: About 2~8 working days after receive your payment
