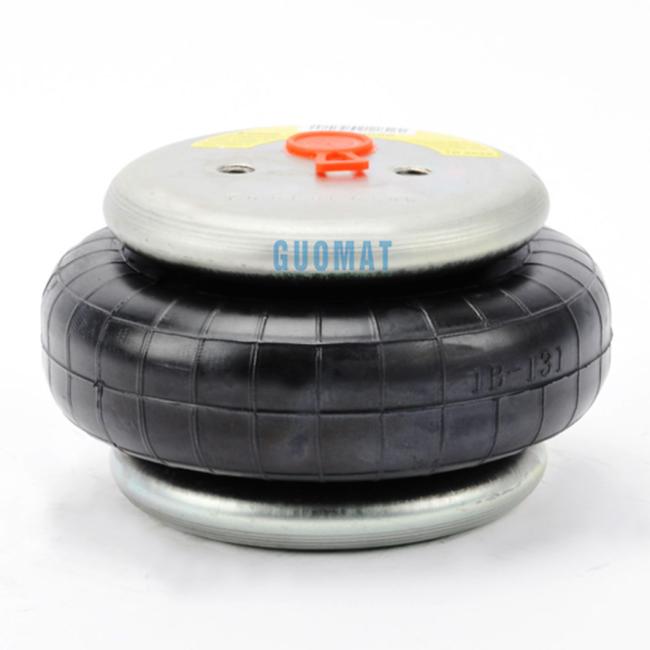

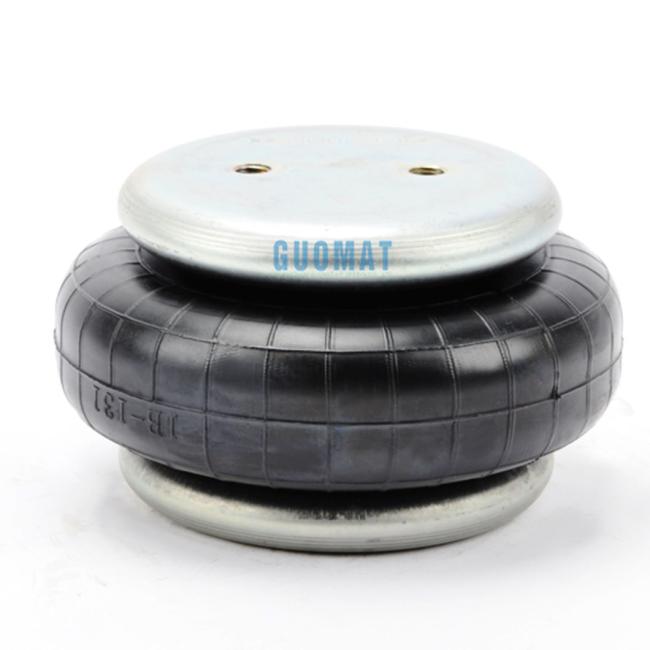

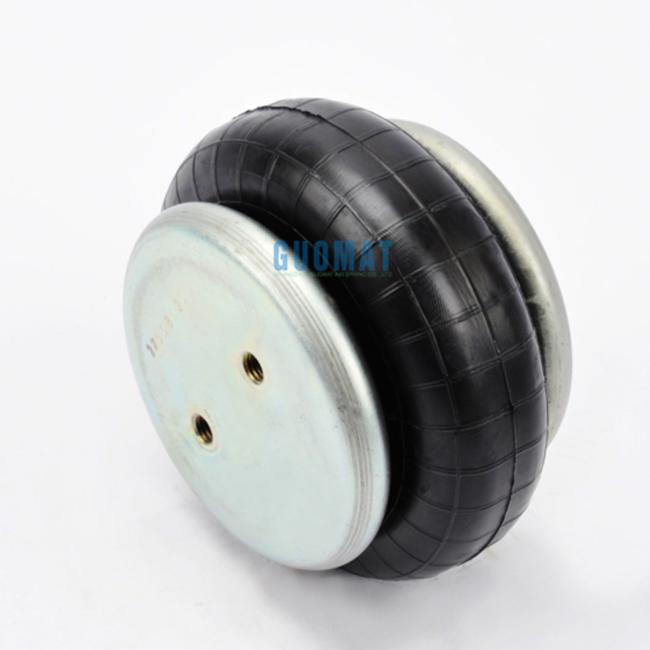

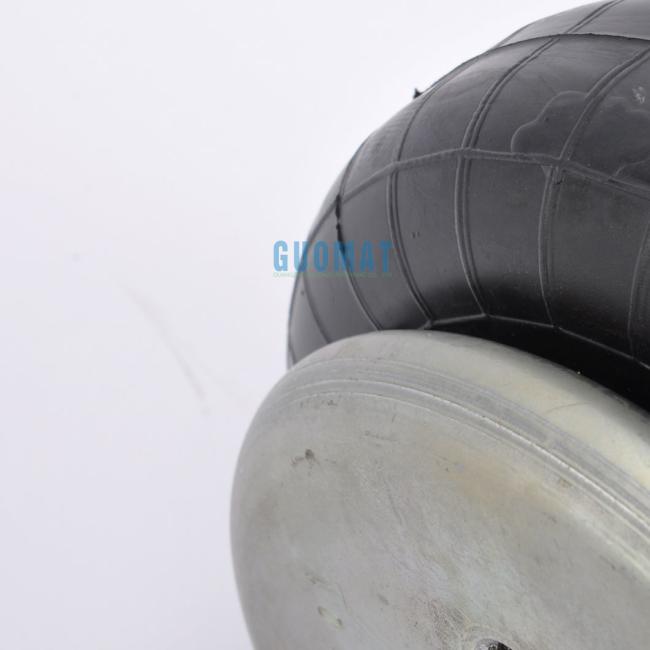

Durable Air Lift Bellows Air Strut Spring Bellow 131 Airbag Suspension Spring
Price:
USD49.9-59.9/PC
MOQ:
5pcs
Delivery Time:
3-7 Working Days
Brand:
GUOMAT
Product Description
Durable Air Lift Bellows Air Strut Spring Bellow 131 Airbag Suspension Spring
Air Spring
Air spring is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities.As the air pressure increases, the air spring can support more load while the spring rate increases.The larger the air spring, the greater the maximum load it can support.
Air Suspension
Air Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs.Computer operated vents on the air springs, suspension sensors, and an onboard air compressor allow the system to maintain ride height and vary the suspension's ride characteristics.
| Item | Air Spring/Shock Absorber Spring/Air Bellows |
| Brand | Guomat/Neutral |
| Model Number | 1B 131 |
| Material | Rubber And Steel |
| Warranty | 1 Year |
| MOQ | 1 PCS If We Have Stock |
| Package |
(1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package |
| Delivery Time | 2-8 Working Days |
| Payment | T/T, L/C, PayPal, Western Union |
| After Service | (1) Examination Before Shipment (2) Follow Up The Customers' Feedback |
Fire-stone Bellow 1B131 Technical Data
Top View
Screw (Nut) Tooth:2XM10X1.5
Screw Center Distance:44.5mm
Air Inlet And Screw Diameter:22.2mm
Air Inlet:1/4 NPTF
Bottom View
Screw (Nut) Tooth:2XM10X1.5
Screw Center Distance:44.5mm
Rubber Bellow
Rubber Bellow: MAX.165MM
The working Stroke:MAX 120mm to MIN 50mm
Maximum Height:120mm
Minimum Height:50mm
Compression Height:70mm
Company Information
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
