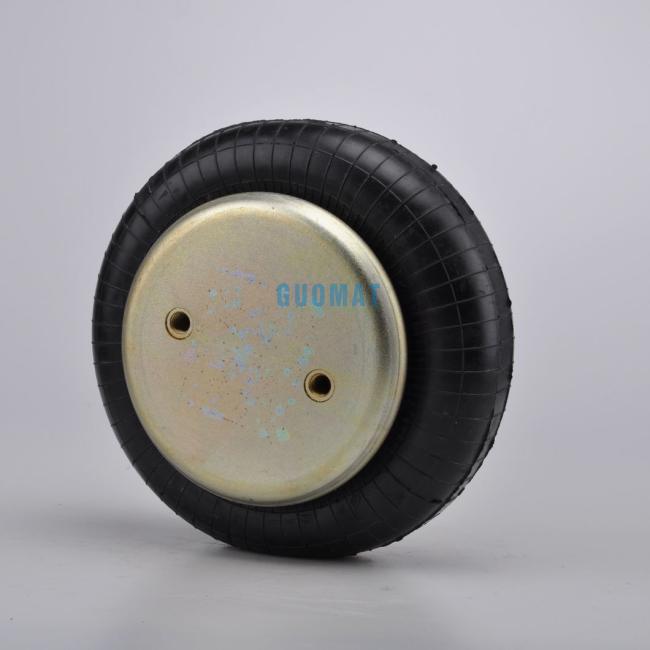

Industrial Convoluted Air Spring Goodyear 1B8-550 90mm Rubber Bellows Type Air Bag
Price:
USD49.9-59.9/PC
MOQ:
5pcs
Delivery Time:
3-7 Working Days
Brand:
GUOMAT
Product Description
Industrial Convoluted Air Spring Goodyear 1B8-550 90mm Rubber Bellows Type Air Bag
Product Description
Item: Univeral Single Convoluted Air Spring 1B8-550
OEM Number: Goodyear 1B8-550
OEM Number: Firestone W01-358-7564
OEM Number: Contitech FS120-10
Place Of Origin: Guangzhou,China
Material: Rubber+Steel
Function: Reduce Shock
Dimension: OEM/Original Size
1B8X4 Air Ride Suspension Fit Technical Data
| Cover Plate | Top Cover Plate Diameter:135mm |
| Bottom Cover Plate Diameter:135mm | |
| Air Inlet | 1/4-18NPT |
| Blind Nut | Screw Center Distance Of Top Cover Plate:70mm |
| Screw Center Distance Of Bottom Cover Plate:70mm | |
| Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC | |
| Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC | |
| Rubber Bellow | Rubber Bellow MAX Diameter:220mm |
| The Working Stroke:109mm |
Deflection(Height min):50mm
Deflection(Height max):140mm
Working stroke:90mm
Measurement d max:230mm
What are the sdvantages of our shock absorbers
Increase driving comfort
Effectively eliminate abnormal sound,noise in the driving process,jitter,make driving more comfortable
Lower fuel consumption and longer life
Reduce fuel consumption,prolong the life of car related chassis parts,reduce the cost of car maintenance
High stability
In the sharp turn,winding road,pothole road,automatic adjutment of the body constant height,to ensure comfort,maintain stability
Six Reasons to choose us
1.Hight stability
2.In situ installation
3.Ride comfort
4.Safe and durable
5.Effective shock absorption
6.Reduce the sound
Warning and Tips
Maintenance of the air springs, Vehicle Check-List
1.Check the air lines and devices of leakage and that they turns freely.
2.Check the bellows bearing for damage, correct fastening, deformation, sharp edges.
3.Check the shock absorbers for operation and impermeability as well as tightness and bearing.
4.Periodically, check nuts and bolts for proper torque. For specific recommendations see manufacturer's manual.
5.Check axle suspension, trailing arms and rods for wear.
6.Check height control valve to see that it is functioning properly. A properly maintained valve will save unneeded maintenance expense.
7.Routine inspection of all of the above according to manufacturer's instructions, will extend the life of your vehicle and reduce your overall maintenance expense.
Air Spring Installation
1.Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
2.Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
3.If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.
Important tips to remember when installing a new unit
1.Check levelling valve, linkage and transmission parts for wear and damage and if necessary replace the damaged parts.
2.Check that the shock absorber for leakages and take a shock absorber test. A defective shock absorber must be replaced.
3.Once the air lines are disconnected, check their entire length for cracks or other damage. Replace worn parts.
4.With the air spring removed, other parts of the air suspension become more accessible. Check for wear or damage of the frame hangers, trailing arm bushings, torque rods, the trailing arms and the air spring mounts. When it is necessary, also replace parts.
5.Check bearing for air spring bellow for external damage, deformation, sharp edges and correct fastening.
6.Before installing the new unit, clean the air spring mounting plates to ensure proper attachment to the suspension.
7.Always use new attaching bolts for the installation and observe the tightening torques. Never use old bolts, because these can fall out.
8.Check the linkage of the levelling valve to see that it is functioning properly. Under load, the linkage should move from the neutral position up to the intake position. This lets air into the springs, which brings the arm back to the neutral position. This lets air into the springs, which brings the arm back to the neutral position. That opens the exhaust valve, allowing air to escape until the arm returns to the neutral position. Then check the driving level.
