150076H-1 0.8 Mpa Industrial Single Bellows Type Convoluted Suspension Air Spring With Flange
Price:
USD49.9-59.9/PC
MOQ:
5pcs
Delivery Time:
3-7 Working Days
Brand:
GUOMAT
Product Description

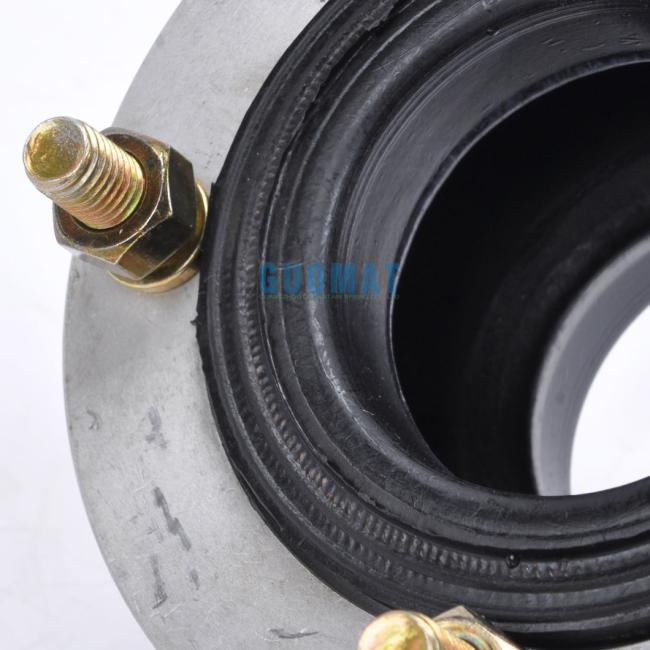

150076H-1 0.8 Mpa Industrial Single Bellows Type Convoluted Suspension Air Spring With Flange
Product Description
150076H-1 Technical Detailed Data
Cover Plate
Top Cover Plate Diameter:133mm
Bottom Cover Plate Diameter:133mm
Gas Hole/Air Inlet/Air Hole
Gas Hole/Air Inlet /Air Hole:---
Rubber Bellows
Rubber Bellows MAX Diameter:160mm
The Working Stroke:MAX 85 mm to MIN 46mm
Maximum Height:85mm
Minimum Height:46mm
Stroke Height:39mm
Blind Nut
Top Cover Plate Screw(Nut):4pcsxM10
Bottom Cover Plate Screw(Nut):4pcsxM10
Top Cover Plate Screw(Nut) Distance:109mm
Bottom Cover Plate Screw(Nut) Distance:109mm
150076H-1 Technical Parameters Table
|
Bearing Capacity |
Inflation Pressure | 0.2Mpa | 0.3Mpa | 0.4Mpa | 0.5Mpa | 0.6Mpa | |
| Installation Height | |||||||
| 45 | (mm) | 436 | 579 | 718 | 860 | 1008 | |
| 55 | (mm) | 299 | 428 | 570 | 700 | 830 | |
| 65 | (mm) | 226 | 335 | 451 | 565 | 670 | |
| 76 | (mm) | 164 | 258 | 344 | 435 | 526 | |
| 85 | (mm) | 122 | 190 | 254 | 330 | 399 | |
| 95 | (mm) | 58 | 94 | 133 | 174 | 220 | |
| Stiffness And Frequency At Design Height | Vertical Stiffness | (Kg/cm) | 107 | 150 | 187 | 231 | 265 |
| Natural frequency | Hz | 4.05 | 3.82 | 3.69 | 3.65 | 3.55 | |
| cpm | 243 | 229 | 221 | 219 | 213 | ||
|
Bearing Capacity |
Inflation Pressure | 0.7Mpa | 0.8Mpa |
0.7Mpa |
|
| Installation Height | |||||
| 45 | (mm) | 1155 | 1301 | 0.37 | |
| 55 | (mm) | 963 | 1088 | 0.46 | |
| 65 | (mm) | 782 | 906 | 0.57 | |
| 76 | (mm) | 621 | 720 | 0.67 | |
| 85 | (mm) | 475 | 544 | 0.75 | |
| 95 | (mm) | 263 | 308 | 0.87 | |
| Stiffness And Frequency At Design Height | Vertical Stiffness | (Kg/cm) | 303 | 319 | |
| Natural frequency | Hz | 3.50 | 3.33 | ||
| cpm | 210 | 199 | |||
