Good Quality Rubber Contitech FS 40-6 1/8 MB Air Spring SP1B04 Phoenix Air Balloon
Price:
USD49.9-59.9/PC
MOQ:
5pcs
Delivery Time:
3-7 Working Days
Brand:
GUOMAT
Product Description
Good Quality Rubber Contitech FS 40-6 1/8 MB Air Spring SP1B04 Phoenix Air Balloon
The detailed Specifications and techical data
The competitive advantage of the product

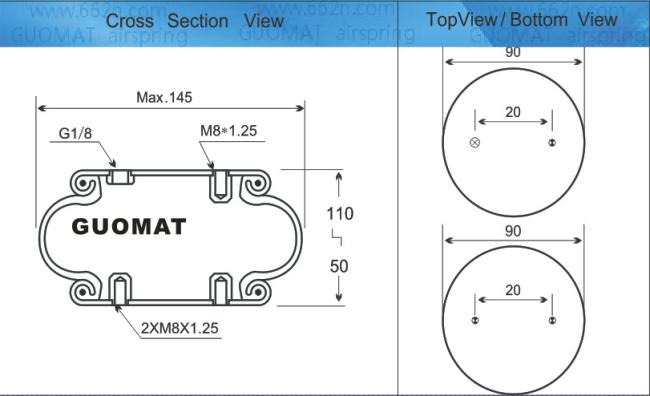

![Rubber Contitech Fs 40-6 1/8 M8 Air Spring]()
![Rubber Contitech Fs 40-6 1/8 M8 Air Spring]()
The detailed Specifications and techical data
| The Max. Diameter | 145mm |
| Air hole/air inlet | G1/8 |
| Working stroke | maximum 110 mm to minimum 50 mm |
| Top plate screw (nut) teeth | M8×1.25 |
| Bottom plate screw (nut) teeth | 2 x M8×1.25 |
| Top cover diamete | 90 mm |
| Bottom cover diameter | 90 mm |
| Screw center distance | 20 mm |
| The air hole distance between the nuts | together |
OEM Number:
| Contitech | FS 40-6 1/8 M8 |
| Contitech | FS406 1/8 M8 |
| Contitech | FS 406 1/8 M8 |
| Phoenix | SP 1 B 04 |
| Phoenix | SP1B 04 |
| Phoenix | SP1B04 |
| Weforma | WBE 100-E1 |
| Weforma | WBE 100E1 |
The competitive advantage of the product
1. The product quality is excellent, natural rubber imported from Thailand, combined with German technology.
2. For products with the same price in the market, Gaomat strives for better quality. For products of the same quality, Gaomat strives for lower prices.
3. More than ten years of production technology, products cover the world.
Pneumatic application – static characteristic values
Force F [lbf]
| Pressure p | [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] |
| Height H [in.] | 4.0 | 199 | 331 | 467 | 607 | 754 | 34 |
| 3.5 | 317 | 492 | 669 | 850 | 1040 | 30 | |
| 3.0 | 413 | 625 | 837 | 1050 | 1280 | 26 | |
| 2.5 | 489 | 730 | 969 | 1210 | 1460 | 20 |
The reated picture
