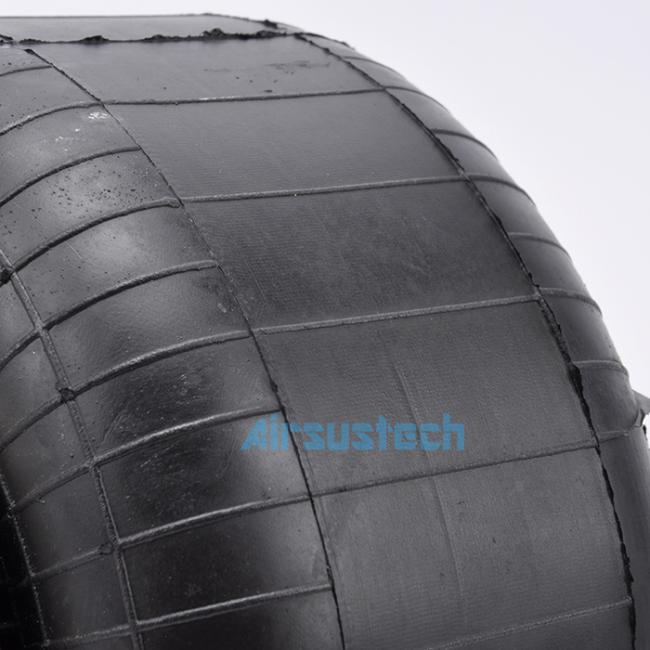

Single Rubber Convoluted Air Spring W01-358-7598 Firestone Air Bags 60mm-180mm Stroke
Single Rubber Convoluted Air Spring W01-358-7598 Firestone Air Bags 60mm-180mm Stroke
OEM NO.
| Firestone | W01-358-7598 |
| Firestone | W01 358 7598 |
| Firestone | W013587598 |
| Firestone | Style 116-1 |
| Goodyear | 1B8-580 |
| Goodyear | 1B 8-580 |
| Goodyear | 1B8580 |
Specifications and Detailed Technical Parameters:GUOMAT 1B7598
- Nut/blind nut
The screw center distance of the top cover plate: 70mm
Screw (nut) teeth of the bottom cover plate: 2X3/8
The screw center distance of the bottom cover plate: 70 mm
- Air hole/air inlet/air fittings
The screw center distance between the air hole and the nut: 35mm
- Cover plate
Diameter of the bottom cover: 135 mm
- Bell rubber bellows
Natural diameter of rubber bellows: 215 mm
Working stroke: minimum 60 mm to maximum 180 mm
Maximum height: 180 mm
Minimum height: 60mm
- Bumper block/bumper block
- Belt loop/Belt loop
With belt loop: No belt loop
Features: The 1B7598 can replace the W01-358-7598. The air spring is designed to maximize the carrying capacity, ride quality and stability of each vehicle. Load support is provided by air pressure, which can be adjusted for each load.
High performance: The air spring is a powerful, low-cost actuator that can operate in a linear or angular manner or be stacked to provide longer travel or greater angular rotation.
High driving flexibility: Air springs can be used as load bearing parts of air suspension systems in machines, cars and buses. As a result, the vehicle remains at a fixed height regardless of the load.
The role of air springs in vibrating conveyors
Air springs are a device used for shock absorption and support, and are often used in vibrating conveyors. Their role is to reduce vibration and impact through the compression and release of air, providing stable support and protection. Air springs can adjust their hardness and height to adapt to different loads and working conditions.
The main roles of air springs in vibrating conveyors include:
- Shock absorption: Air springs can absorb and reduce vibration and impact forces, reducing damage and wear to vibrating conveyors and other equipment.
- Support: Air springs provide stable support force, allowing vibrating conveyors to bear weight and loads and maintain balance.
- Adjustment: Air springs can change their hardness and height by adjusting the pressure of the air to adapt to different working conditions and load requirements.
Do air springs require regular maintenance?
- Regular inspection: Check the appearance and function of the air spring regularly. Check for any damage, air leaks or unusual noises.
- Cleaning and maintenance: Keep the air spring clean to prevent dust and dirt from accumulating. You can use an appropriate cleaner and a soft cloth to clean it.
- Check the air pressure: Make sure the air spring's air pressure is within the appropriate range. According to the manufacturer's recommendations, check and adjust the air pressure regularly to ensure optimal performance.
- Pay attention to the loading limit: Follow the manufacturer's guidance and do not exceed the rated load capacity of the air spring. Overloading may cause excessive compression, wear or damage to the spring.
The related picture of 1B7598
