Specifications and Detailed Technical Parameters: 150076H-1
|
Model Size |
Nominal diameter |
The largest diameter (0.7MPA) |
Bearing capacity at design height |
Stroke | Weight |
Natural frequency (0.7MPA) |
|||
| 0.2MPA | 0.5MPA | 0.7MPA | Minimum compression height | Height of safe elongation | |||||
| 150076H-1 | 104 | 160 | 164 | 435 | 621 | 46 | 85 | 1.4 | 3.5 |
- Nut / Blind Nut
Top Cover Distance Plate Screw (Nut) :109MM
Bottom Cover Plate Screw (Nut) Tooth :4×M10
Screw Center Distance of Bottom Cover Plate : 109MM
- Gas Hole / Air inlet / Air Fitting
- Cover Plate
Bottom Cover Plate Diameter: 133MM
- Rubber Bellows
Rubber Bellows Natural Diameter :140 mm
- Bumper block / Buffer block
- Girdle Hoop / Girdle Ring
Without Girdle Hoop :NO Pieces of Girdle Hoop
|
Bearing Capacity (Kg)
|
Inflation Pressure | 0.2Mpa | 0.3Mpa | 0.4 Mpa | 0.5 Mpa | 0.6 Mpa | 0.7 Mpa | 0.8 Mpa | 0.7 MPa Volume (dm3) |
|
| Installation Height | ||||||||||
| 45 mm | 436 | 579 | 718 | 860 | 1008 | 1155 | 1301 | 0.37 | ||
| 55 mm | 299 | 428 | 570 | 700 | 830 | 963 | 1088 | 0.46 | ||
| 65 mm | 226 | 335 | 451 | 565 | 670 | 782 | 906 | 0.57 | ||
| 75 mm | 164 | 258 | 344 | 435 | 526 | 621 | 720 | 0.67 | ||
| 85 mm | 122 | 190 | 254 | 330 | 399 | 475 | 544 | 0.75 | ||
| 95 mm | 58 | 94 | 133 | 174 | 220 | 263 | 308 | 0.87 | ||
| Stiffness And Frequency At Design Height | Vertical Stiffness(Kg/cm) | 107 | 150 | 187 | 231 | 265 | 303 | 319 | ||
| Natural frequency | Hz | 4.05 | 3.82 | 3.69 | 3.65 | 3.55 | 3.50 | 3.33 | ||
| cpm | 243 | 229 | 221 | 219 | 213 | 210 | 199 | |||
Other types:
150076H-1; 188102H-1; 260130H-1; 280126H-1; 360306H-1; 3B400316
FAQ
Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

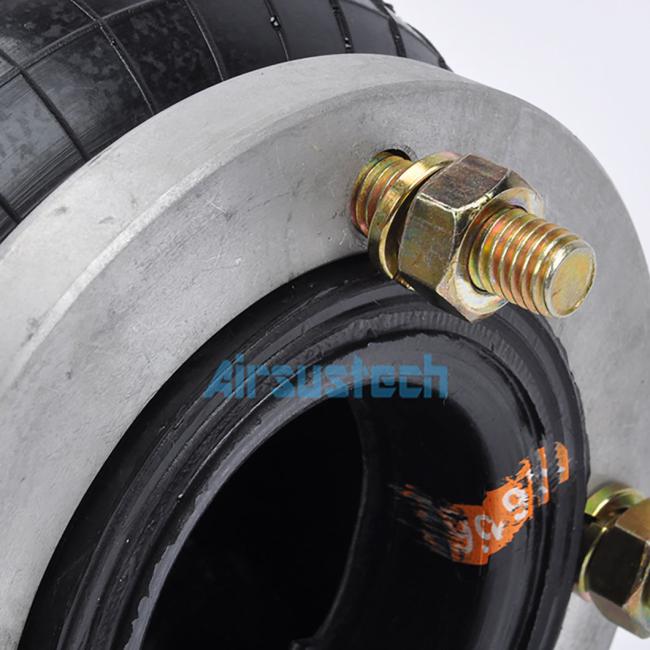

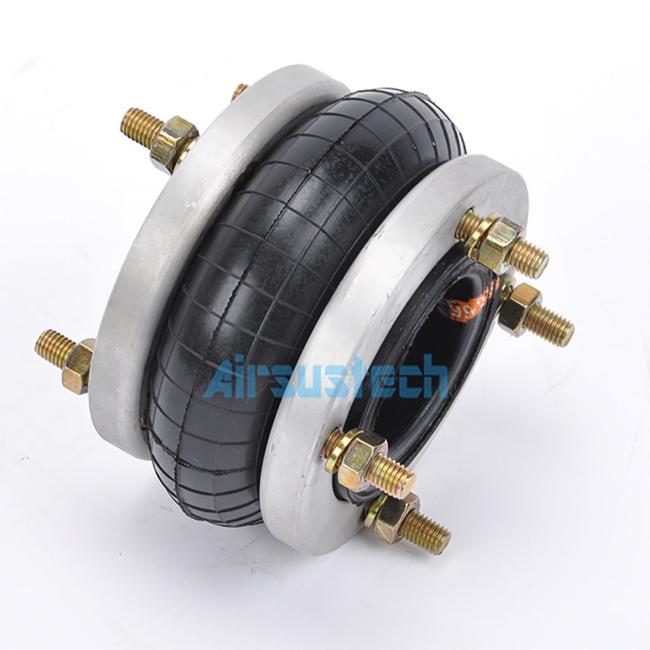

The related picture of 150076H-1
