Single Convoluted Rubber Air Springs Industrial Style 188102h-1 Bags Flange Ring
Single Convoluted Rubber Air Springs Industrial Style 188102h-1 Bags Flange Ring
Specifications and Detailed Technical Parameters: 188102H-1
|
Model Size |
Nominal diameter |
The largest diameter (0.7MPA) |
Bearing capacity at design height | Stroke | Weight | |||
| 0.2MPA | 0.5MPA | 0.7MPA | Minimum compression height | Height of safe elongation | ||||
| 188102H-1 | 120 | 210 | 208 | 587 | 862 | 52 | 115 | 2.25 |
- Nut / Blind Nut
Bottom Cover Plate Screw (Nut) Tooth :6×M10
- Gas Hole / Air inlet / Air Fitting
- Cover Plate
Bottom Cover Plate Diameter: 175MM
- Bumper block / Buffer block
- Girdle Hoop / Girdle Ring
Other types:
| 086060H-1 | 130142H-2 | 252163H-2 |
| 120060H-1 | 156130H-2 | 260230H-2 |
| 150076H-1 | 160166H-2 | 280214H-2 |
| 188102H-1 | 168132H-2 | 290265H-2 |
| 215120H-1 | 200142H-2 | 300170H-2 |
| 235118H-1 | 220200H-2 | 310214H-2 |
| 235150H-1 | 230214H-2 | 330214H-2 |
| 260135H-1 | 235152H-2 | 330254H-2 |
| 280126H-1 | 235210H-2 | 350255H-2 |
| 320124H-1 | 250180H-2 | 360214H-2 |
| 380221H-2 | 400255H-2 | 480217H-2 |
| 400217H-2 | 430255H-2 | 520217H-2 |
FAQ
Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

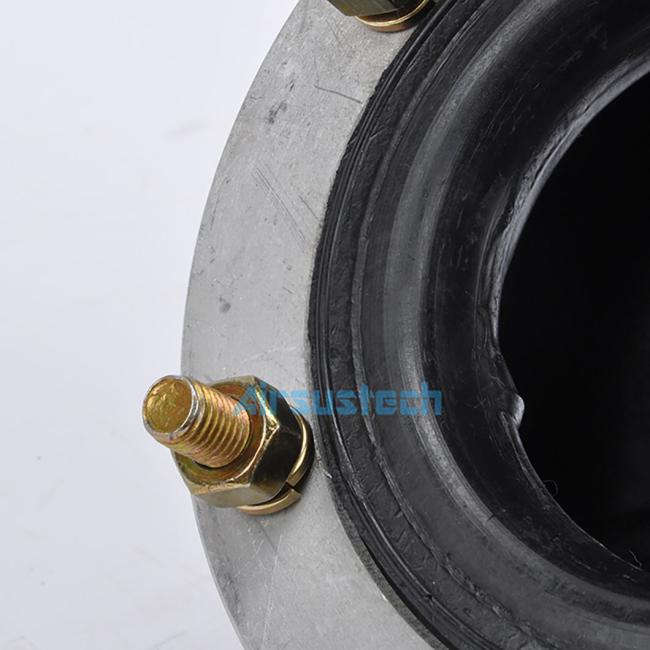

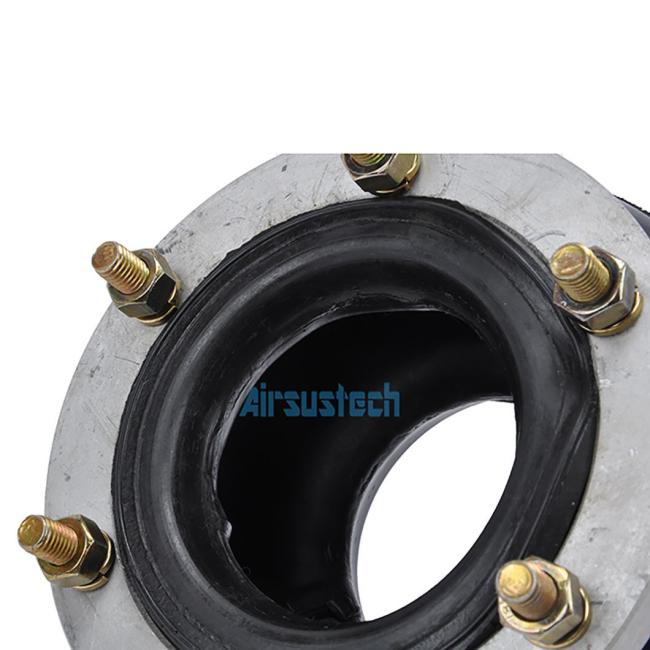

The related picture of 188102H-1
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
