280126H-1 Air Shock Absorber Maximum Diameter 300mm Bags Air Spring Assembly
280126h-1 Air Shock Absorber Maximum Diameter 300mm Bags Air Spring Assembly
Specifications and Detailed Technical Parameters: 280126H-1
|
Model Size |
Nominal diameter |
The largest diameter (0.7MPA) |
Bearing capacity at design height | Stroke | Weight |
Natural frequency (0.7MPA) |
|||
| 0.2MPA | 0.5MPA | 0.7MPA | Minimum compression height | Height of safe elongation | |||||
| 280126H-1 | 195 | 300 | 643 | 1662 | 2370 | 52 | 115 | 2.25 | 2.46 |
- Nut / Blind Nut
Bottom Cover Plate Screw (Nut) Tooth :10×M10
- Gas Hole / Air inlet / Air Fitting
- Cover Plate
Bottom Cover Plate Diameter: 220mm
- Rubber Bellows
Rubber Bellows Natural Diameter :132 mm
- Bumper block / Buffer block
- Girdle Hoop / Girdle Ring
Other types:
| Model Size | Nominal diameter | The largest diameter(0.7MPA) | Bearing capacity at design height | Natural frequency(0.7MPA) | Stroke | Weight | |||
| 0.2MPA | 0.5MPA | 0.7MPA | Minimum compression height | Height of safe elongation | |||||
| 086060H-1 | 50 | 110 | 44 | 123 | 175 | 5.18 | 42 | 90 | 1 |
| 120060H-1 | 80 | 130 | 122 | 313 | 444 | 3.79 | 42 | 65 | 1.6 |
| 150076H-1 | 104 | 160 | 164 | 435 | 621 | 3.5 | 46 | 85 | 1.4 |
| 188102H-1A | 120 | 210 | 208 | 587 | 862 | 3.05 | 52 | 115 | 2.25 |
| 215120H-1 | 125 | 233 | 294 | 768 | 1109 | 2.83 | 42 | 140 | 2.9 |
| 235118H-1 | 180 | 260 | 474 | 1185 | 1684 | 2.52 | 60 | 136 | 2.6 |
| 235150H-1 | 180 | 260 | 441 | 1205 | 1740 | 2.29 | 65 | 172 | 3.1 |
| 260135H-1 | 170 | 290 | 425 | 1150 | 1670 | 2.4 | 55 | 155 | 2.95 |
| 280126H-1 | 195 | 300 | 643 | 1662 | 2370 | 2.46 | 50 | 144 | 3.75 |
| 320124H-1 | 230 | 340 | 798 | 2071 | 2965 | 2.28 | 52 | 142 | 3.9 |
| 130142H-2 | 80 | 150 | 80 | 219 | 314 | 3.12 | 72 | 162 | 4.4 |
| 156130H-2 | 118 | 170 | 70 | 146 | 3.15 | ||||
| 160166H-2 | 100 | 175 | 149 | 413 | 593 | 2.3 | 82 | 190 | 2.35 |
| 168132H-2 | 120 | 185 | 229 | 589 | 832 | 2.53 | 72 | 151 | 2.2 |
| 200142H-2 | 150 | 220 | 326 | 843 | 1195 | 2.02 | 78 | 162 | 3.05 |
| 220200H-2 | 148 | 250 | 354 | 920 | 1310 | 1.89 | 90 | 229 | 3.22 |
| 230214H-2 | 150 | 255 | 388 | 1023 | 1457 | 1.93 | 88 | 246 | 4.05 |
| 235152H-2 | 180 | 250 | 461 | 1180 | 1667 | 1.91 | 80 | 174 | 3.25 |
| 235210H-2 | 180 | 250 | 80 | 245 | |||||
| 250180H-2 | 185 | 270 | 520 | 1345 | 1904 | 1.74 | 84 | 206 | 3.95 |
| 252163H-2 | 192 | 275 | 422 | 1142 | 1644 | 1.73 | 82 | 238 | 4.2 |
| 260230H-2 | 170 | 290 | 374 | 1036 | 1506 | 1.78 | 90 | 263 | 4.85 |
| 280214H-2 | 200 | 305 | 668 | 1741 | 2480 | 1.68 | 88 | 246 | 5.57 |
| 290265H-2 | 205 | 320 | 440 | 1250 | 1800 | 1.19 | 90 | 303 | 6.55 |
| 300170H-2 | 240 | 320 | 849 | 2156 | 3045 | 1.74 | 85 | 195 | 5.35 |
| 310214H-2 | 230 | 330 | 813 | 2078 | 2992 | 1.89 | 88 | 245 | 7 |
| 330214H-2 | 250 | 355 | 1064 | 2749 | 3897 | 1.65 | 88 | 246 | 7.75 |
| 330254H-2 | 230 | 355 | 861 | 2222 | 3166 | 1.75 | 88 | 290 | 7.24 |
| 350255H-2 | 250 | 380 | 1095 | 2851 | 4098 | 1.45 | 90 | 295 | 8.2 |
| 360214H-2 | 280 | 380 | 1250 | 3220 | 4570 | 1.36 | 88 | 246 | 7.9 |
| 380221H-2 | 300 | 405 | 1432 | 3765 | 5352 | 1.34 | 90 | 255 | 8.5 |
| 400217H-2 | 320 | 430 | 1753 | 4450 | 6300 | 1.66 | 90 | 249 | 11.1 |
| 400255H-2 | 300 | 430 | 1465 | 3752 | 5256 | 1.55 | 90 | 295 | 10.4 |
| 430255H-2 | 330 | 460 | 1760 | 4526 | 6427 | 1.43 | 90 | 295 | 10.2 |
| 480217H-2 | 400 | 510 | 2723 | 6850 | 9700 | 1.27 | 88 | 249 | 13.8 |
| 520217H-2 | 440 | 550 | 3070 | 7850 | 11094 | 1.41 | 90 | 249 | 14.5 |
| 580214H-2 | 500 | 600 | 3978 | 10137 | 14293 | 1.65 | 88 | 246 | 13.3 |
| 630262H-2 | 530 | 660 | 4371 | 10585 | 15801 | 1.48 | 90 | 300 | 19.9 |
| 680262H-2 | 580 | 710 | 5278 | 13596 | 19313 | 1.35 | 90 | 302 | 18.6 |
| 200206H-3 | 150 | 220 | 229 | 634 | 888 | 1.68 | 116 | 236 | 3.75 |
| 250260H-3 | 185 | 270 | 507 | 1344 | 1924 | 1.7 | 116 | 299 | 5.5 |
| 255230H-3 | 200 | 280 | 566 | 1460 | 2070 | 1.3 | 116 | 264 | 5.55 |
| 255322H-3 | 200 | 290 | 116 | 400 | 5.85 | ||||
| 310306H-3 | 230 | 330 | 861 | 2239 | 3170 | 1.3 | 120 | 354 | 7.3 |
| 330306H-3 | 250 | 355 | 1035 | 2730 | 3892 | 1.4 | 120 | 354 | 8.69 |
| 360306H-3 | 280 | 380 | 1250 | 3220 | 4570 | 1.3 | 122 | 360 | 8.25 |
| 380316H-3 | 300 | 405 | 1401 | 3672 | 5235 | 1.32 | 122 | 370 | 10.95 |
| 400312H-3 | 320 | 430 | 1724 | 4436 | 6308 | 1.19 | 122 | 360 | 11.8 |
| 430370H-3 | 330 | 460 | 1716 | 4435 | 6333 | 1.20 | 122 | 430 | 13.8 |
| 480312H-3 | 400 | 510 | 2650 | 6883 | 9768 | 1.17 | 122 | 360 | 16.5 |
| 520312H-3 | 400 | 550 | 3046 | 7932 | 11262 | 1.32 | 122 | 360 | 20.1 |
| 580306H-3 | 500 | 600 | 3950 | 10181 | 14409 | 1.22 | 118 | 354 | 19.16 |
| 630376H-3 | 530 | 660 | 4243 | 11045 | 45612 | 0.94 | 122 | 436 | 24.1 |
| 680376H-3 | 580 | 710 | 5259 | 13620 | 19339 | 1.27 | 122 | 436 | 27.6 |
Warning
Please pay attention to the following two points when using this product
1. Be sure to comply with the pressure regulations. Applying pressure in excess of the regulations may damage the product or cause serious injury to the human body.
2. Please confirm whether the product is damaged at any time. The occurrence of damage will reduce the durability of the product and lead to rupture.
FAQ
Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

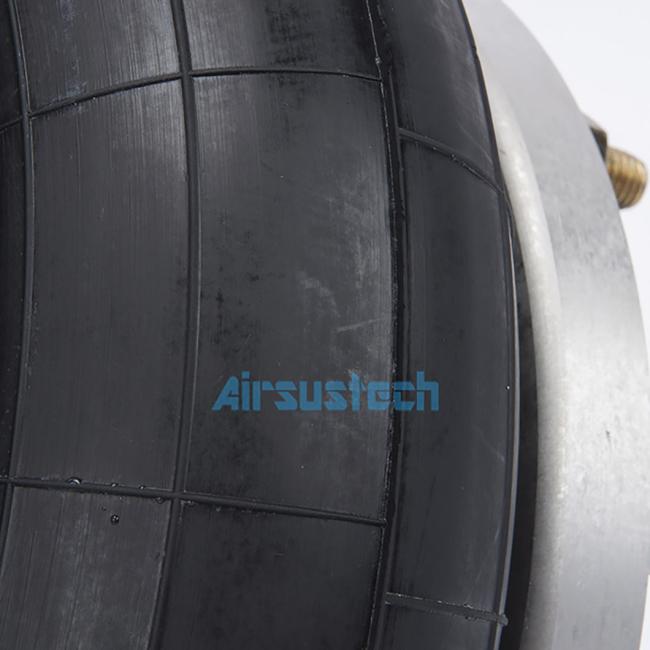

The related picture of 280126H-1
