Phoenix Sp 1 B 07 Suspension Air Spring Single Convoluted Air Bag G1/4 Gas Hole
Phoenix Sp 1 B 07 Suspension Air Spring Single Convoluted Air Bag G1/4 Gas Hole
Specifications and Detailed Technical Parameters: 1B5022
| Top plate screw (nut) teeth | 2×M8×1.25 |
| The screw center distance of the top cover plate | 53mm |
| Screw (nut) teeth of the bottom cover plate | 2×M8×1.25 |
| The screw center distance of the bottom cover plate | 53mm |
| Air hole/air inlet | G1/4 |
| Top plate diameter: | 135 mm |
| Diameter of the bottom cover | 135 mm |
| MAX. Rubber Bellow Diameter | 215mm |
Cross References
Phoenix SP 1 B 07
Phoenix SP1 B 07
Phoenix SP1B 07
Phoenix SP1B07
Phoenix SP 1B 07
Phoenix SP 1B07
Applications
Rubber actuators, compared with traditional products (rigid actuators, spring...) offer numerous advantages such as
- Flexibility (no angle or alignment problem)
- Compactness
- Power / price ratio
- No maintenance or lubrication required
- Durability
- Reliability
- Resistance to aggressive or hot conditions
Other Types we can offer
| SP 1 B 04 | SP 2 B 05 R-a | 2B 07 R | 2B07R |
| SP 1 B 05 | SP 2 B 07 R | 2B 12 R | 2B12R |
| SP 1 B 07 | SP 2 B 12 R | 2B 12 R-3 | 2B12R-3 |
| SP 1 B 12 | SP 2 B 12 R-1 | 2B 15 R | 2B15R |
| SP 1 B 22 | SP 2 B 12 R-2 | 2B 20 R | 2B20R |
| SP 1 B 34 | SP 2 B 12 R-3 | 2B 20 R-9 | 2B20R-9 |
| SP1B04 | SP 2 B 22 R | 2B 21 R | 2B21R |
| SP1B05 | SP 2 B 34 R | 2B 21 R-9 | 2B21R-9 |
| SP1B07 | SP 2 B 34 R-b | 2B 22 R | 2B22R |
| SP1B12 | SP2B05R-a | 2B 22 R a-9 | 2B22Ra-9 |
| SP1B22 | SP2B07R | 2B 34 R | 2B34R |
| SP1B34 | SP2B12 R | 2B 34 R-b | 2B34R-b |
| SP2B12R-1 | 2B 49 R-a | 2B49R-a | |
| SP2B12R-2 | 2B 49 R-b | 2B49R-b | |
| SP2B12R-3 | 2B 85 R | 2B85R | |
| SP2B22R | 2B 85 R-a | 2B85R-a | |
| SP2B34R | |||
| SP2B34R-b |
The Reason Why Choose Us?
1. Variety of products and high quality. We have hundreds of models to meet your needs. And our products have passed ISO/TS 16949:2009 certification, reaching international standards, with high quality.
2. Respond promptly. We generally reply within one day.
3. Good after-sale service. Customer satisfaction is our greatest pursuit. Once the product has any damage or quality problem, please advise us and we will replace it.

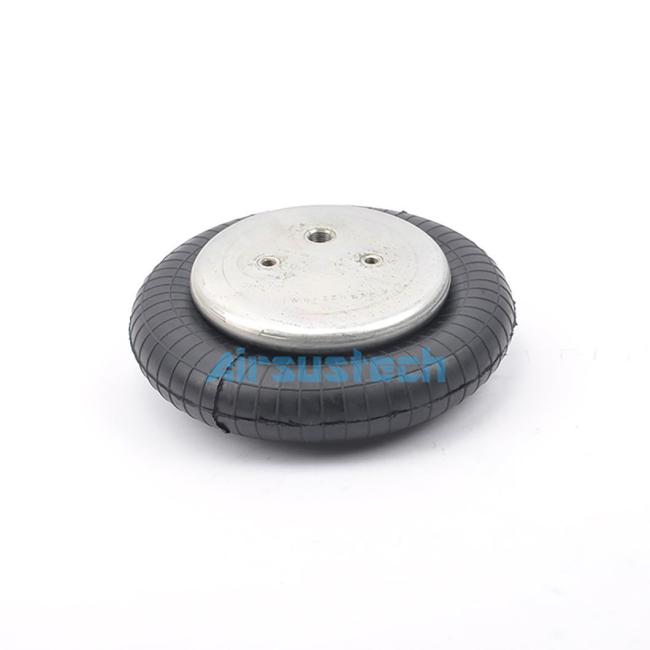

The related picture of 1B5022
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
