FS 310-12 VP Contitech One Convoluted Air Spring Rubber Industrial Helper Bags
FS310-12VP Contitech One Convoluted Air Spring Rubber Industrial Helper Bags
230116-1 Air springs can replace Phoenix 1B 20/ Phoenix 1B20/ Phoenix1B20/ ContiTech FS 310-12 VP/ ContiTech FS310-12VP.
Specifications and Detailed Technical Parameters: 230116-1
| Loading capacity max. 1 Load capacity max. (7 bar) | 23.80 kN |
| Max. Lifting pressure 1 Max. Pressure for lifting processes | 8.0 bar |
| Diameter max. 1 diameter max. | 305 mm |
| Required space 1 space requirement Ø | 330 mm |
| Height max.1 Max. Height | 175 mm |
| Height min. 1 min. Height | 55 mm |
| Weight 1 weight | 1.02 kg |
| Force to collapse to min. height 1 restoring force to the minimum height | |
Nut / Blind Nut
The Long Of The Nut:25 mm
Top Cover Plate Screw number: 8 pcs
Bottom Cover Plate Screw number : 8 pcs
Top Cover Plate Screw (Nut) Tooth : M10
Screw Center Distance of Top Cover Plate :
Bottom Cover Plate Screw (Nut) Tooth : M10
Screw Center Distance of Bottom Cover Plate :
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
Cover Plate
Top Diameter: 172 mm
Bottom Cover Plate Diameter: 172 mm
Rubber Bellows
Rubber Bellows Natural Diameter : 150 mm
Rubber Bellows Natural Height :115 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
Without Girdle Hoop
Product advantage
Guangzhou Guomat Air Spring Co., Ltd. was established in 2008, so far has more than 10 years of experience in air spring. We have been committed to do professional damping equipment, thanks to the following product advantages, our air spring has been popular at home and abroad.
Imported rubber: combined with advanced sol technology, durable, heat resistance, aging resistance and other characteristics.
Integrated casting process: the use of integrated casting process, durable, strong air tightness, anti-leakage and anti-blowout
Easy installation: the shape and size are the same as the original, directly replace the original air spring, convenient installation
Made of fine steel: made of fine steel, anti-fracture, long service life

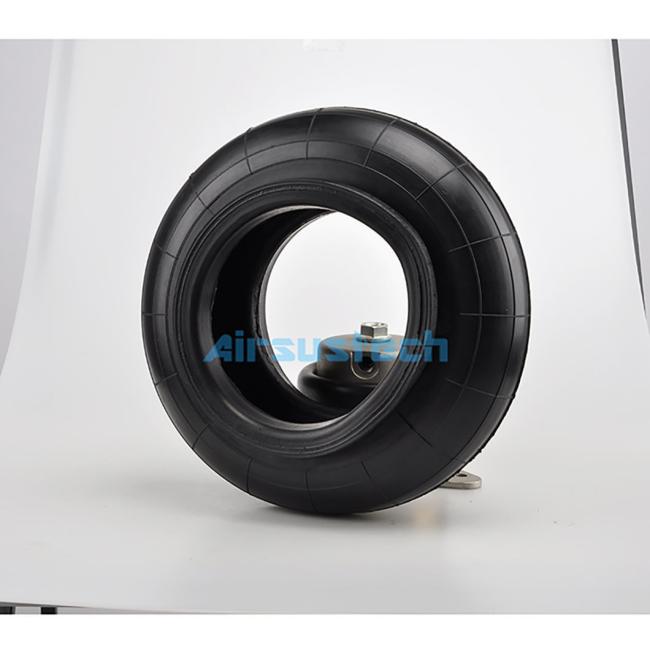

The related picture of 230116-1
