Firestone W01R584052 Assembly Industrial Air Spring SP1368 Dunlop For Paper Machine
Firestone W01R584052 Assembly Industrial Air Spring SP1368 Dunlop For Paper Machine
Product Details
| Type | Convoluted Air Spring | OEM No. | W01-R58-4052 |
| Item No. | 6x1 | Other No. | SP1368 |
| Rubber Type | Natural Rubber | Plate Dia | 153mm |
Original Equipment Manufacturer Number
FIRESTONE : W01-R58-4052 , W01 R58 4052 , W01R584052 , W01/R58/4052
DUNLOP : SP1368 , SP 1368
Firestone Bellow Number : W01-R58-4052
Dunlop : SP1368 , 6X1 , 6''x1
Technical Data
Nut/Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4xM10X1.5
Bottom Cover Plate Screw (Nut) Tooth : 4xM10X1.5
Cover Plate
Top Cover Plate Diameter : 153mm
Bottom Cover Plate Diameter : 153mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet :1/2 BSP
Rubber Bellow
Rubber Bellows MAX Diameter :153mm
Firestone Flange Air Spring
| Rubber Bellows Number | Complete Part Number |
| 6X1 | W01-R58-4052 |
| 6X2 | W01-R58-4053 |
| 6X3 | W01-R58-4095 |
| 8X1 | W01-R58-4054 |
| 8X2 | W01-R58-4055 |
| 8X3 | W01-R58-4056 |
| 10X1 | W01-R58-4057 |
| 10X2 | W01-R58-4058 |
| 10X3 | W01-R58-4059 |
| 10X3 | W01-R58-4086 |
| 12X1 | W01-R58-4060 |
| 12X2 | W01-R58-4038 |
| 12X2 | W01-R58-4061 |
| 12X2 | W01-R58-4073 |
| 12X3 | W01-R58-4037 |
| 12X3 | W01-R58-4062 |
| 12X3 | W01-R58-4091 |
| 14 1/2X1 | W01-R58-4063 |
| 14 1/2X2 | W01-R58-4064 |
| 14 1/2X2 | W01-R58-4074 |
| 14 1/2X2 | W01-R58-4075 |
| 14 1/2X3 | W01-R58-4065 |
| 14 1/2X3 | W01-R58-4100 |
| 16X1 | W01-R58-4066 |
| 16X2 | W01-R58-4067 |
| 16X3 | W01-R58-4068 |
How to Install Flange Air Spring
Preparation: Make sure you have the right tools and materials, including flange air spring, bolts, washers, etc.
Cleaning: Before installation, make sure the flange and connection surface are clean and dust-free. Use a detergent and cloth to clean the surface to ensure a good seal.
Installing flange air spring: Place the flange air spring on the connection surface, making sure it is aligned with the flange and connection surface.
Securing flange air spring: Use bolts and washers to secure the flange air spring to the connection surface. Tighten with the correct torque as needed.

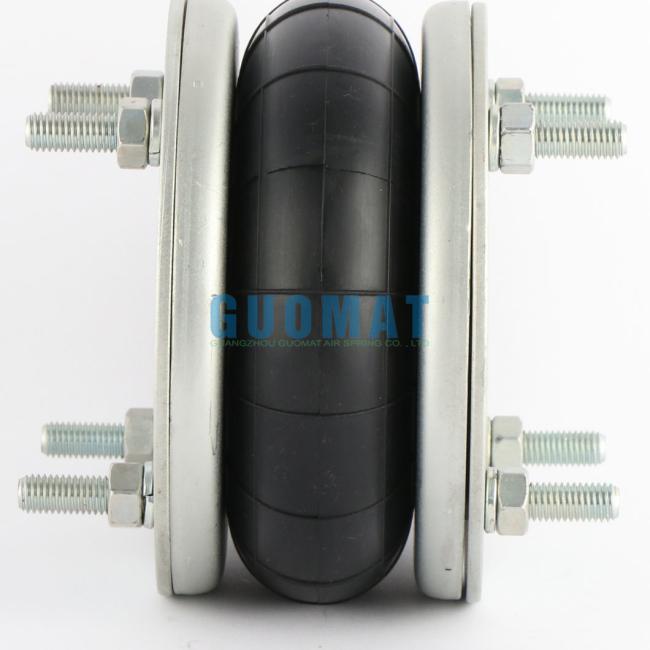

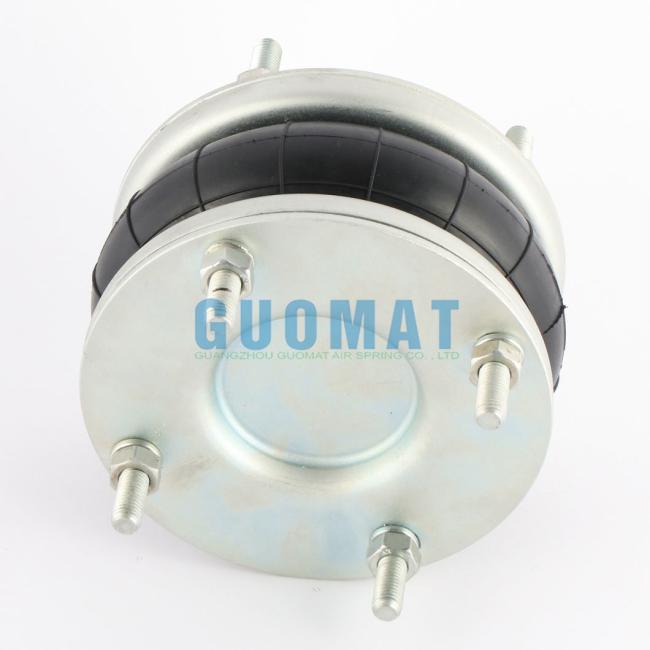

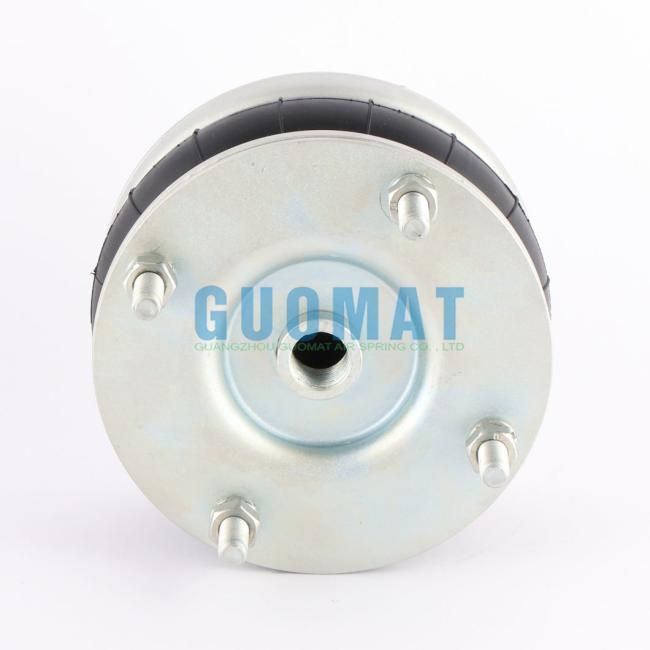

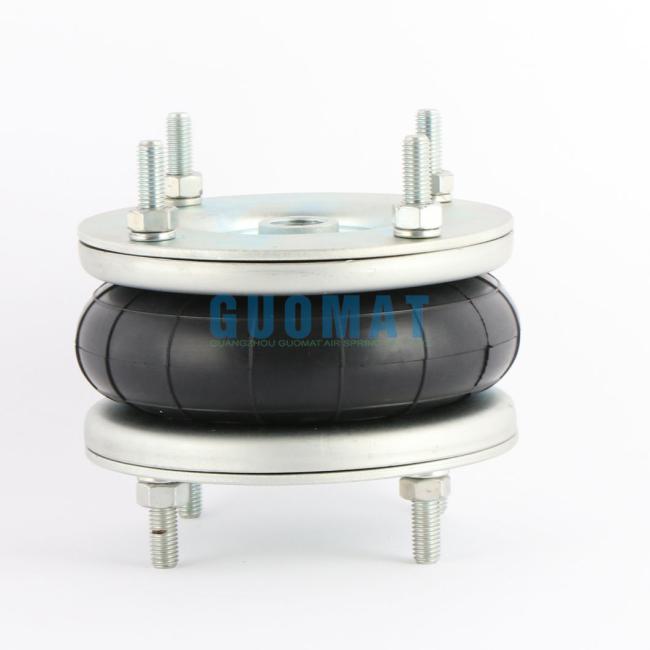

Product Images
