Firestone W01-358-7451 Industrial Single Convoluted Air Spring Style 110 Airstroke
Firestone W01-358-7451 Industrial Single Convoluted Air Spring Style 110 Airstroke
Product Description
| Item | Air Spring/Shock Absorber Spring/Air Bellows |
| Brand | Guomat/Neutral |
| Model Number | W01-358-7451 |
| Material | Rubber And Steel |
| Warranty | 1 Year |
| MOQ | 1 PCS If We Have Stock |
| Package | (1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package |
| Delivery Time | 2-8 Working Days |
| Payment | T/T, L/C, PayPal, Western Union |
| After Service | (1) Examination Before Shipment (2) Follow Up The Customers' Feedback |
| Main products we sell | Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump |
OEM Number
FIRESTONE W01-358-7451
FIRESTONE W013587451
FIRESTONE W01 358 7451
Cover Plate Diameter: 4.50 inch
Blind Nuts: 2X3/8-16 (5/8 Deep)
Gas Hole: 1/4 NPT
Center Distance Between Blind Nuts: 1.75 inch
The Natural Outer Diameter: 8.1 inch
Max.Height: 6 inch
Min.Height: 2.1 inch
| Force Table | ||||||
| Assembly Height (in.) | Volume@100 PSIG(in3) | Pounds Force | ||||
| @20 PSIG | @40 PSIG | @60 PSIG | @80 PSIG | @100 PSIG | ||
| 4.0 | 117 | 390 | 810 | 1240 | 1700 | 2160 |
| 3.0 | 490 | 490 | 1010 | 1540 | 2090 | 2650 |
Every standard air spring consists of 4 layers.
•The inner layer which actually contains the air.
•The first layer of fabric reinforced rubber applied
at a specific angle.
•The second layer of fabric reinforced rubber which
is laid to a specific angle to the first layer.
•The cover to protect the bias fabric plies.
Style 110 Firestone Air Spring
W01-358-7451: Blind nuts,1/4 NPT
W01-358-7484: Blind nuts,3/4 NPT
W01-358-0112: Socket head aluminum bead rings(bolts,nuts,washers not invluded-use 1/4 cap screws)
W01-358-0100: Rubber bellows only

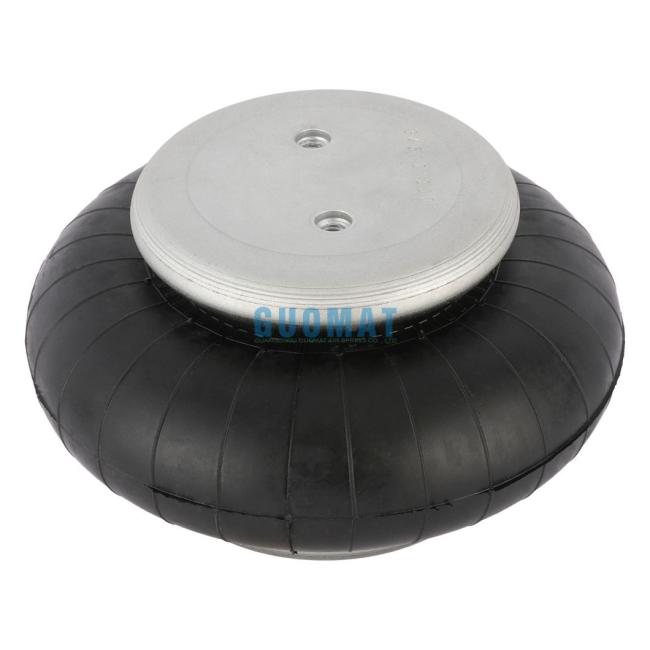

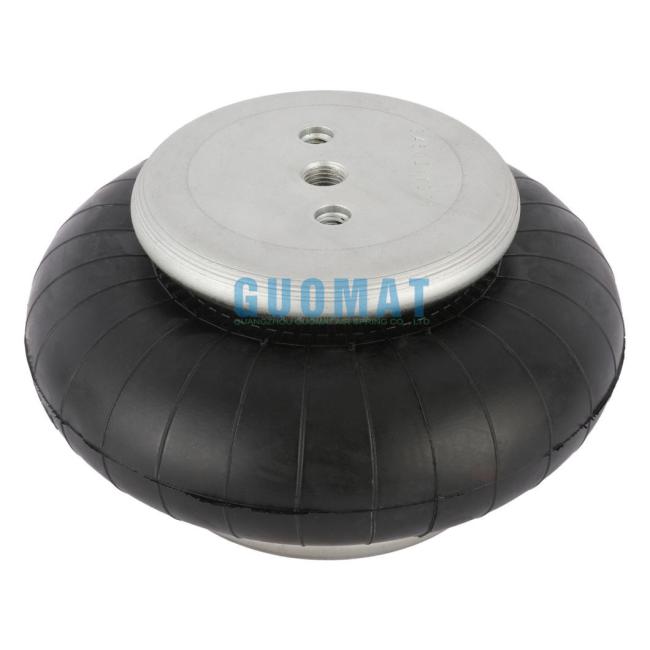

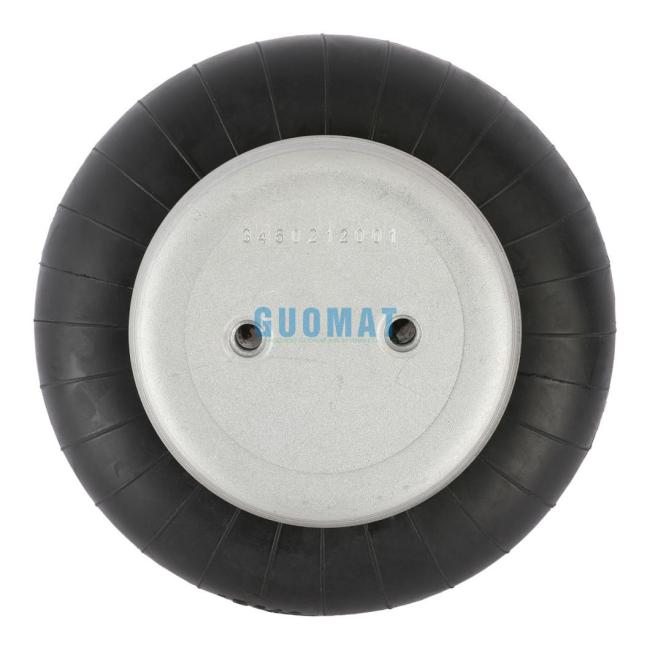

The pictures of air spring/air actuator/air ballon
