Firestone W01-358-7564 Single Bellow Air Spring 1B8X4 Industrial Air Suspension Bags
Price:
USD49.9-59.9/PC
MOQ:
5pcs
Delivery Time:
3-7 Working Days
Brand:
GUOMAT
Product Description

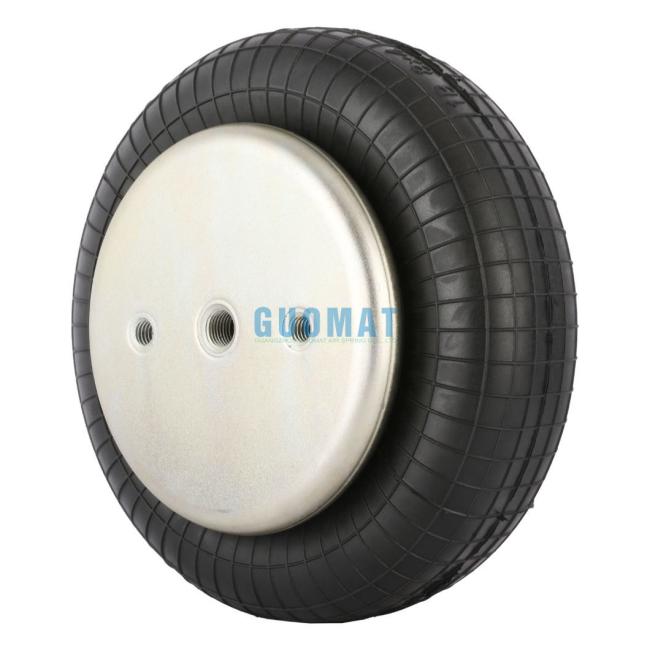

Firestone W01-358-7564 Single Bellow Air Spring 1B8X4 Industrial Air Suspension Bags
Item Name : Steel Single Convoluted Air Bag
Product Number : 1B 8x4
OEM Number : W01-358-7564 ; 1B8-550 ; FS120-10
Factory Warranty : 12 Months
Product Material : Natural Rubber and Steel
Package : Strong Carton Box
Delivery Time : 2-8 working day
Spring Weight : 2.4KG

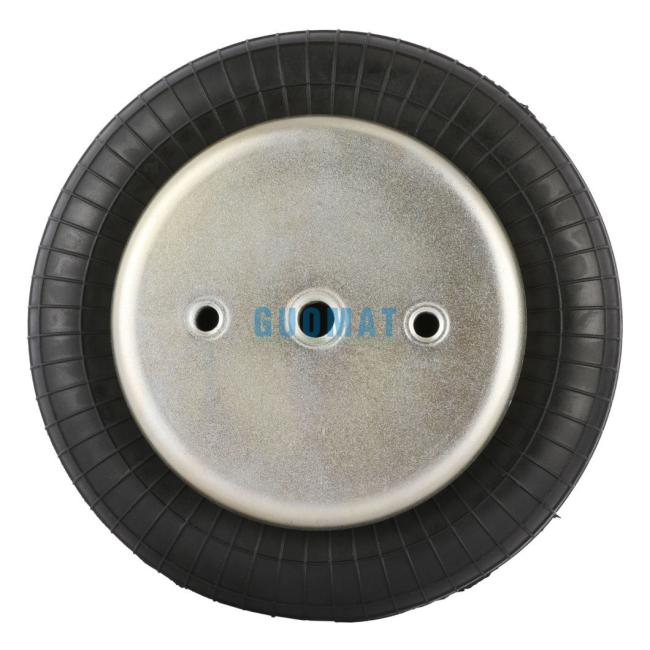

| Top Cover Plate Diameter : 135mm |

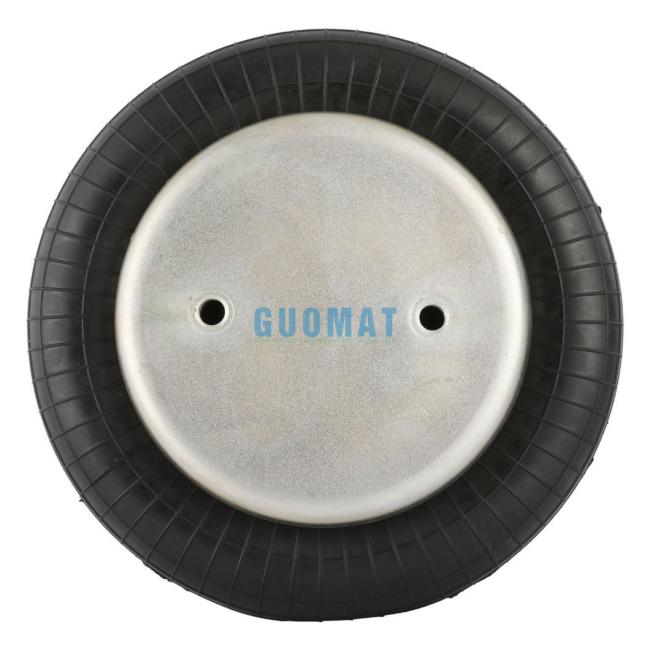

| Bottom Cover Plate Diameter : 135mm |
| Top Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC |
| Screw Center Distance of Top Cover Plate : 70mm |
| Bottom Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC |
| Screw Center Distance of Bottom Cover Plate : 70mm |
| Gas Hole : 1/4 NPTF |
| The Rubber Bellow MAX Diameter : 230mm |
| The Working Stroke : MAX 140mm To MIN 50mm |
| Maximum Height : 140mm |
| Minimum Height : 50mm |
|
Compression Height : 90mm |
Pneumatic application – static characteristic values
Force F [kN]
| Pressure p | bar | 3 | 4 | 5 | 6 | 7 | 8 | Vol.V(I) |
| Height H [mm] | 120 | 4.2 | 5.6 | 7.2 | 8.4 | 10.2 | 11.7 | 2.1 |
| 110 | 4.8 | 6.6 | 8.2 | 9.9 | 11.6 | 13.4 | 2 | |
| 100 | 5.6 | 7.4 | 9.2 | 11.2 | 13.1 | 15 | 1.8 | |
| 90 | 6 | 8 | 10.1 | 12.2 | 14.2 | 16.4 | 1.6 | |
| 80 | 6.5 | 8.6 | 10.9 | 13.2 | 15.3 | 17.6 | 1.4 | |
| 70 | 6.8 | 9.2 | 11.4 | 13.8 | 16.1 | 18.4 | 1.3 | |
| 60 | 7.1 | 9.4 | 12 | 14.4 | 16.6 | 19.2 | 1.1 |
