Firestone W01-358-7460 Air Suspension Spring For Industrial Lifting Air bags

Firestone W01-358-7460 Industrial Air Suspension For Industrial Lifting Air bags

Product Information

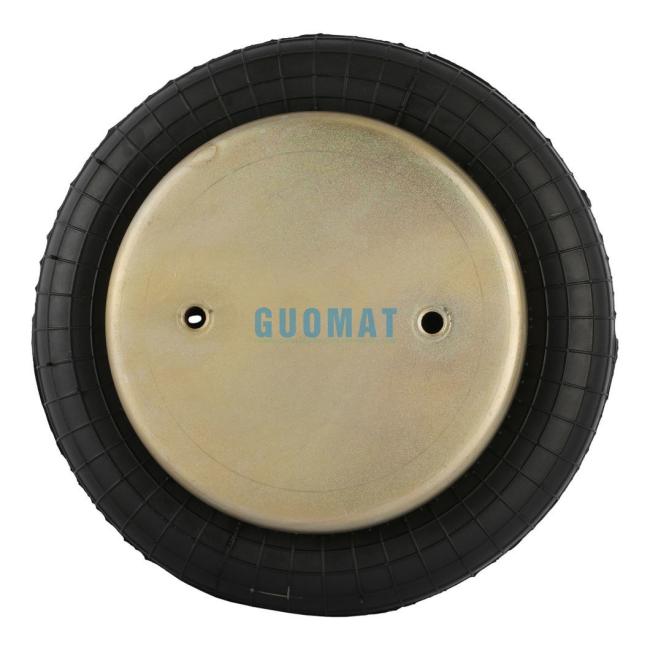

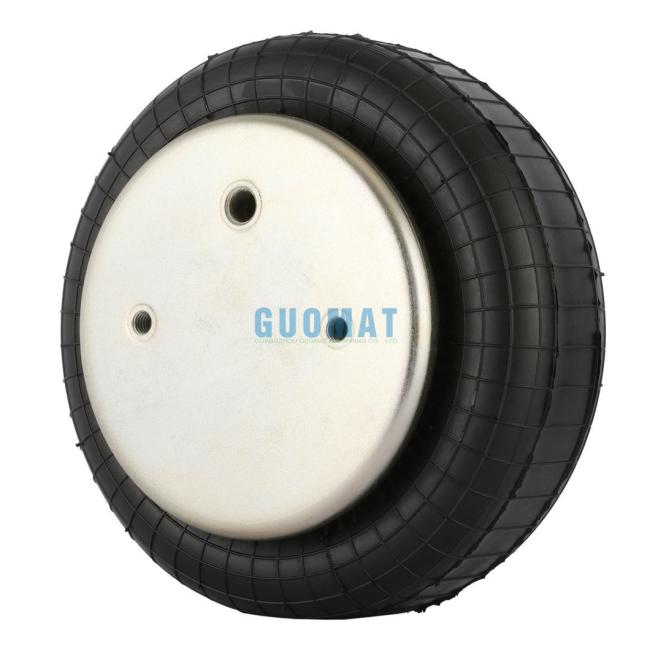

Item Name : Steel Single Convoluted Air Bag

Product Number : 1B 9x5

Goodyear: 1B9-202
Goodyear: 578 91 3 201

Factory Warranty : 12 Months

Product Material : Natural Rubber and Steel

Package : Strong Carton Box

Delivery Time : 2-8 working day

Spring Weight : 2.4KG

1B9X5 Reference Number

GOODYEAR  1B9-202 / 1B9202 / 578913201 / 578 91 3 201

FIRE-STONE   W013587460 / W01-358-7460 / w01-358-7460

Product Technical Data

Cover Plate

Top Cover Plate Diameter : 160mm

Bottom Cover Plate Diameter : 160mm

Nut/ Blind Nut

Top Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC

Screw Center Distance of Top Cover Plate : 89mm

Bottom Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 89mm

Distance Between Gas Hole and Screw : 44.5mm

Gas Hole/Air Inlet/Air Fitting

Gas Hole : 1/4-18 NPTF

Rubber Bellow

The Rubber Bellow MAX Diameter : 222mm

The Working Stroke : MAX 160mm To MIN 60mm

Maximum Height : 160mm

Minimum Height : 60mm

Compression Height :100mm

Specification
♦Install
Although they serve similar functions, air springs are much less expensive than air cylinders and other springs. When deflated, air springs have a small footprint and are easy to handle and connect to machinery.

♦Maintain
Maintenance procedures for air springs tend to be minimal, air springs require no lubrication, and there are no seals or guides that can become misaligned or damaged like other springs. Air springs should be stored at room temperature in a dry, dark place.

♦Environment
Due to their durability and simplicity, air springs are suitable for most industrial and commercial applications. Rubber and neoprene are prone to dry rot, so dehumidified conditions can shorten the life of an air spring.

♦Medium
Air spring bellows can also accept other types of fluids such as nitrogen, carbon, water and antifreeze.

FAQ

Q1:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q3: What certification does your product pass?
A: Our products are certified to ISO/TS16949:2009 international quality standards. Please rest assure that we have very strict Quality Control Systems.

Q4 : Can I use my own logo?
A:Sure. We can do as per the customer's requirements.

The Related Pictures

Company Profile

Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, Gomart used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products. All products comply with ISO9001, ISO/IS16949 standards.

The main products of Guangzhou Guomat air spring Co., Ltd. are: rubber air springs, air suspension springs, rubber air springs for automobiles, airbags for passenger cars and trucks, industrial air springs, etc. The products cover buses, luxury cars, trucks, Commercial vehicles, rail vehicles, industrial machinery, industrial equipment and other industries. The company has hundreds of models and styles of products. At the same time, it can also carry out directional transformation and design of products according to the special needs of users, providing users with one-stop service.
