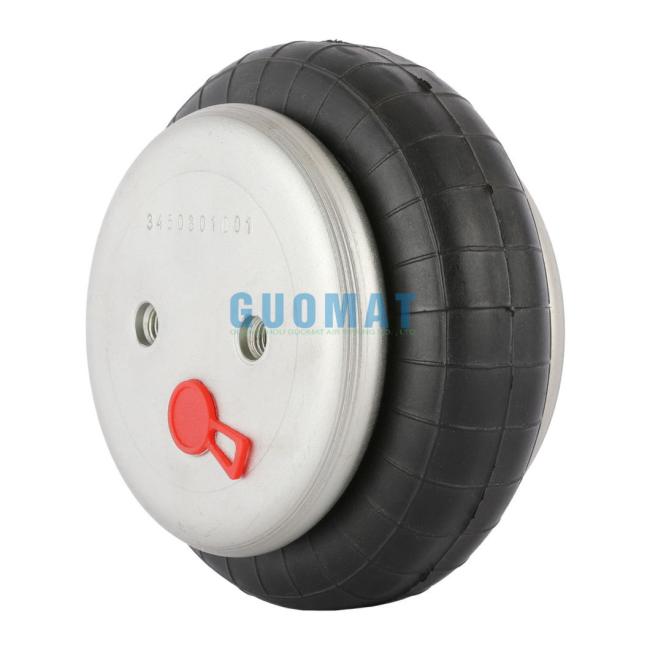

Firestone W01-358-7731 Industrial Air Spring 1/4 NPTF Air Hole Air Shock Absorber
Firestone W01-358-7731 Industrial Air Spring 1/4 NPTF Air Hole Air Shock Absorber
Product Specifications

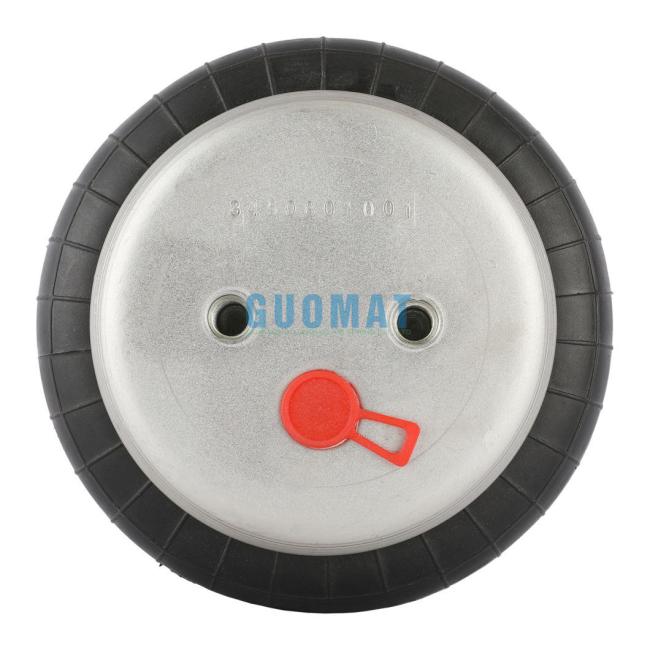

Top View
Screw (Nut) Tooth:2X3/8-16UNC
Screw Center Distance:44.5mm
Air Inlet And Screw Diameter:22mm
Air Inlet:1/4 NPTF
Bottom View
Screw (Nut) Tooth:2X3/8-16UNC
Screw Center Distance:44.5mm
Rubber Bellow
Rubber Bellow: MAX.165MM
The Working Stroke:MAX 115mm to MIN 50mm
Maximum Height:115mm
Minimum Height:50mm
Compression Height:65mm
Product Technical Data
Force F [kN]
| Pressure P | [bar] | 3 | 4 | 5 | 6 | 7 | 8 |
| Height [mm] | 120 | 2.6 | 3.5 | 4.4 | 5.3 | 6.2 | 7.2 |
| 110 | 3.1 | 4.2 | 5.2 | 6.3 | 7.4 | 8.5 | |
| 100 | 3.5 | 4.7 | 5.9 | 7.2 | 8.3 | 9.6 | |
| 90 | 3.9 | 5.2 | 6.5 | 7.9 | 9.2 | 10.5 | |
| 80 | 4.2 | 5.6 | 7.0 | 8.5 | 9.8 | 11.3 | |
| 70 | 4.5 | 5.8 | 7.4 | 9.0 | 10.4 | 12.0 |
Cross References
| Style 131 |
Blind nuts, 1/4 NPT
|
W01-358-7731, W013587731, W01 3587731
WO1-358-7731, WO13587731, WO1 358 7731
|
|
Blind nuts, 3/4 NPT
|
W01-358-7742, W013587742, W01 358 7742
WO1-358-7742, WO13587742, WO1 358 7742
|
|
|
Socket head aluminum bead rings (bolts, nuts, washers not included-use 1/4 cap screws)
|
W01-358-0127, W013580127, W01 358 0127
WO1-358-0127, WO13580127, WO1 358 0127
|
|
|
3/4 NPT (only) upper plate, blind nuts lower plate
|
W01-358-7729, W013587729, W01 358 7729
WO1-358-7729, WO13587729, WO1 358 7729
|
|
|
Rubber bellows only
|
W01-358-0131, W013580131, W01 358 0131
WO1-358-0131, WO13587729, WO1 358 7729
|
Applications
- Off-highway vehicles such as construction equipment, agricultural machinery, and mining equipment, where air springs are used for suspension and to improve ride comfort and stability.
- Press equipment and part extraction, where air springs are used as actuators.
- Test equipment and motion simulators , where air springs are used as vibration isolators and to reduce shock and noise.
- Precision equipment and machinery, such as printing presses, where air springs are used for vibration isolation and leveling.
- Textile machinery, where air springs are used to provide a smooth and stable ride, improve the quality of the finished product, and reduce the wear and tear on machinery.
- Paper mill machinery, where air springs are used for suspension, levelling and vibration isolation.
- Cheese and dairy industry machines
