Goodyear 1B5-550 Air Spring Actuator Single Convoluted Bellows Type G 1/4 Air Hole
Price:
Negotiable
MOQ:
5
Delivery Time:
5-8 Working Days
Brand:
GUOMAT
Product Description

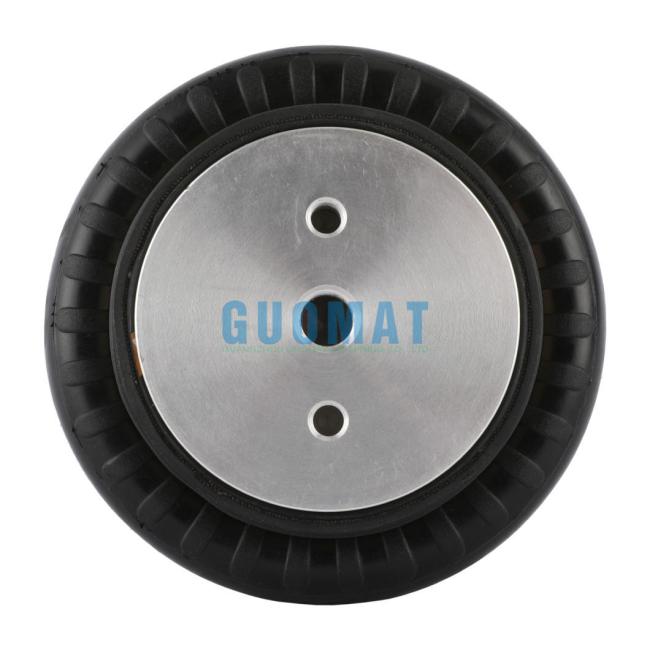

Goodyear 1B5-550 Air Spring Actuator Single Convoluted Bellows Type G 1/4 Air Hole
Product Details
GUOMAT No.: 1K130070
GUOMAT No.: 1K 130070
Goodyear No.: 1B5-550
Goodyear No.: 1B 5-550
1B5-550 Rubber Air Bag Technical Data
| Material | High Quality Rubber |
| Cover Plate Material | Aluminum |
| Net Weight | 0.85 KG |
| Port Size | G1/4 |
| Cylinder Type | Standard |
| Number of Convolutions | Single |
| MAX Diameter | 145 MM |
| Stroke Length | 50 MM |
| Maximum Working Pressure (Bar) | 8 |
| Maximum Ambient Temperature (°C) | 70 ºC |
| Minimum Ambient Temperature (°C) | -40ºC |
Single Convoluted Type Air Spring
| Part Number |
Usable Stroke |
Max Dia @100 psi In |
Min H. Inches |
Max. H. Inches |
Air Inlet |
| 1B5-500 | 2.0 | 5.7 | 1.8 | 3.8 | 1/4 |
| 1B5-502 | 2.0 | 5.7 | 1.8 | 3.8 | 3/4 |
| 1B5-503 | 2.0 | 5.7 | 1.8 | 3.8 | 1/4 TV |
| 1B5-510 | 3.0 | 6.0 | 1.8 | 4.8 | 1/4 |
| 1B5-512 | 3.0 | 6.0 | 1.8 | 4.8 | 3/4 |
| 1B5-520 | 4.0 | 6.5 | 1.8 | 5.8 | 1/4 |
| 1B5-521 | 4.0 | 6.5 | 1.8 | 5.8 | 3/4 |
| 1B6-530 | 3.0 | 6.5 | 1.8 | 4.8 | 1/4 |
| 1B6-531 | 3.0 | 6.5 | 1.8 | 4.8 | 1/4 OS |
| 1B6-532 | 2.5 | 6.5 | 2.3 | 4.8 | 1/4 OS |
| 1B6-535 | 5.3 | 7.0 | 1.8 | 7.1 | 1/4 |
| 1B6-536 | 5.3 | 7.0 | 1.8 | 7.1 | 1/4 OS |
Advantages
- 100% Brand New
- Durable and long service life.
- Direct replacement for your old or broken one, easy installation.
- Built to meet standard specification, strictly follow factory quality control.
- Due to the light and screen difference, the item's color may be slightly different from the pictures.
Air Spring Installation
- Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
- Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
- If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.
Company Profile
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

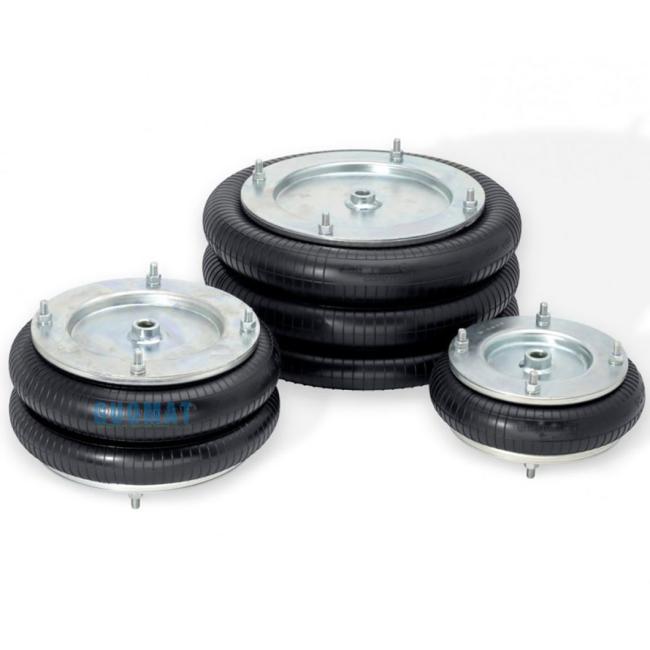

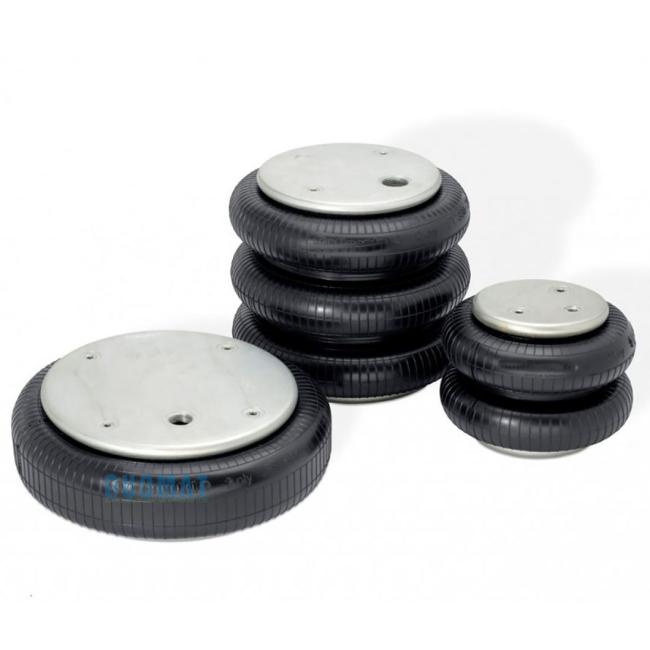

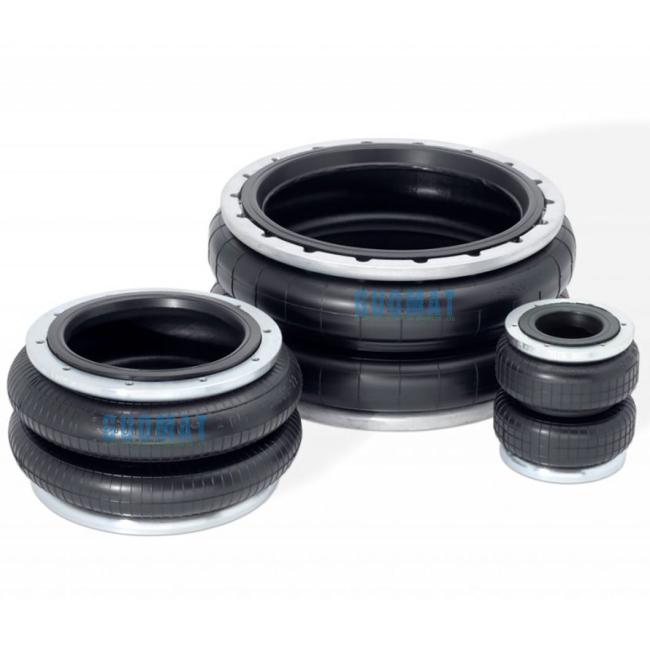

Product Images
