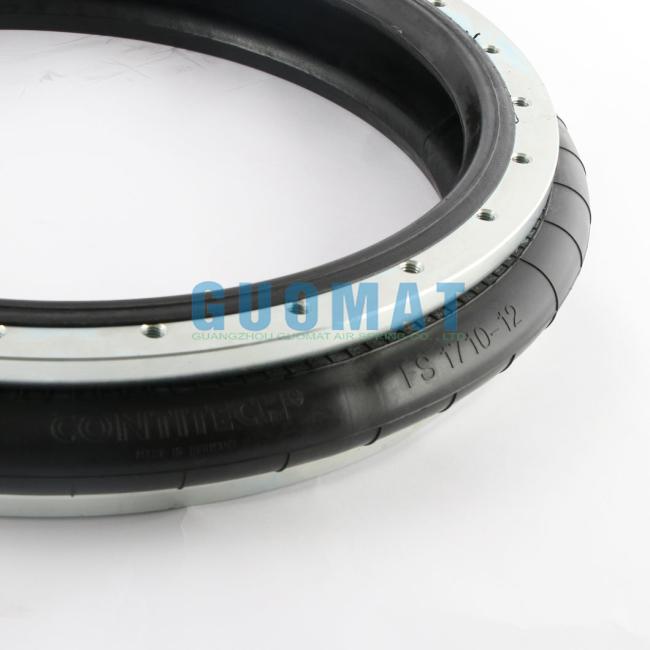

FS 1710-12 Contitech Rubber Bellows M10 Bolts Industrial Air Spring
FS 1710-12 Contitech Rubber Bellows M10 Bolts Industrial Air Spring
Product Details
| Part Number | 1B 1710-12 |
| OEM Number | Contitech FS1710-12 |
| Working Temperature | -40°C bis +70°C |
| Failure Testing | ≥3 millions |
| Maximum Outer Diameter | Ø585mm |
| The Diameter of the Flange | Ø517mm |
| Nominal Diameter of the Flange | Ø482mm |
| Distance Between Bolts | Ø482mm |
| Bolts | 24XM10 |
| Maximum Height | 177mm |
| Minimum Height | 55mm |
Gas-Filled Hole / Air Inlet: By filling air porosity for inflatable air spring
Bolt / Mounting Stud: Bolt is fixed as the installation of air spring in car or equipment
Upper Retainer: Upper Retainer to protect the whole air spring
Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision
Flexible Bellows: The main part can lock the air and flexible activities up and down
Piston/ The base: Base is also carrying fluctuation pressure, sealed air and make skins can according to the fluctuation of the trajectory
Mounting Stud: fixed as the installation of air spring in car or equipment
| Type | Order No. |
| Rubber bellows only | |
| With bead ring,45 mm bolts.nuts and washers |
Pneumatic application – static characteristic values
Force F (kN)
| Pressure p | bar | 3 | 4 | 5 | 6 | 7 | 8 | Vol.V(l) |
| Height H (mm) | 140 | 48.2 | 64.4 | 81.2 | 98 | 115 | 132 | 28 |
| 120 | 53.8 | 72.1 | 90.6 | 109 | 128 | 147 | 24 | |
| 100 | 60.2 | 80.2 | 101 | 121 | 142 | 162 | 19 | |
| 80 | 65 | 86.6 | 109 | 130 | 152 | 174 | 15 | |
| 60 | 67.8 | 90.2 | 113 | 136 | 158 | 181 | 9.5 |
