Product Details
Contitech Part Number FS76-7
Contitech Part Number FS 76-7
Contitech Part Number FS76-7 DI G1/2 CR
Contitech Part Number FS 76-7 DI G1/2 CR
Fire-stone Part Number W01-R58-4078
Fire-stone Part Number W01 R58 4078
Fire-stone Part Number W01R584078
Fire-stone Part Number WO1-R58-4078
Fire-stone Part Number WO1 R58 4078
Fire-stone Part Number WO1R584078
Dunlop Part Number 6X1
Dunlop Part Number SP2913
Dunlop Part Number SP 2913
Norgren Part Number PM/31061
Norgren Part Number PM 31061
Norgren Part Number PM31061
Parker Part Number 9109004A
6''X1 Air Spring Technical Parameters
Top Cover Plate: 152.5mm
Bottom Cover Plate: 175mm
Gas Hole: G1/2
Thread: M8
Distance Between Threads: 127mm
Max. Height: 110mm
Min.Height: 55mm
Vibration Isolation Applications - Dynamic Eigenvalues
Design height H: recommended 90 mm, minimum 75 mm
| Pressure P | bar | 3 | 4 | 5 | 6 | 7 | 8 | Volume |
| Force (Load) F | KN | 3.1 | 4.2 | 5.3 | 6.4 | 7.5 | 8.7 | 0.9 |
| Spring Stiffness C | N/cm | 1585 | 2005 | 2455 | 2860 | 3315 | 3745 | |
| Natural Frequency f0 | Hz | 3.5 | 3.4 | 3.4 | 3.3 | 3.3 | 3.3 |
Pneumatic Applications - Static Characteristic Values
Force F (kN)
| Pressure P | bar | 3 | 4 | 5 | 6 | 7 | 8 | Volume |
| Height H (mm) | 100 | 2.3 | 3.1 | 4.0 | 4.9 | 5.8 | 6.8 | 1.0 |
| 90 | 3.1 | 4.2 | 5.3 | 6.4 | 7.5 | 8.7 | 0.9 | |
| 80 | 3.8 | 5.1 | 6.4 | 7.8 | 9.1 | 10.5 | 0.7 | |
| 70 | 4.5 | 6.0 | 7.6 | 9.1 | 10.7 | 12.3 | 0.6 | |
| 60 | 5.3 | 7.1 | 8.8 | 10.6 | 12.4 | 14.2 | 0.4 |

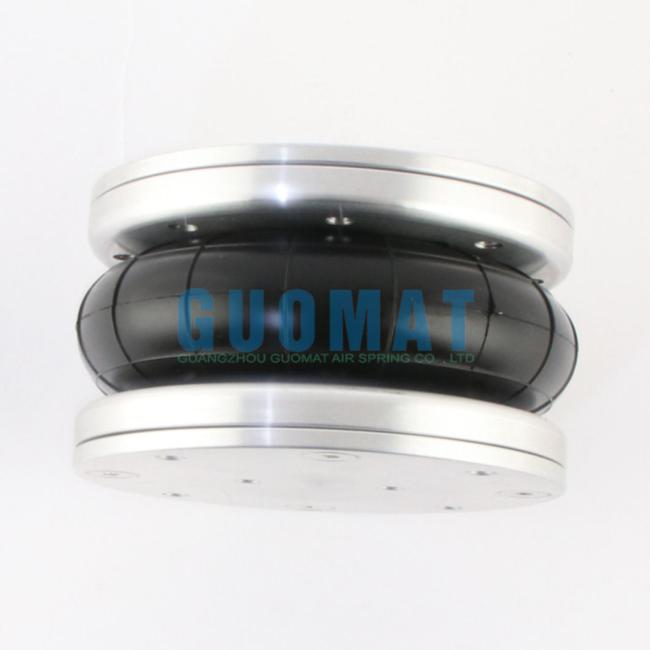

Product Images
