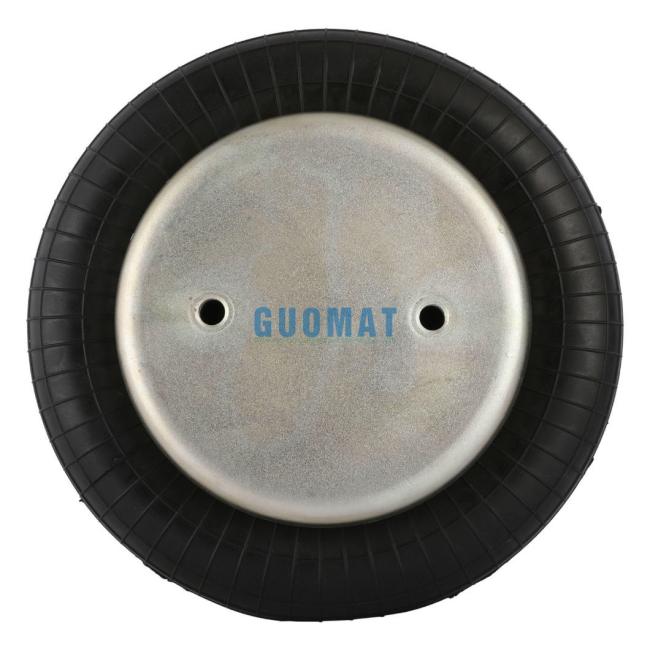

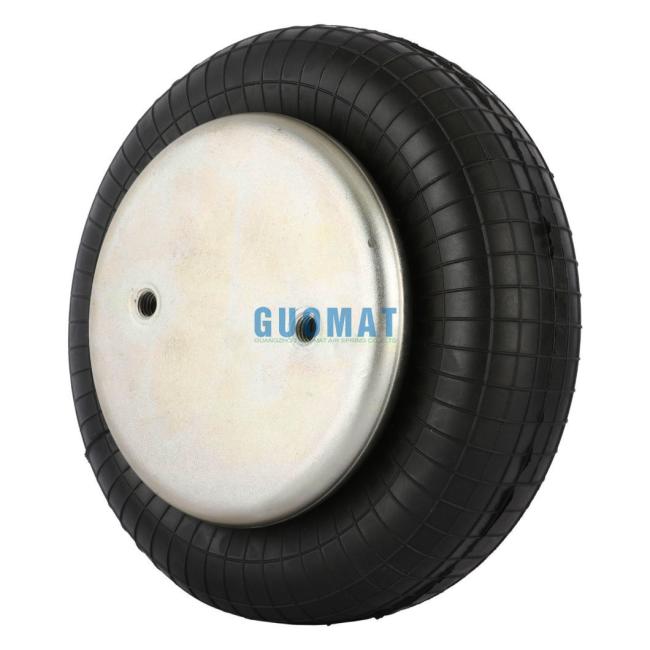

GUOMAT 1B8X4 Presses Convoluted Air Spring 1B8-550 Goodyear Rubber Air Bellows
GUOMAT 1B8X4 Presses Convoluted Air Spring 1B8-550 Goodyear Rubber Air Bellows
| Item Name | Single Convoluted Industrial Air Spring |
| Model Number | 1B8x4 |
| Factory Warranty | 12 Months |
| Product Material | Natural Rubber and Steel |
| Package | Strong Carton Box |
| Delivery Time | 2-8 working day |
| Product Weight | 2.5kg |
| Fire-Stone | W01-358-7564 / W01 358 7564 / W013587564 |
| Goodyear | 1B8-550 / 1B 8-550 |
| Contitech | FS120-10 / FS 120-10 |
Top Cover Plate Diameter : 135mm
Bottom Cover Plate Diameter : 135mm
Top Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC
Screw Center Distance of Top Cover Plate : 70mm
Bottom Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 70mm
Gas Hole : 1/4 NPTF
The Rubber Bellow MAX Diameter : 230mm
The Working Stroke : MAX 140mm To MIN 50mm
Maximum Height : 140mm
Minimum Height : 50mm
Compression Height : 90mm
Bellow cylinder W01-358-7564
Max. stroke: 4 in / 101 mm
Max. load: 3.41 psi / 16.55 kN
Max. diameter: 5.31 in / 231 mm
Max. height: 6 in / 152 mm
Min. height: 2 in / 51 mm
Recommended max. working height: 5.1 in / 130 mm
Plate diameter: 5.31 in / 135 mm
Mounting thread: 2x3/8-16 UNC
Air connection: 1/4 NPT
Bellows material: NR
Temperature range min./max.: - 40°C / +70°C
Style: 116
| Description | Assembly NO. | |
| Style 116 | Blind nuts,1/4 NPT | W01-358-7564 |
| Blind nuts,3/4 NPT | W01-358-7561 | |
| Two Ply Bellows | Countersunk steel bead rings,1 3/4 bolt, nuts,washers | W01-358-7568 |
| Blind nuts with installed 1/4 tank valve | W01-A72-7518 | |
| Rubber bellows only | W01-358-0133 | |
Force Table
| Assembly Height(in.) | Volume@100 PSIG(in3) | Pounds Force | ||||
| @20 PSIG | @40 PSIG | @60 PSIG | @80 PSIG | @100 PSIG | ||
| 5.0 | 161 | 290 | 600 | 970 | 1,370 | 1,800 |
| 4.0 | 135 | 52 | 1,050 | 1,630 | 2,210 | 2,820 |
| 3.0 | 102 | 650 | 1,310 | 2,000 | 2,690 | 3,410 |
