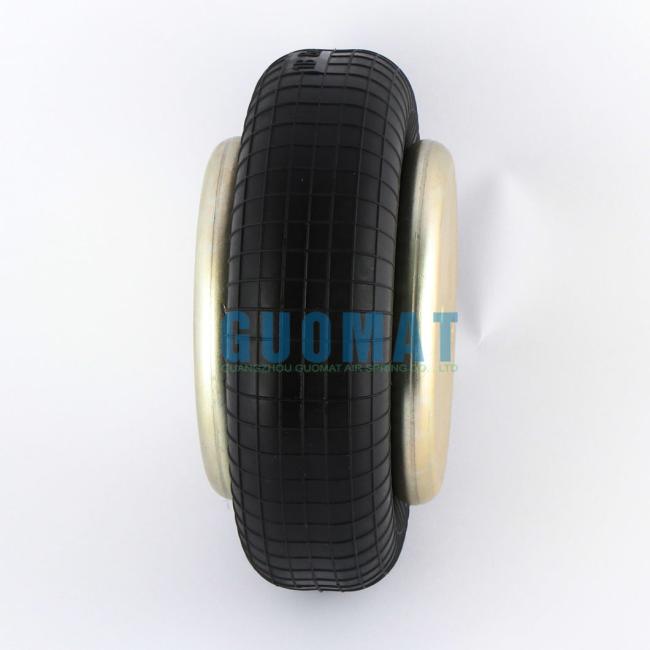

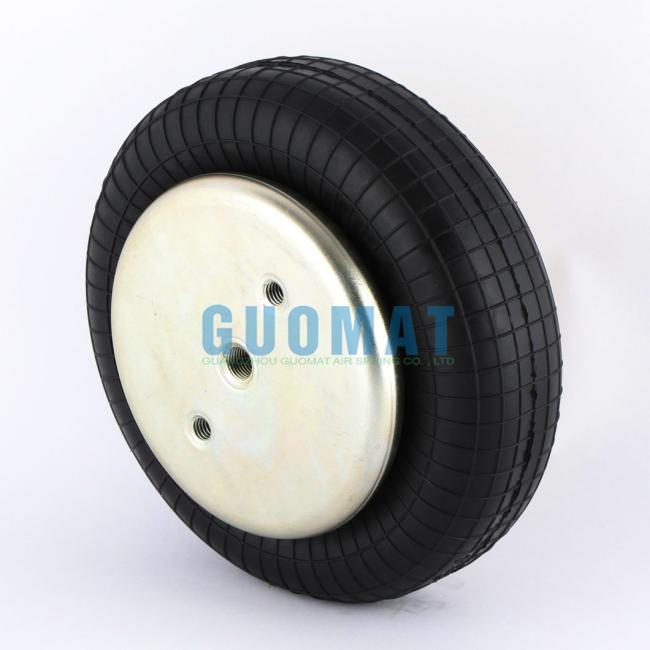

Suspension Air Spring W01-358-7564 Firestone 1B8-550 Goodyear Rubber Air Bag
Suspension Air Spring W01-358-7564 Firestone 1B8-550 Goodyear Rubber Air Bag
Product Information
- Cover Plate
Top Cover Plate Diameter: 5.31 in.
Screw Center Distance of Top Cover Plate: 2.75 in.
Bottom Cover Plate Diameter: 5.31 in.
Screw Center Distance of Bottom Cover Plate: 2.75 in.
- Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts
Bottom Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts
- Gas Hole/Air Inlet/Air Fitting
Gas Hole: 1/4 NPT
- Rubber Bellow
Rubber Bellow Max Dia: 9.1 in.
Minimum Height: 2 in.
Maximum Height: 6 in.
|
Style 116 Two
Ply
Bellows
|
Description
|
Assembly Order No.
|
|
Blind nuts, 1/4 NPT
|
W01-358-7564, W01 358 7564, W013587564
WO1-358-7564, WO1 358 7564, WO13587564
|
|
|
Blind nuts, 3/4 NPT
|
W01-358-7561, W01 358 7561, W013587561 WO1-358-7561, WO1 358 7561, WO13587561
|
|
|
Countersunk steel bead rings, 13/4 bolts, nuts, washers
|
W01-358-7568, W01 358 7568, W013587568 WO1-358-7568, WO1 358 7568, WO13587568
|
|
|
Blind nuts with installed 1/4 NPT
|
W01-A72-7518, W01 358 7518, W013587518 WO1-358-7518, WO1 358 7518, WO13587518
|
|
|
Rubber bellows only
|
W01-358-0133, W01 358 0133, W013580133 WO1-358-0133, WO1 358 0133, WO13580133
|
|
|
Style
117
High
Strength
Bellows
|
Blind nuts, 1/4 NPT
|
W01-358-7600, W01 358 7600, W013587600 WO1-358-7600, WO1 358 7600, WO1357600
|
|
Blind nuts, 3/4 NPT
|
W01-358-7602, W01 358 7602, W013587602 WO1-358-7602, WO1 358 7602, WO1357602
|
|
|
Countersunk steel bead rings, 13/4 bolts, nuts, washers
|
W01-358-7606, W01 358 7606, W013587606 WO1-358-7606, WO1 358 7606, WO1357606
|
Applications
- Pulp and paper industry
- Lumber mills
- Lift tables
- Tooling and machining system
- Energy production
- Tooling robotics and automation
- Component assembly
- Automotive assembly
- Medical equipment
- Conveyor systems
- Packaging
