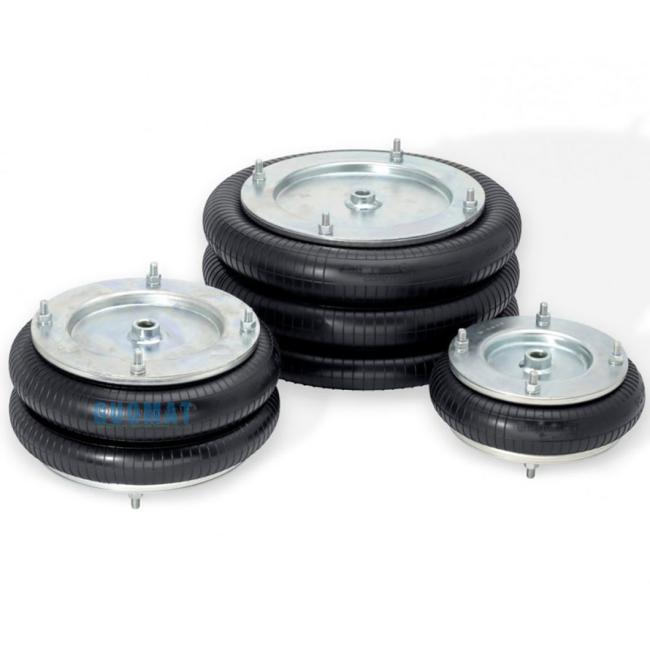

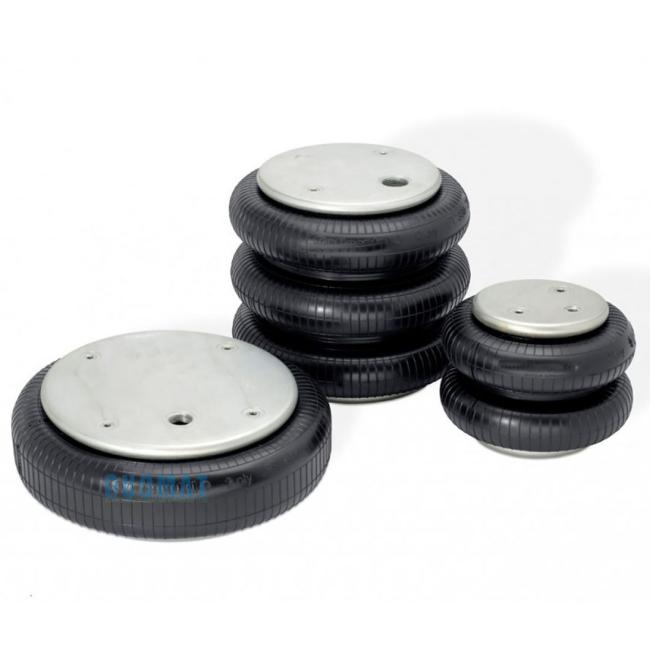

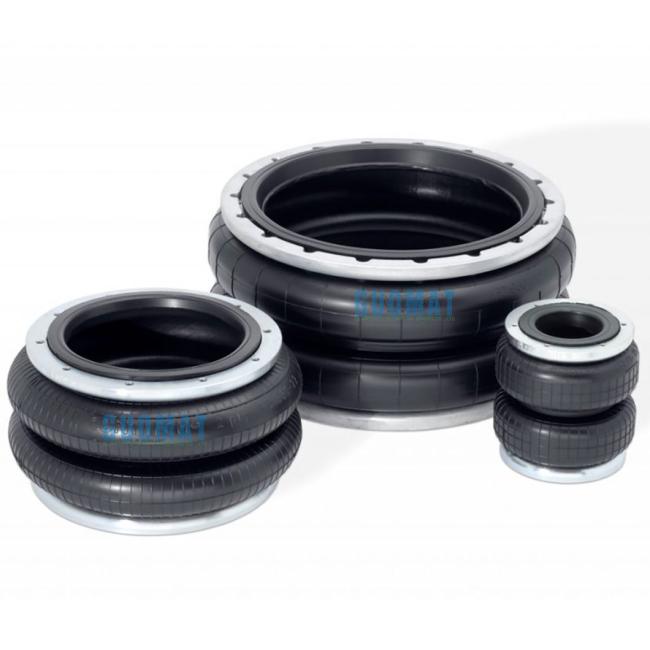

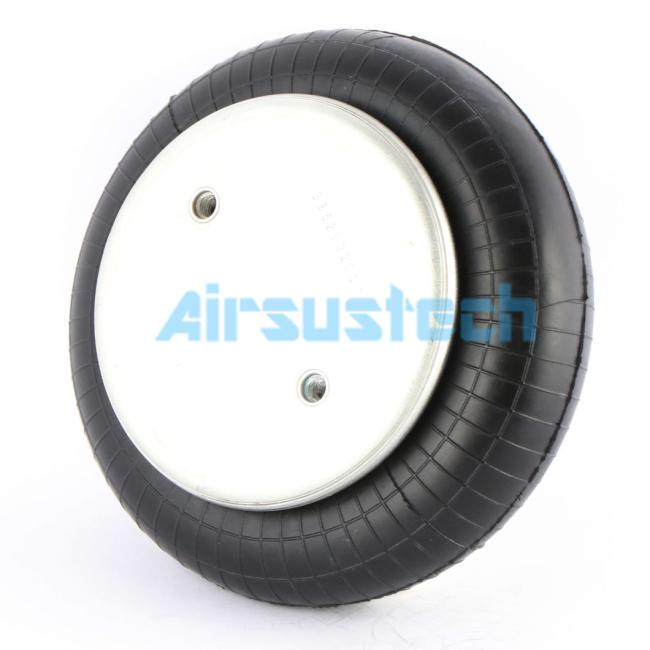

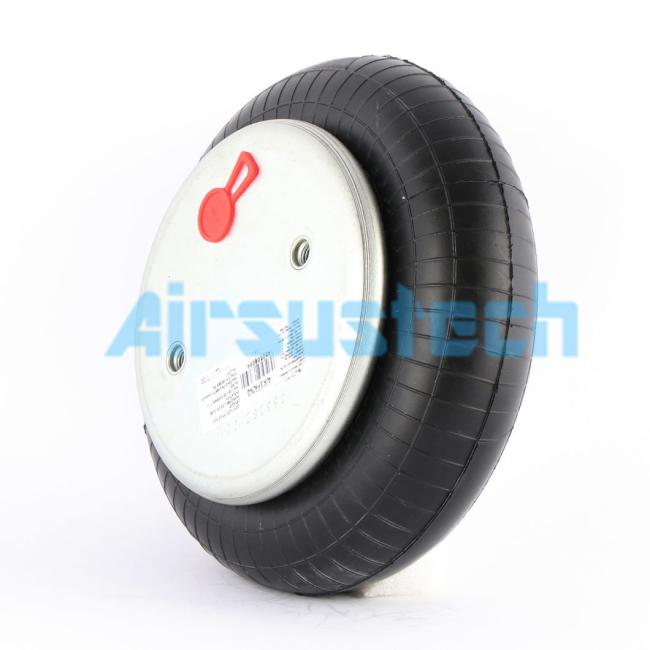

Contitech Industrial Style FS200-10 Air Spring Suspension M8 Bolts Air Shocks
Price:
Negotiable
MOQ:
5
Delivery Time:
5-8 Working Days
Brand:
GUOMAT
Product Description
Contitech Industrial Style FS200-10 Air Spring Suspension M8 Bolts Air Shocks
Product Specification
| Rubber Bellow Max Dia | 250 mm |
| Installation Space Required | 265 mm |
| Minimum Height | 51 mm |
| Maximum Height | 140 mm |
| Top Cover Plate Diameter | 161 mm |
| Screw Center Distance of Top Cover Plate | 89 mm |
| Bottom Cover Plate Diameter | 161 mm |
| Screw Center Distance of Bottom Cover Plate | 89 mm |
| Top Cover Plate Screw(Nut) Tooth | 2×M8-15mm |
| Bottom Cover Plate Screw(Nut) Tooth | 2×M8-15mm |
| Gas Fitting | G 1/4 |
Cross Reference
Contitech 60030
Contitech FS 200-10
Contitech FS200-10
Contitech FS 200-10 CI
Contitech FS200-10 CI
Contitech FS 200-10 CI G1/4
Contitech FS200-10 CI G1/4
Contitech FS 200-10 CI G1/4 OS
Contitech FS200-10 CI G1/4 OS
Fire stone W01M586375
Fire stone W01 M58 6375
Fire stone W01-M58-6375
Fire stone WO1M586375
Fire stone WO1 M58 6375
Fire stone WO1-M58-6375
Air Spring Applications
- Pneumatic actuators are designed for machines, devices and vehicles in which it is necessary to eliminate vibrations and shocks. Used in the suspension of seats, bus axles, trucks, troley-buses, tractors, trains and trams.
- Air springs are used to resiliently attach machines and devices that generate shocks and vibrations transmitted through the foundation to the environment (eg textile looms, conveyors, impact hammers, forging presses, etc.). They are perfect for isolating laboratory instruments against vibrations. They can also be used to suspend truck trailers and caravans. They are used in pneumatic lifts, e.g. in car repair shops. Operation as a single linear air motor is also a common application.
- Benefits of application: vehicle and cargo protection; reducing tire wear; lower fuel consumption; low maintenance costs and a very long service life.
- The rubber of the bellows is not resistant to petroleum products (oil, diesel, gasoline, kerosene, etc.). In case of contamination by any of these substances, rinse with warm water and wipe dry.
FAQ
| Q: How to order ? A: Step 1, please tell us what model and quantity you need; Step 2, then we will make a PI for you to confirm the order details; Step 3, when we confirmed everything, you can arrange the payment; Step 4, finally we deliver the goods within the stipulated time. |
| Q: When will make delivery ? A: Delivery time is 3-8woring days. |
| Q: After-sales service? A: One year warranty for all kinds of products. If you have any questions after receiving the goods, please feel free to contact me, as an experienced manufacturer, you can rest assured of the quality and after-sales service. |
| Q: What's your transportation? A: Transportation by DHL, UPS, EMS, Fedex, Air freight, Sea freight. |

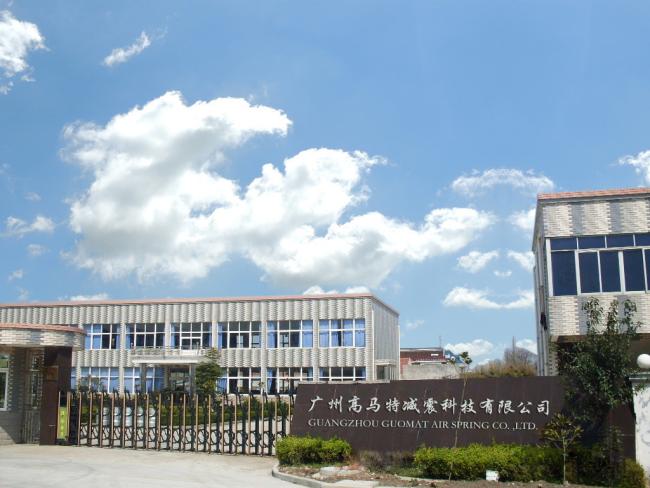

Company Profile
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
