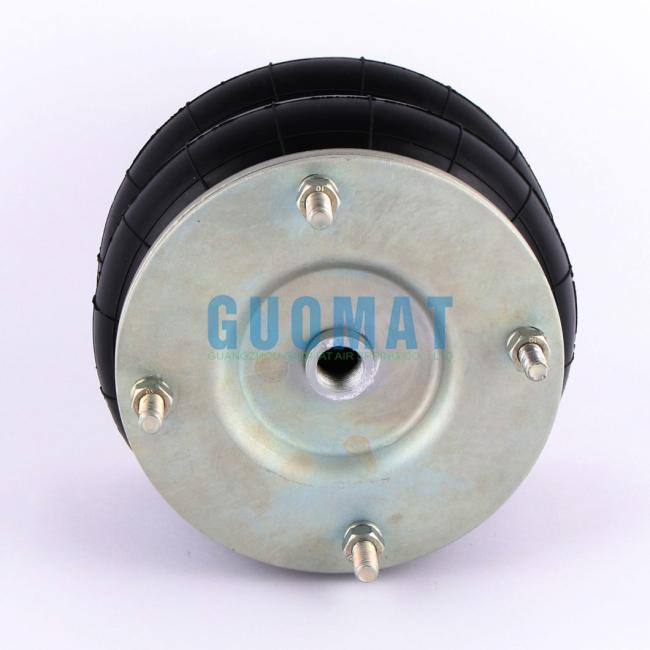

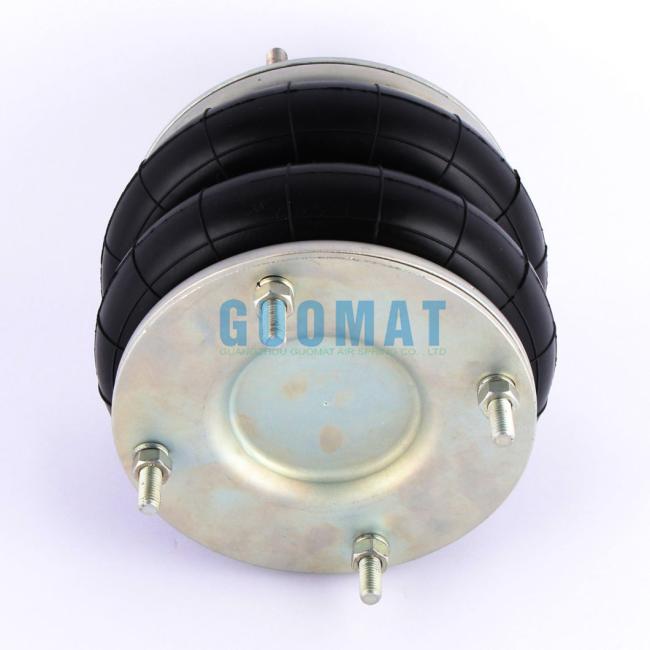

Norgren M/31081 Air Suspension Spring Cross Firestone W013584054 Air Actuator
Norgren M/31081 Air Suspension Spring Cross Firestone W013584054 Air Actuator
Product Information
| Maximum Diameter | 230 mm |
| Space Required | 240 mm |
| Minimum Height | 47 mm |
| Maximum Height | 120 mm |
| Total Stroke | 73 mm |
| Static Height | 90 mm |
| Effective Area at Stactic Height | 200 cm2 |
| Bellows Weight | 3.05 kg |
Alternative Items
Fire stone Number W01R584054
Fire stone Number W01 R58 4054
Fire stone Number W01-R58-4054
Fire stone Bellows Number 4054
Fire stone Bellows Number WO1R584054
Fire stone Bellows Number WO1 R58 4054
Fire stone Bellows Number WO1-R58-4054
Dunlop Number 8" x 1 ; 8x1 ; 8X1
Dunlop Number SP1537
Dunlop Number SP 1537
Dunlop Number sp1537
Dunlop Number sp 1537
Contitech Number FS 138-8 DS
Contitech Number FS138-8 DS
Contitech Bellows Number FS138-8DS
Norgren Number M/31081
Norgren Number M31081
Norgren Number M 31081
Parker Number 9109014
- Do not exceed stated stroke.
- Do not inflate assembly when it is unrestricted.
- Do not inflate beyond pressures stated without
- prior consultation with Dunlop.
- Respect maximum and minimum heights.
- The bellows must be securely fixed.
- Do not use without air pressure.
Air Spring Advantages
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
- The products features low cost, wide use and easy operation.
- It achieves long service life, and requires no maintenance and lubrication.
- This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
- It comes with no friction and soft medium.

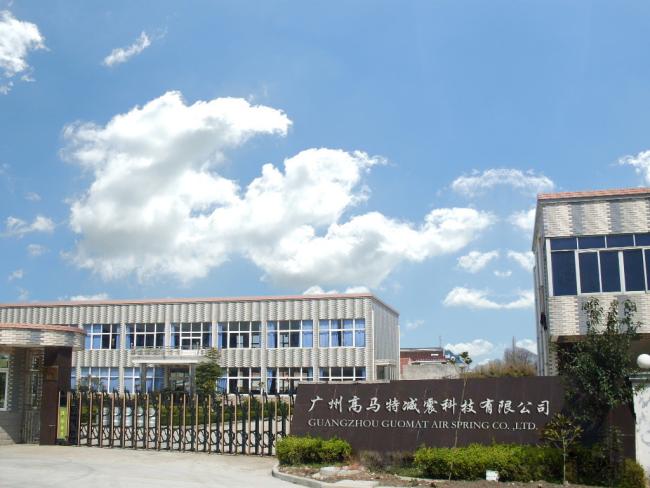

Company Profile
The Real Photo
FAQ
| 1. Are you a Manufacture factory? Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 15years experience from 2008 years. |
| 2. What is your main products? Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. |
| 3. Is the sample available? Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS. |
| 4. What is your warranty term? There is a 12months warranty for our export products has run out from the date of the shipment. |
| 5. Can i use my own logo and design on products? YES,OEM is welcomed. |
| 6. I can not find out the items what i want from your website, can you offer the products i need? YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item. |
