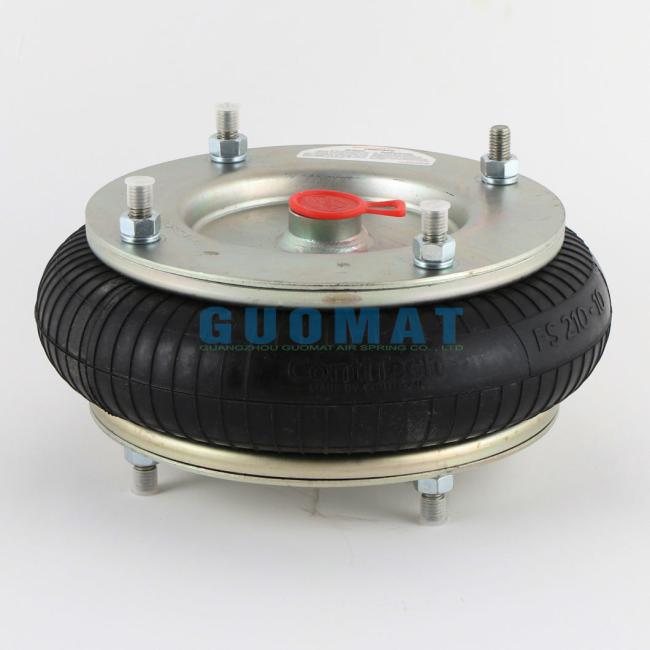

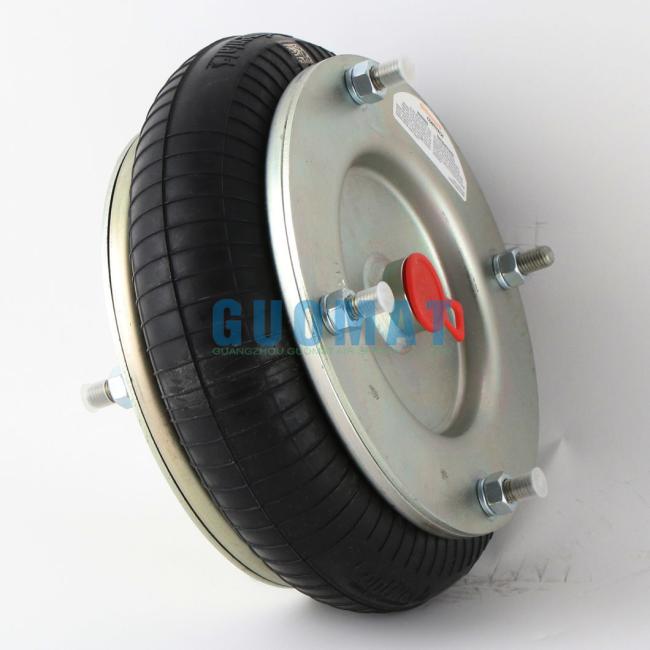

FS 210-10 DS G 1/2 Contitech Air Bag Black Convoluted Industrial Air Spring
FS 210-10 DS G 1/2 Contitech Air Bag Black Convoluted Industrial Air Spring
Product Details
| Item | Air Spring | Brand | Contitech |
| Material | Rubber+Steel | Warranty | 1 Year |
| Payment | L/C,T/T,Western Union | Shipment | FedEx,UPS,DHL |
Contitech FS210-10
Contitech FS 210-10
Contitech FS210-10 DS
Contitech FS 210-10 DS
Contitech FS210-10 DS G1/2
Contitech FS 210-10 DS G1/2
Fire stone number: W01-R58-4057
Fire stone number: W01 R58 4057
Fire stone number: W01R584057
Fire stone style: 10"x1
Fire stone style: 10"x1
Fire stone style: 10x1
Goodyear: 1B10-350
Goodyear: 1B10 2350
Goodyear: 1B102350
Goodyear Bag No.: 578-91-3-2350
Goodyear Bag No.: 578 91 3 2350
Goodyear Bag No.: 5789132350
Dunlop France: 10"x1 SP2523
Dunlop UK (Pneuride): A1 1127 00 07
Dunlop UK (Pneuride):A111270007
Norgren: M/31101
Norgren:M 31101
Norgren:M31101
Nominal diameter (inch) x number of turns: 10"x1/ 10"x1 / 10x1
Parker: 10"x1 9109024
FS 210-10 DS Contitech Air Spring Detailed Technical Parameters
| Top cover width | 210mm |
| Number and specifications of top screws | 4pcs M10 |
| Center distance between top screws | 181mm |
| Bottom cover width | 210mm |
| Number and specifications of bottom screws | 4pcs M10 |
| Center distance between bottom screws | 210mm |
| Maximum outer diameter | 270mm |
| Suitable installation distance | 300mm |
| maximum height | 150mm |
| minimum height | 50mm |
| Gas hole | G1/2 |
| Type |
| Rubber belows only |
| with dismountable plates G1/2 air inlet |
