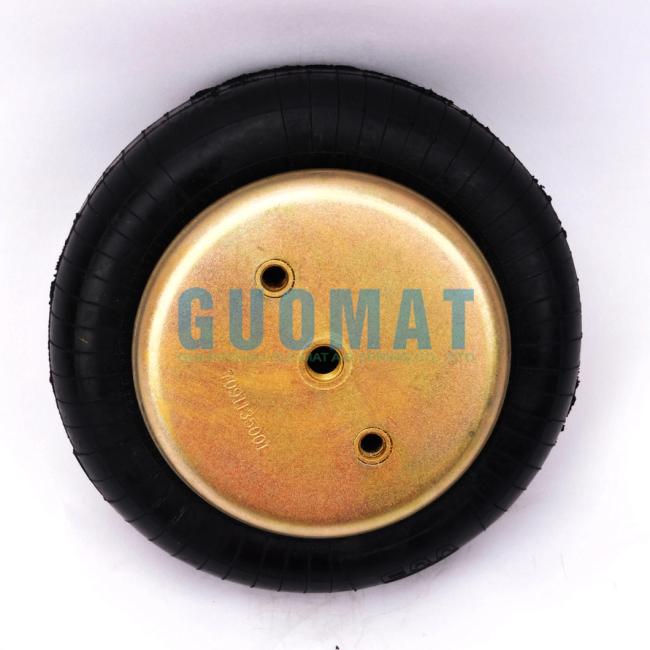

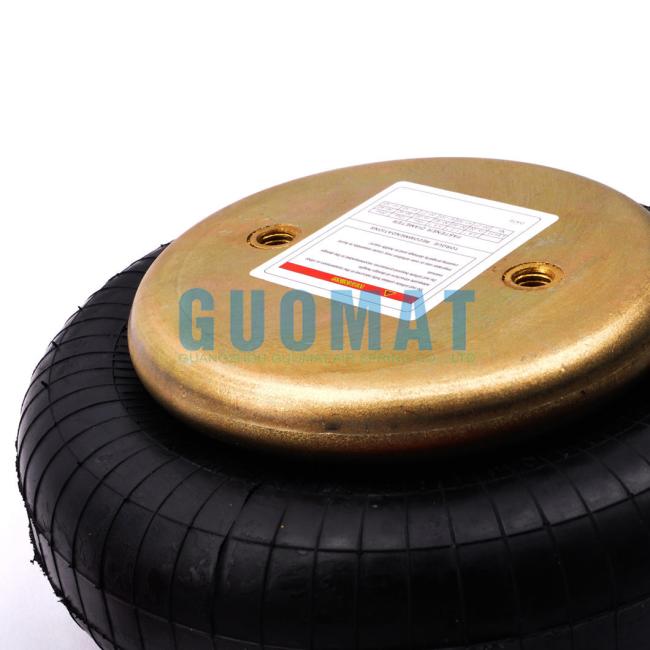

1B8×4 GUOMAT Brand Air Spring Replaces Goodyear Air Bag 1B8-550 1/4 NPTF Air Inlet

1B8×4 GUOMAT Brand Air Spring Replaces Goodyear Air Bag 1B8-550 1/4 NPTF Air Inlet

Product Specification

Cross References

• Fire stone W01-358-7564
• Fire stone W01 358 7564
• Fire stone W013587564
• Goodyear 1B8-550
• Goodyear 1B 8-550
• Contitech FS120-10
• Contitech FS 120-10

Important Tips to Remember When Installing a New Unit

1. Check levelling valve, linkage and transmission parts for wear and damage and if necessary replace the damaged parts.
2. Check that the shock absorber for leakages and take a shock absorber test. A defective shock absorber must be replaced.
3. Once the air lines are disconnected, check their entire length for cracks or other damage. Replace worn parts.
4. With the air spring removed, other parts of the air suspension become more accessible. Check for wear or damage of the frame hangers, trailing arm bushings, torque rods, the trailing arms and the air spring mounts. When it is necessary, also replace parts.
5. Check bearing for air spring bellow for external damage, deformation, sharp edges and correct fastening.
6. Before installing the new unit, clean the air spring mounting plates to ensure proper attachment to the suspension.
7. Always use new attaching bolts for the installation and observe the tightening torques. Never use old bolts, because these can fall out.
8. Check the linkage of the levelling valve to see that it is functioning properly. Under load, the linkage should move from the neutral position up to the intake position. This lets air into the springs, which brings the arm back to the neutral position. This lets air into the springs, which brings the arm back to the neutral position. That opens the exhaust valve, allowing air to escape until the arm returns to the neutral position. Then check the driving level.

GUOMAT Air Bags Product Technical Support

• Provides additional support for your vehicle's suspension system
• Helps to reduce vehicle sagging, sway, and bottoming out
• Easy to install and inflate/deflate as needed
• Constructed with high-quality materials for durability and longevity
• Available in a variety of sizes to fit most vehicles

GUOMAT Air Springs Product Services

• Professional installation available through authorized dealers
• Warranty included with product purchase
• Online resources available for product information and troubleshooting
• Customer service available for any questions or concerns

Company Profile


Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

Product Images
