Festo EB-215-80 Compact Air Bellow Cross Dunlop 8''x1 S08101 Air Shock Absorber
Price:
Negotiable
MOQ:
5
Delivery Time:
5-8 Working Days
Brand:
GUOMAT
Product Description

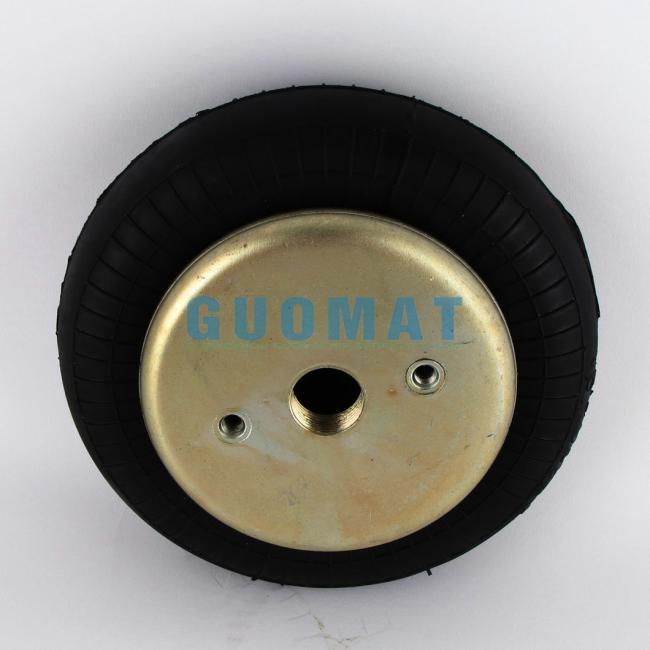

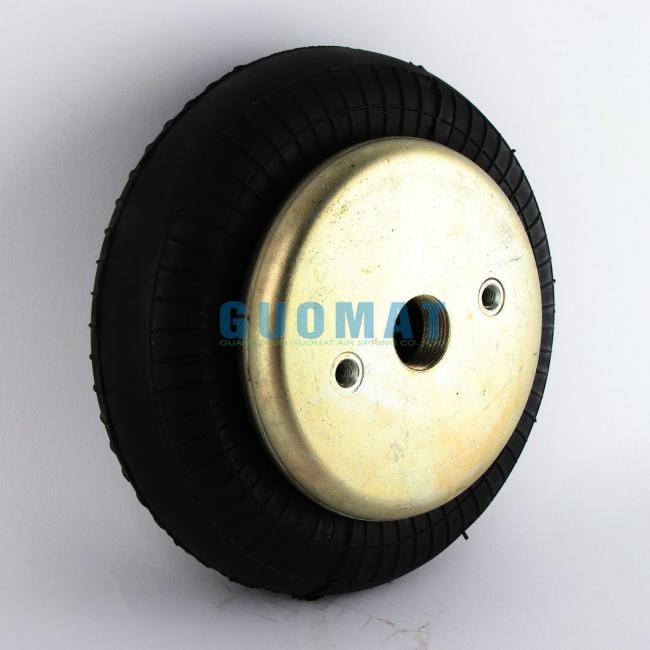

Festo EB-215-80 Compact Air Bellow Cross Dunlop 8''x1 S08101 Air Shock Absorber
Product Details
| Top Cover Plate Diameter: 141 mm |
| Screw Center Distance of Top Cover Plate: 70 mm |
| Bottom Cover Plate Diameter: 141 mm |
| Screw Center Distance of Bottom Cover Plate: 70 mm |
| Top Cover Plate Screw(Nut) Tooth: 2×M8 |
| Bottom Cover Plate Screw(Nut) Tooth: 2×M8 |
| Gas Hole: G 3/4 |
| Rubber Bellow Max Dia: 230 mm |
| Minimum Height: 50 mm |
| Maximum Height: 135 mm |
| Total Storke: 85 mm |
OEM Numbers
| Festo |
EB-215-80, EB 215 80, EB 215-80, EB215 80 EB-215 80, EB-21580, EB21580 |
| Firestone |
W01-M58-6165, W01 M58 6165, W01M586165 WO1-M58-6165, WO1 M58 6165, WO1M586165 |
| Contitech | FS 120-9, FS 120 9, FS120-9, FS 120 9, FS1209 |
| Bosch | 822419003 |
| Norgren | PM/31081(8x1), PM31081(8x1), PM 31081(8x1) |
| Weforma |
WBE 300-E1, QBE 300 E1, WBE300-E1 WBE 300E1, WBE300E1 |
| Airtech | 140293, 111003, 1B-190FB, 1B 190FB, 1B190FB |
| Megatech | 1S120-9 3/4 M8, 1S120 9 3/4 M8, 1S1209 3/4 M8 |
Air Spring Properties
- Maintenance-free
- High operational reliability
- Long service life
- Resistance to different media
- Simple, economical assembly
Storage Precautions
- Spare parts of air springs should be stored in dark places without ventilation as far as possible, avoiding direct sunlight
- Avoid oil and chemicals on the air springs, otherwise, after long-term storage, the performance of the rubber will be degraded and the service life will be reduced
- Air springs are best stored in a free state without any external force
- Do not store in an environment with a temperature exceeding 50 degrees Celsius
Company Profile
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
