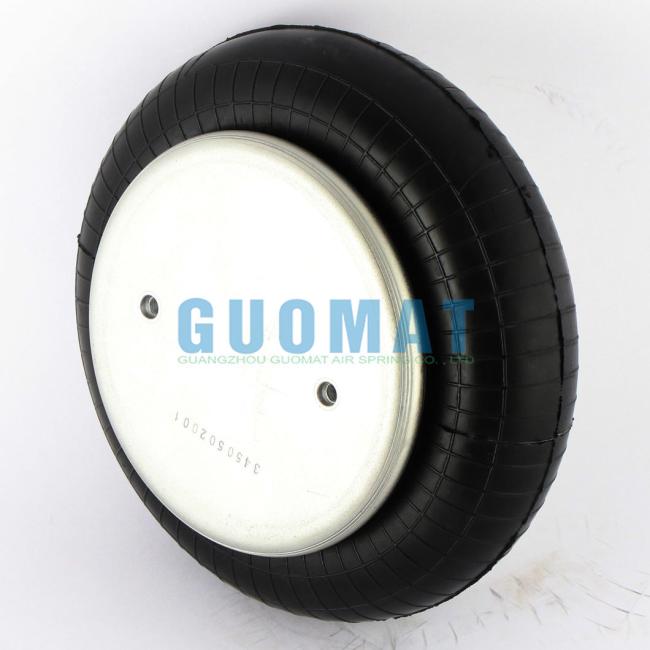

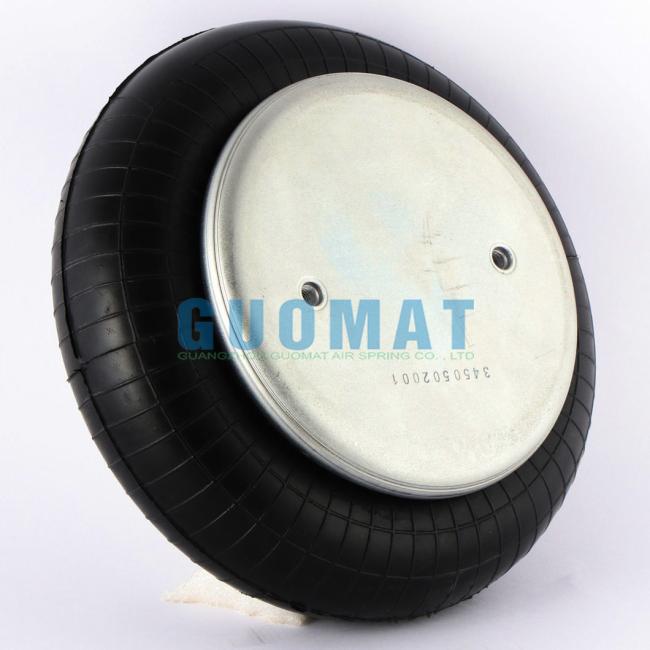

Suspension Air Spring FS200-10 Contitech Air Actuator For Pneumatic Lift Air Shock
Suspension Air Spring FS200-10 Contitech Air Actuator For Pneumatic Lift Air Shock
Product Information
| Top Cover Plate Diameter | 161 mm |
| Screw Center Distance of Top Cover Plate | 89 mm |
| Bottom Cover Plate Diameter | 161 mm |
| Screw Center Distance of Bottom Cover Plate | 89 mm |
| Top Cover Plate Screw(Nut) Tooth | 2×M8 |
| Bottom Cover Plate Screw(Nut) Tooth | 2×M8 |
| Gas Hole | G 1/4 |
| Rubber Bellow Max Dia | 250 mm |
| Minimum Height | 51 mm |
| Maximum Height | 140 mm |
| Total Storke | 89 mm |
OEM Numbers
- Contitech
FS 200-10, FS 200 10, FS200-10, FS20010, FS 20010, fs 200-10, fs 200 10, fs20010, fs 20010
- Firestone
W01-M58-6374, W01 M58 6374, W01M586374, WO1-M58-6374, WO1 M58 6374, WO1M586374
- Phoenix
SP 1B 12, SP1B 12, SP 1B12, SP1B12
- Dunlop(FR)
9''x1/4x1 s09101, 9'x1/4x1 s09101, 9x1/4x1 s09101, 9''x1/4x1 S09101, 9'x1/4x1 S09101, 9x1/4x1 S09101
- B-osch
822419004
- Festo
EB-250-85, EB 250-85, EB 250 85, EB-250 85, EB25085
- Norgren
PM/31091(8 1/4x1), PM31091(8 1/4x1), PM 31091(8 1/4x1)
Single Convoluted Air Spring Other Technical Data
| Item code |
Max. diameter (mm) |
Max. stroke (mm) |
Min. height (kN) |
Max. stroke (kN) |
Standard air inlet |
| Force with p = 8 bar | |||||
| FS 40-6 CI | 145 | 60 | 6.9 | 2.4 | G 1/8 |
| FS 50-5 CI | 150 | 44 | 9.0 | 2.2 | G 1/4 |
| FS 70-7 CI | 165 | 64 | 9.9 | 5.2 | G 1/4 |
| FS 100-10 CI | 210 | 94 | 14.7 | 1.6 | G 3/4 |
| FS 120-9 CI | 215 | 85 | 17.7 | 6.6 | G 3/4 |
| FS 120-10 CI | 231 | 99 | 19.5 | 4.6 | G 3/4 |
| FS 120-12 CI | 235 | 119 | 18.7 | 7.2 | G 3/4 |
| FS 200-10 CI | 250 | 89 | 23.8 | 9.1 | G 3/4 |
