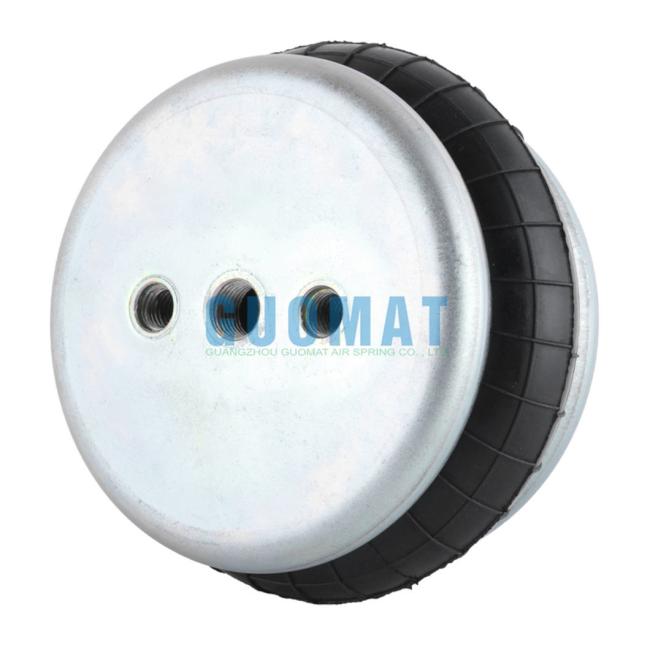

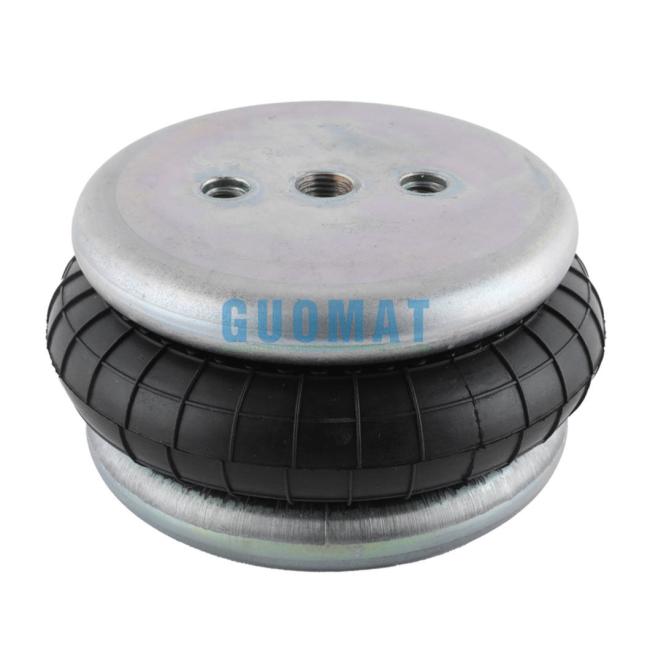

Air Spring Of Contitech FS50-5 Single Convoluted Rubber Bellow 1/4'' Air Inlet
Air Spring Of Contitech FS50-5 Single Convoluted Rubber Bellow 1/4'' Air Inlet
1B130070 Specification
|
Cover Plate Top Cover Plate Diameter: 108 mm Screw Center Distance of Top Cover Plate: 44.5 mm Bottom Cover Plate Diameter: 108 mm Screw Center Distance of Bottom Cover Plate: 44.5 mm |
|
Nut/Blind Nut Top Cover Plate Screw(Nut) Tooth: 2×M8 Bottom Cover Plate Screw(Nut) Tooth: 2×M8 |
|
Gas Hole/Air Inlet/Air Fitting Gas Hole: G 1/4 |
|
Rubber Bellow Rubber Bellow Max Dia: 150 mm Compressed Height: 51 mm Expanded Height: 95 mm |
1B130070 Technical Data
Force F [kN]
| Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.V[I] |
| Height H [mm] | 80 | 2 | 2.7 | 3.3 | 4 | 4.7 | 5.4 | 0.46 |
| 70 | 2.6 | 3.4 | 4.3 | 5.1 | 6 | 6.8 | 0.4 | |
| 60 | 3.1 | 4 | 5 | 6 | 7 | 8 | 0.3 |
Single Convoluted Rubber Bellow Other Technical Data
| Item code |
Max. diameter (mm) |
Max. stroke (mm) |
Min. height (kN) |
Max. stroke (kN) |
Standard air inlet |
| Force with p = 8 bar | |||||
| FS 40-6 CI | 145 | 60 | 6.9 | 2.4 | G 1/8 |
| FS 50-5 CI | 150 | 44 | 9.0 | 2.2 | G 1/4 |
| FS 70-7 CI | 165 | 64 | 9.9 | 5.2 | G 1/4 |
| FS 100-10 CI | 210 | 94 | 14.7 | 1.6 | G 3/4 |
| FS 120-9 CI | 215 | 85 | 17.7 | 6.6 | G 3/4 |
| FS 120-10 CI | 231 | 99 | 19.5 | 4.6 | G 3/4 |
| FS 120-12 CI | 235 | 119 | 18.7 | 7.2 | G 3/4 |
| FS 200-10 CI | 250 | 89 | 23.8 | 9.1 | G 3/4 |
1B130070 Applications
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
- The products features low cost, wide use and easy operation.
- It achieves long service life, and requires no maintenance and lubrication.
- This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
- It comes with no friction and soft medium.

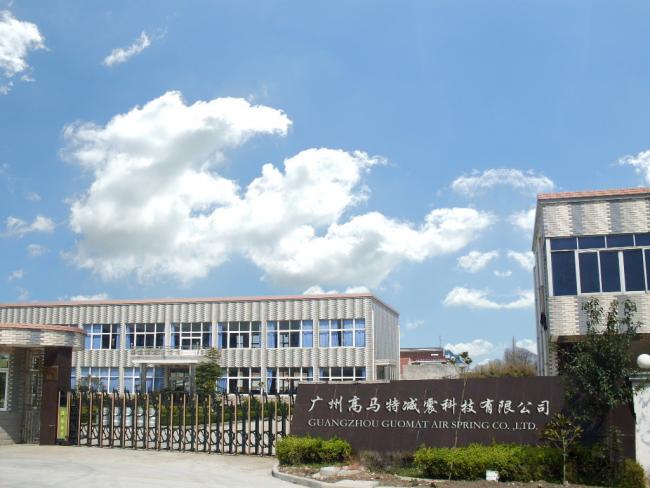

Company Profile

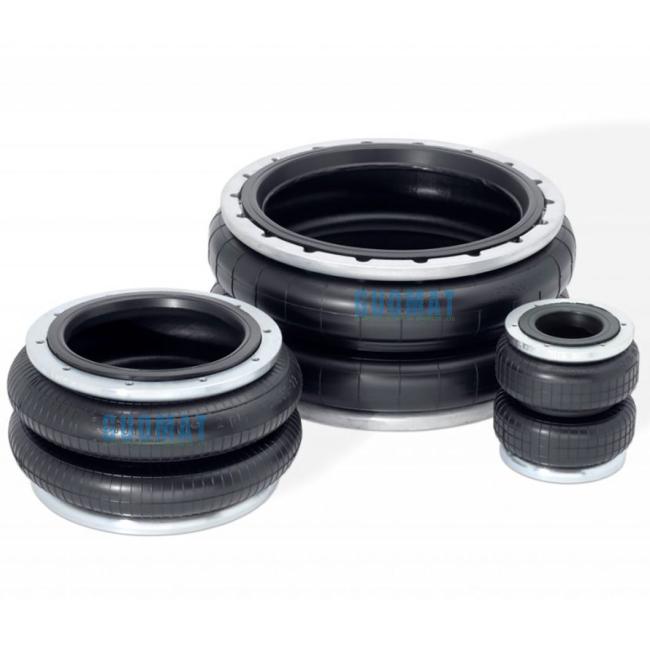

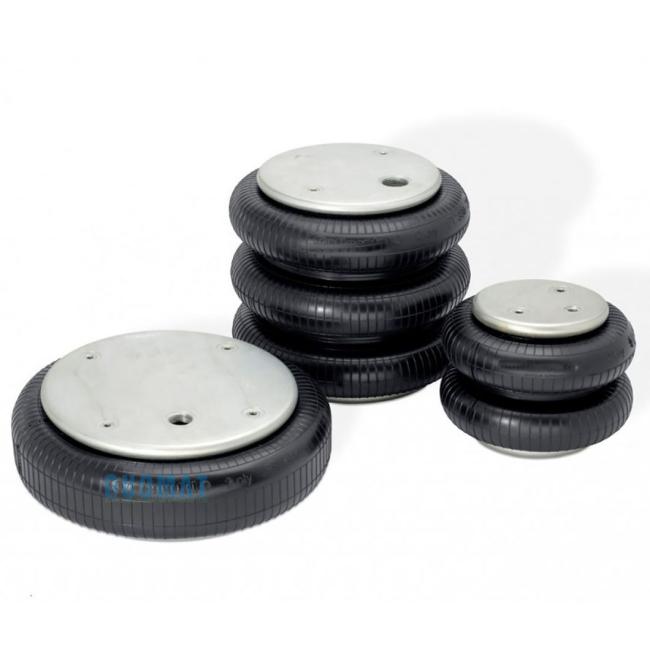

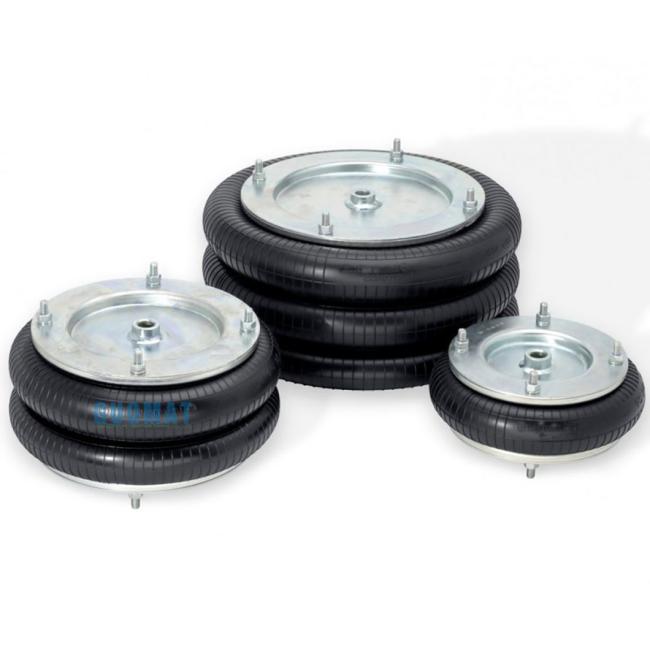

The Real Pictures of Air Spring
