Guomat Air Bag Replaces Phoenix SP 1 B 07 Suspension Air Spring For Reduce Shock
Guomat Air Bag Replaces Phoenix SP 1 B 07 Suspension Air Spring For Reduce Shock

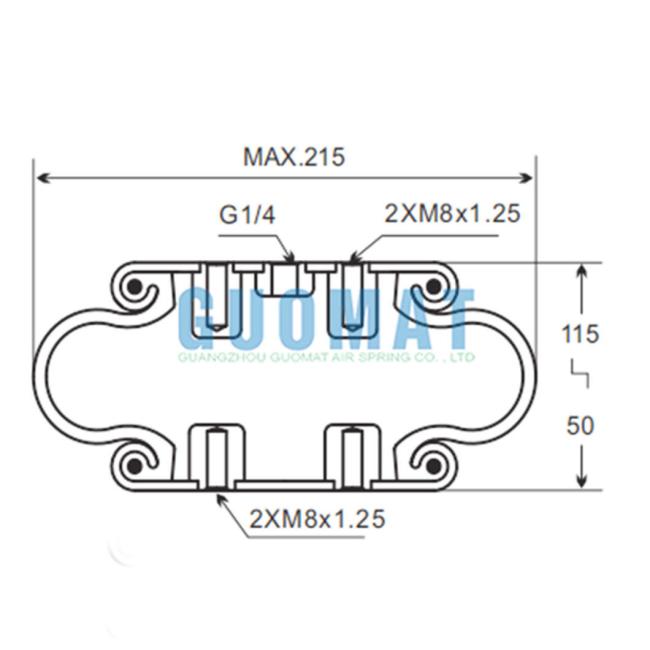

1B7070 Specification
| Cover Plate Top Cover Plate Diameter: 105 mm Screw Center Distance of Top Cover Plate: 44.5 mm Bottom Cover Plate Diameter: 105 mm Screw Center Distance of Bottom Cover Plate: 44.5 mm |
| Nut/Blind Nut Top Cover Plate Screw(Nut) Tooth: 2×M8×1.25 Bottom Cover Plate Screw(Nut) Tooth: 2×M8×1.25 |
| Gas Hole/Air Inlet/Air Fitting Gas Hole: G 1/4 |
| Rubber Bellow Rubber Bellow Max Dia: 165 mm Minimum Height: 50 mm Maximum Height: 115 mm Total Storke: 65 mm |
1B7070 Technical Data
Force [kN]
| Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 |
| Height H [mm] | 100 | 2.2 | 3.1 | 4.0 | 4.8 | 5.7 | 6.6 |
| 90 | 2.7 | 3.6 | 4.6 | 5.6 | 6.5 | 7.5 | |
| 80 | 3.1 | 4.1 | 5.1 | 6.2 | 7.3 | 8.3 | |
| 70 | 3.4 | 4.5 | 5.6 | 6.7 | 7.9 | 9.0 | |
| 60 | 3.6 | 4.8 | 6.0 | 7.2 | 8.4 | 9.5 |
Cross References
- Firestone
W01-M58-6165, W01 M58 6165, W01M586165, WO1-M58-6165, WO1 M58 6165, WO1M586165
W01-358-6166, W01 358 6166, W013586166, WO1-358-6166, WO1 358 6166, WO13586166,
- Contitech
FS 120-9, FS 120 9, FS120-9, FS120 9, FS 1209, FS1209
- Dunlop
8''×1 S08101, 8'×1 S08101, 8×1 S08101
8''×1 S08100, 8'×1 S08100, 8×1 S08100
- Bosch
822419003, 822419008
- Norgren
PM/3108(8×1), PM3108(8×1), PM 3108(8×1)
- Weforma
WBE 300-E1, WBE 300 E1, WBE 300E1, WBE300-E1, WBE300 E1, WBE300E1
WBE 300-E2, WBE 300 E2, WBE 300E2, WBE300-E2, WBE300 E2, WBE300E2
- Airtech
140293, 111003, 1B-190FB,1B 190FB, 1B190FB
- Megatech
1S120-9 3/4 M8, 1S120 9 3/4 M8, 1S1209 3/4 M8
Applications
Rubber actuators, compared with traditional products (rigid actuators, spring...) offer numerous advantages such as
- Flexibility (no angle or alignment problem)
- Compactness
- Power / price ratio
- No maintenance or lubrication required
- Durability
- Reliability
- Resistance to aggressive or hot conditions
