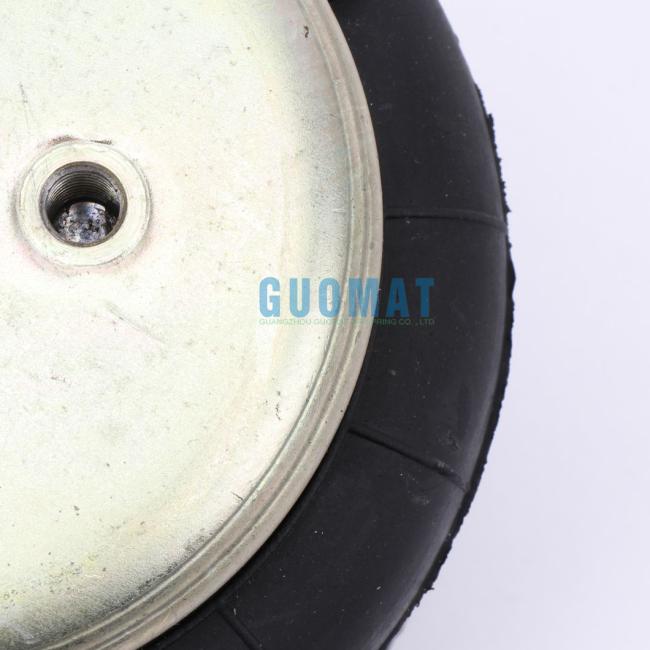

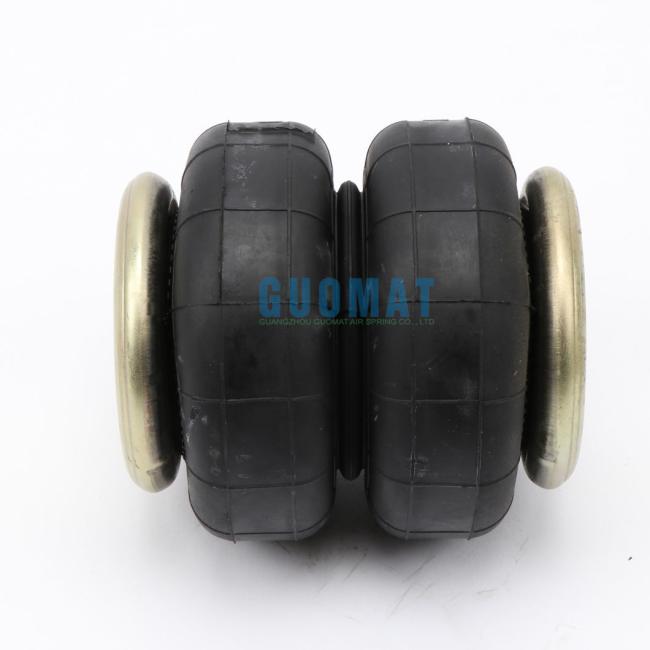

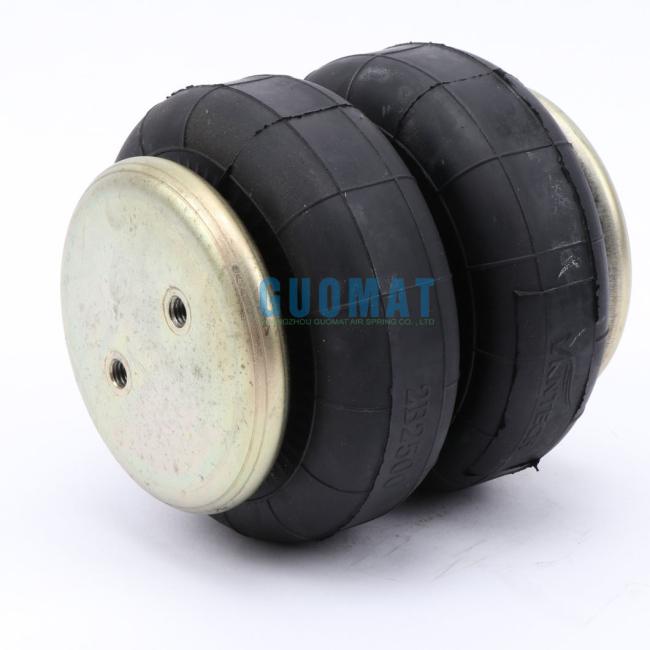

W01-358-6955 Firestone Air Spring Suspension Air Bags Double Convoluted With 3/8-16 Blind Nuts
W01-358-6955 Fire stone Air Spring Suspension Air Bags Double Convoluted With 3/8-16 Blind Nuts
Description Assembly Order No.
Blind nuts, 1/4 NPT:
GUOMAT 2B2500
Fire stone Air Spring WO1-358-6955 /
Fire stone Air Spring W01-358-6955 /
Fire stone Air Spring W013586955
Blind nuts, 3/4 NPT:
Fire stone Air Spring WO1-358-6956 /
Fire stone Air Spring W01-358-6956 /
Fire stone Air Spring W013586956
Rubber bellows only:
Fire stone Air Spring WO1-358-0048 /
Fire stone Air Spring W01-358-0048 /
Fire stone Air Spring W013580048
Ply Socket head aluminum bead:WO1-358-6833
Assembly weight 3.9 lbs.
Force to collapse to minimum height (@ 0 PSIG) 50 lbs.
GUOMAT 2B2500 Specifications and Detail Technical Parameters
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16
Screw Center Distance of Top Cover Plate : 44 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16
Screw Center Distance of Bottom Cover Plate : 44 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Cover Plate
Top Cover Plate Diameter (Width): 111 mm
Bottom Cover Plate Diameter (Width): 111 mm
Rubber Bellows
Rubber Bellows Natural Diameter : 146 mm
Rubber Bellows MAX Diameter : 165 mm
Installation Space Diameter : 180 mm
Rubber Bellows Natural Height : 175 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
|
Dynamic Characteristics at 6.0 in. Design Height (Required for Airmount isolator design only) |
||||
| Volume @ 100 PSIG = 100 in3 | Natural Frequency | |||
| Gage Pressure (PSIG) | Load (lbs.) | Spring Rate (lbs./ in.) | CPM | HZ |
| 40 | 566 | 309 | 139 | 2.32 |
| 60 | 871 | 432 | 132 | 2.21 |
| 80 | 1,194 | 565 | 129 | 2.16 |
| 100 | 1,524 | 681 | 126 | 2.10 |
Force Table
| Assembly Height(in.) | Volume@100 PSIG(in3) | Pounds Force | ||||
| @20 PSIG | @40 PSIG | @60 PSIG | @80 PSIG | @100 PSIG | ||
| 7.0 | 114 | 188 | 417 | 661 | 921 | 1198 |
| 6.0 | 100 | 270 | 566 | 871 | 1194 | 1524 |
| 5.0 | 82 | 331 | 686 | 1041 | 1414 | 1786 |
| 4.0 | 62 | 389 | 729 | 1197 | 1612 | 2039 |
Why use an Airstroke actuator (rather than air or hydraulic cylinder)for actuation?
LOW COST
Generally, initial cost is one-half or less than conventional pneumatic or hydraulic cylinders of the same force capabilities. This initial cost advantage is many times greater in
the larger sizes.
WIDE SIZE RANGE
Airstroke actuators are available in sizes ranging from 2.2 inches to 37 inches in diameter.
The force capability is 100,000 pounds. Strokes of up to 14 inches are possible.
DURABLE FOR LONG LIFE
Airstroke actuators are a further application of Firestone’s time proven Airide springs for
truck and bus suspensions. The long life and durability necessary for millions of miles of
heavy duty suspension use under adverse environmental conditions are also important
factors in machine design.
